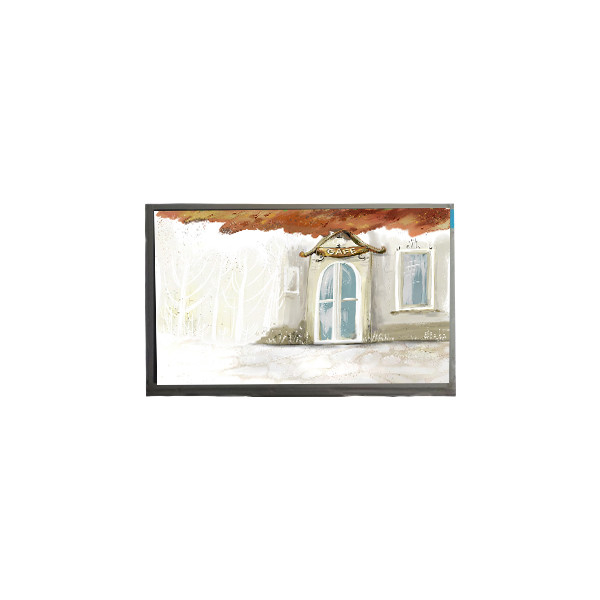

M133NW4J R0 13.3 inch 1920*1200 TFT LCD Screen Display
Product Details:
| Place of Origin: | China |
| Brand Name: | IVO |
| Model Number: | M133NW4J R0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | M133NW4J R0 | Diagonal Size: | 13.3" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1920(RGB)×1200, WUXGA 170PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 286.042(W)×178.776(H) Mm |
| Designed For: | Laptop | Color Depth: | 16.7M 100%sRGB |
Product Description
M133NW4J R0 13.3 inch 1920*1200 TFT LCD Screen Display
M133NW4J R0 LCD Panel Product details :
| Brand | IVO |
| Model P/N | M133NW4J R0 |
| Diagonal Size | 13.3" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1200, WUXGA 170PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 286.042(W)×178.776(H) mm |
| Bezel Opening | - |
| Outline Size | 291.08(W)×195.4(H)×3.1(D) mm |
| Surface | Antiglare |
| Brightness | 300 cd/m² (Typ.) |
| Contrast Ratio | 1200:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Display Mode | IPS, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 30 (Typ.)(Tr+Td) |
| Display Colors | 16.7M 100%sRGB |
| Lamp Type | WLED, 15K hours, With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Shape Style | Slim (PCBA Flat, T≤3.2mm) |
| Application | Laptop |
| Signal Interface | eDP (2 Lanes), 30 pinsConnector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
M133NW4J R0 LCD Panel Attention:
Before placing an order for purchase, the buyer must confirm the screen model needs.
If you are not sure about the model of the screen, please contact us at the first time.
We will distinguish and prevent you from buying the wrong screen.
If the buyer's mistake let screen make the screen unusable, all the freight incurred shall be borne by the buyer.
M133NW4J R0 LCD Panel Shipping and Package :
M133NW4J R0 LCD Panel Shipping Information :
Shipping Agency: We utilize a reputable and efficient shipping agency known for its reliability and professionalism. Our goal is to ensure fast and secure delivery of your order.
Delivery Time: Typically, our standard delivery time ranges from 3 to 7 business days for shipments worldwide. This timeframe is subject to regional variations and potential delays beyond our control.
Additional Charges: Please note that import duties, taxes, and other related charges are not included in the item price or shipping charges. These charges, if applicable, are the responsibility of the buyer and may be assessed upon delivery by customs authorities in the destination country.
M133NW4J R0 LCD Panel Return Note :
Model Confirmation: When placing an order for our LCD screen, please ensure that the model number matches exactly with the one you intend to replace. This is crucial to avoid purchasing the wrong product that may not function properly in your device.
Installation Caution: Before confirming that the screen does not work properly, refrain from using adhesive to attach our screen to your equipment. If adhesive is applied and the screen is installed, we regret that we cannot accept returns or provide refunds. This precaution is essential to ensure that our products remain in their original condition for potential troubleshooting or returns.
M133NW4J R0 LCD Panel FAQ :
Q: How can I trace my order of M133NW4J R0 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can you give me a discount if I need a large quantity of M133NW4J R0 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can I pay my order of M133NW4J R0 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long is the warranty ?
A: We offer 90days warranty .
