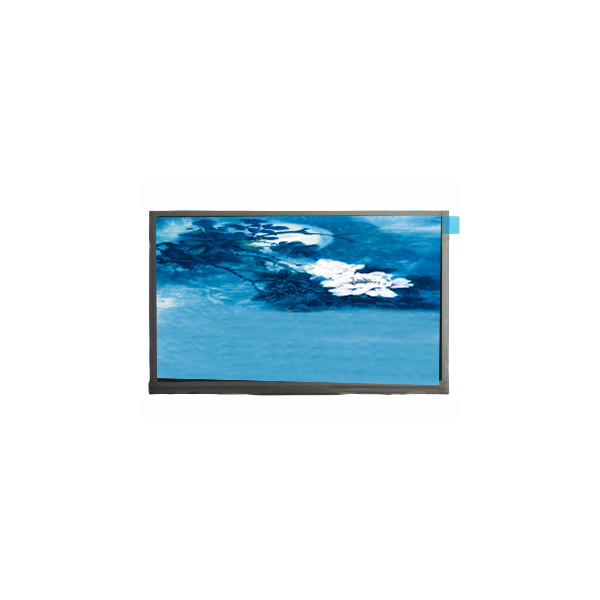

P102AWF2 R5 10.3 inch 1920*720 TFT LCD Display Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | IVO |
| Model Number: | P102AWF2 R5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | P102AWF2 R5 | Diagonal Size: | 10.3" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL, FOB | Resolution: | 1920(RGB)×720 200PPI |
| Pixel Format: | RGB Vertical Stripe | Application: | Automotive Display |
| View Direction: | Symmetry | Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) |
| Support Color: | 16.7M 68% NTSC | Designed For: | Automotive Display |
Product Description
P102AWF2 R5 10.3 inch 1920*720 TFT LCD Display Panel
P102AWF2 R5 LCD Panel Product details :
| Brand | IVO |
| Model P/N | P102AWF2 R5 |
| Diagonal Size | 10.3" |
| Panel Type | a-Si TFT-LCD, CELL, FOB |
| Resolution | 1920(RGB)×720 200PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 243.648(W)×91.368(H) mm |
| Bezel Opening | - |
| Outline Dim. | 252.2(W)×103.2(H)×1.24(D) mm |
| Luminance | 0 cd/m² |
| View Direction | Symmetry |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Plate Thickness | 0.50+0.50 mm |
| Support Color | 16.7M 68% NTSC |
| Weight | TBD |
| Frame Rate | 55Hz |
| Treatment | Antiglare, Hard coating (3H) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Response Time | 20 (Typ.)(Tr+Td) |
| Operating Mode | IPS, Normally Black, Transmissive |
| Transmittance | 3.5% (Typ.)(with Polarizer) |
| Light Source | No B/L , W/O Driver |
| Designed For | Automotive Display |
| Touch Panel | Without |
| D-IC Detail | COG Built-in 3 source chips |
| Interface Type | LVDS (1 ch, 8-bit)60 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: -40 ~ 85 °C; Storage Temperature: -40 ~ 90 °C |
P102AWF2 R5 LCD Panel Attention:
Before placing an order for purchase, the buyer must confirm the screen model needs.
If you are not sure about the model of the screen, please contact us at the first time.
We will distinguish and prevent you from buying the wrong screen.
If the buyer's mistake let screen make the screen unusable, all the freight incurred shall be borne by the buyer.
P102AWF2 R5 LCD Panel Shipping and Package :
P102AWF2 R5 LCD Panel Shipping Information :
Shipping Agency: We utilize a reputable and efficient shipping agency known for its reliability and professionalism. Our goal is to ensure fast and secure delivery of your order.
Delivery Time: Typically, our standard delivery time ranges from 3 to 7 business days for shipments worldwide. This timeframe is subject to regional variations and potential delays beyond our control.
Additional Charges: Please note that import duties, taxes, and other related charges are not included in the item price or shipping charges. These charges, if applicable, are the responsibility of the buyer and may be assessed upon delivery by customs authorities in the destination country.
P102AWF2 R5 LCD Panel Return Note :
Model Confirmation: When placing an order for our LCD screen, please ensure that the model number matches exactly with the one you intend to replace. This is crucial to avoid purchasing the wrong product that may not function properly in your device.
Installation Caution: Before confirming that the screen does not work properly, refrain from using adhesive to attach our screen to your equipment. If adhesive is applied and the screen is installed, we regret that we cannot accept returns or provide refunds. This precaution is essential to ensure that our products remain in their original condition for potential troubleshooting or returns.
P102AWF2 R5 LCD Panel FAQ :
Q: How long is the warranty of P102AWF2 R5 ?
A: 90days warranty .
Q: Can you give me a discount if I need a large quantity of P102AWF2 R5 ?
A: Of course!If you make a large order, we will give you a discount.
Q: If I order P102AWF2 R5 now,when will you ship the goods ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Do you accept sample orders for P102AWF2 R5 ?
A: Of course!sample order is welcome !
