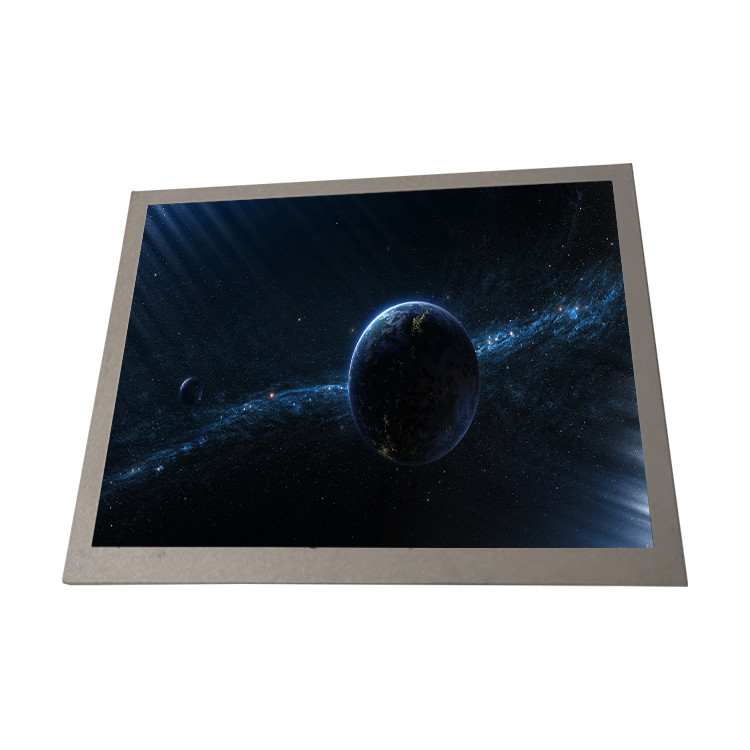

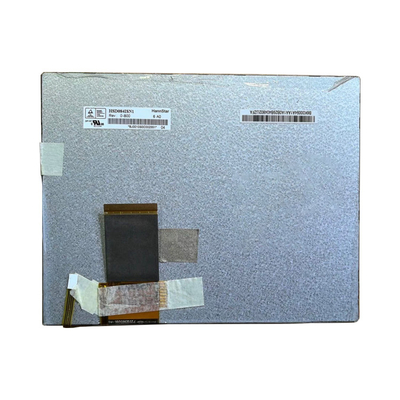

8.4 inch 800*600 HSD084ISN1-B00 LCD screen panel LCD display Module
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD084ISN1-B00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | HSD084ISN1-B00 | Diagonal Size: | 8.4" |
|---|---|---|---|
| Resolution: | 800(RGB)×600, SVGA 119PPI | Treatment: | Antiglare, Hard Coating (3H) |
| Luminance: | 300 Cd/m² (Typ.) | Contrast Ratio: | 600:1 (Typ.) (TM) |
| View Direction: | 3 O'clock | Response Time: | 2/6 (Typ.)(Tr/Td) |
| Viewing Angle: | 60/70/75/75 (Typ.)(CR≥10) | Operating Mode: | TN, Normally White, Transmissive |
Product Description
8.4 inch 800*600 HSD084ISN1-B00 LCD screen panel LCD display Module
HSD084ISN1-B00 LCD Panel Product details :
| Brand | HannStar |
| Model P/N | HSD084ISN1-B00 |
| Diagonal Size | 8.4" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×600, SVGA 119PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 170.4(W)×127.8(H) mm |
| Bezel Opening | 173.4(W)×130.8(H) mm |
| Outline Dim. | 189.75(W)×149.4(H)×3.5(D) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 300 cd/m² (Typ.) |
| Contrast Ratio | 600:1 (Typ.) (TM) |
| View Direction | 3 o'clock |
| Response Time | 2/6 (Typ.)(Tr/Td) |
| Viewing Angle | 75/75/60/70 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 16.7M 63%NTSC |
| Light Source | WLED [3S11P], 20K hours, W/O Driver |
| Weight | 200g (Typ.) |
| Designed For | Industrial,Digital Photo Frame,Portable DVD Player |
| Frame Rate | - |
| Touch Panel | Without |
| Interface Type | Parallel RGB (1 ch, 8-bit), 60 pinsFPC |
| Power Supply | 3.3/10/15/-7V (Typ.)(VCC/AVDD/VGH/VGL) |
| Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| 8.4 inch 800*600 HSD084ISN1-B00 LCD screen panel LCD display Module | |
HSD084ISN1-B00 LCD Panel Shipping and Package :
HSD084ISN1-B00 LCD Screen - Packing Information:
Outer Packing:
The outer packing consists of a strong, durable carton. This outer layer is designed to withstand the rigors of shipping, providing a sturdy barrier against potential impacts and rough handling during transit.
Inner Packing:
Inside the carton, the LCD screen is protected by high-quality foam padding. This foam is specifically chosen for its shock-absorbing properties, ensuring that the screen is cushioned and held securely in place. This minimizes movement and reduces the risk of damage.
Our packing method is carefully designed to be strong and safe enough to prevent the screen from getting broken during transportation. We are committed to delivering your product in excellent condition, and our packing standards reflect this commitment.
HSD084ISN1-B00 LCD Screen - Shipping Information:
Full Name and Detailed Address:
When placing your order, it is crucial to provide the full name of the consignee. This includes first and last names as they appear on official documents. Additionally, ensure that the shipping address is complete and detailed, including street number, street name, city, state/province, postal code, and country. This will help avoid any delivery issues or delays.
Address Confirmation:
We will ship your order to the address provided at the time of purchase. If you need to change the shipping address after placing your order, please contact us immediately. Any address changes must be communicated before the item is dispatched to ensure the update can be made. We cannot guarantee address changes if the request is made too late in the process.
Customs and Import Duties:
Please be aware that the buyer is responsible for all additional fees related to customs clearance in your country. This includes, but is not limited to, customs fees, brokerage fees, customs duties, and taxes. These charges are not included in the item price or shipping cost and must be paid by the buyer upon receipt of the shipment.
It is advisable to check with your country's customs office to determine what these additional costs will be prior to purchasing. This will help you anticipate any extra expenses that may arise.
HSD084ISN1-B00 LCD Screen - Warranty Information:
12-Month Warranty:
We offer a 12-month warranty from the shipping date for the HSD084ISN1-B00 LCD screen. This warranty covers any quality-related issues that may arise, regardless of the nature of the problem. During this period, if your screen exhibits any defects or malfunctions, you are entitled to a repair or replacement.
Customer Support and Problem Resolution:
We encourage you to keep in touch with us throughout the warranty period. If you encounter any issues with your LCD screen, please contact us immediately. Our customer support team is committed to assisting you and will work diligently to resolve any problems as quickly as possible. Your satisfaction is our priority, and we aim to provide prompt and effective solutions to any concerns you may have.
For any warranty claims or support inquiries, please provide your order details and a description of the issue. We appreciate your cooperation and look forward to assisting you. Thank you for choosing our product, and we are here to support you throughout the warranty period and beyond.
HSD084ISN1-B00 LCD Panel FAQ :
Q: Can you give me a discount if I need a large quantity of HSD084ISN1-B00 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders of HSD084ISN1-B00 ?
A: Of course!sample order is welcome !
Q: How can I trace my order of HSD084ISN1-B00 ?
A: we will give you tracking number then you can trace your order from website.
Q: How to make payment of HSD084ISN1-B00 ?
A: We accept T/T , Paypal , western union .
