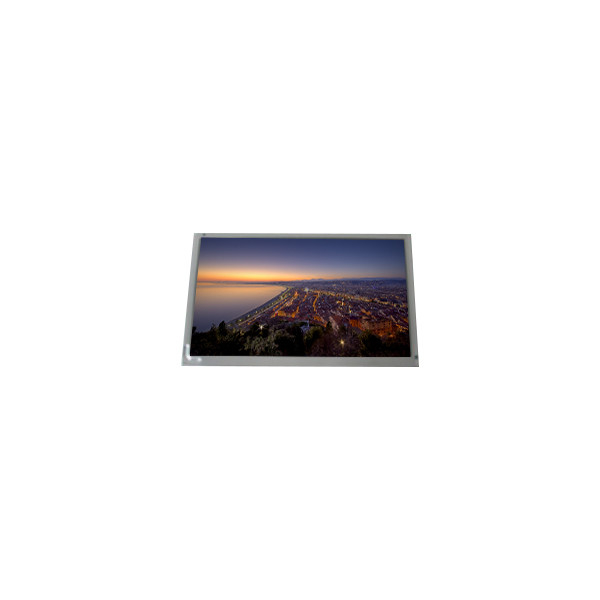

7.0 inch 480*234 LQ7BW566 60Hz LCD Screen Display Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | Sharp |
| Model Number: | LQ7BW566 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LQ7BW566 | Diagonal Size: | 7.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 480(RGB)×234 75PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 155.52(W)×87.75(H) Mm |
| Designed For: | Automotive Display | Display Mode: | TN, Normally White, Transmissive |
Product Description
7.0 inch 480*234 LQ7BW566 60Hz LCD Screen Display Panel
LQ7BW566 LCD Panel Product details :
| Brand | Sharp |
| Model P/N | LQ7BW566 |
| Diagonal Size | 7.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 480(RGB)×234 75PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 155.52(W)×87.75(H) mm |
| Bezel Opening | - |
| Outline Dim. | 173(W)×106(H)×15.2(D) mm |
| Luminance | 300 cd/m² (Typ.) |
| View Direction | 6 o'clock |
| Viewing Angle | 65/65/40/65 (Typ.)(CR≥10) |
| Support Color | Full color |
| Weight | 320±20g |
| Frame Rate | 60Hz |
| Treatment | Antiglare, Antireflection |
| Contrast Ratio | 60:1 (Min.) (TM) |
| Response Time | 30/50 (Typ.)(Tr/Td) |
| Operating Mode | TN, Normally White, Transmissive |
| Light Source | CCFL [2 pcs] , 10K hours , W/O Driver |
| Designed For | Automotive Display |
| Touch Panel | Without |
| Interface Type | Analog RGB + Composite Video (NTSC/PAL)24 pins Connector |
| Power Supply | 5.3/13/-16V (Typ.)(VSH/VGH/VGL) |
| Environment | Operating Temperature: -30 ~ 85 °C; Storage Temperature: -30 ~ 85 °C |
| 7.0 inch 480*234 LQ7BW566 60Hz LCD Screen Display Panel | |
LQ7BW566 LCD Panel Payment Instructions :
Accepted Payment Methods:
We prioritize the safety and convenience of our customers by accepting payments through Escrow, which allows you to pay securely online using your Credit Card.
Payment Timeline:
To ensure the timely processing and shipping of your order, please make your payment within 3 days of placing the order. Prompt payment is appreciated and helps us maintain efficient service. If you encounter any issues or delays with your payment, please don't hesitate to contact us immediately. We are here to assist you and resolve any problems to ensure a smooth transaction.
LQ7BW566 LCD Panel Shipping and Package :
LQ7BW566 LCD Panel Shipment Information :
Shipping Address:
We will ship your order to the address provided at the time of payment. Please ensure the address you entered is correct and up-to-date to avoid any delivery issues.
Estimated Delivery Time:
Typically, your order will arrive within 15-35 days. For orders shipped to Brazil, the estimated delivery time is 20-40 days. Some countries or regions may experience longer shipping times.
Delayed Shipments:
If your parcel has not arrived within the expected timeframe, please contact us first before taking any further action. We are here to assist you and will work to provide a satisfactory resolution.
Dispute Policy:
Please refrain from opening a dispute within the first 60 days after placing your order. If your order has not arrived after 60 days, you may contact us to request a refund or a resend of the product.
Customs Duty and Import Tax:
We are not responsible for any customs duties or import taxes that may be applicable in your country. Please check your local customs regulations for more information.
Important Instructions for Receiving and Handling Your LQ7BW566 LCD Panel :
Inspecting the Package Upon Arrival:
When you receive the package, carefully inspect its condition.
If you notice any obvious damage, dents, or deformities, prepare to record a video as you open the package. This evidence is crucial for any potential claims.
Reporting Damaged Goods:
If you find that the LCD panel is damaged, immediately take detailed images and videos showing the damage.
Send these visuals to us to document the issue.
Our team will handle shipping-related damages but not those caused during installation. To secure your rights, provide the requested evidence and initiate a dispute for a refund if necessary.
Testing Before Installation:
After confirming the screen is undamaged, thoroughly test its functionality before proceeding with installation.
Do not attempt to install the screen yourself unless you are a professional. We recommend that installation be carried out by qualified technical personnel. We are not responsible for damages resulting from unprofessional installation.
Product Authenticity and Labels:
Each product from our store includes a unique anti-tear label.
Do not remove this label, as it verifies the product's authenticity and origin from our store.
Documenting Product Issues:
If you encounter any issues with the product, ensure that your video proof includes the labels as evidence.
Following these guidelines will help ensure a smooth process and protect your purchase rights. Thank you for your cooperation.
LQ7BW566 LCD Panel FAQ :
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
Q: What does "We may ship a 100% compatible part number for your screen" mean?
A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.
Q: How long is the warranty of LQ7BW566 ?
A: NEW Product warranty is 90 days.
Q: How to order lcd panel LQ7BW566 ?
A: Tell us the quantity you need ,Then we will make a PI for you to confirm the order details ,When we confirmed everything, you can arrange the payment ,After we received the payment, we will ship goods to you within 1-2day.
