LCD Screen Display Panel

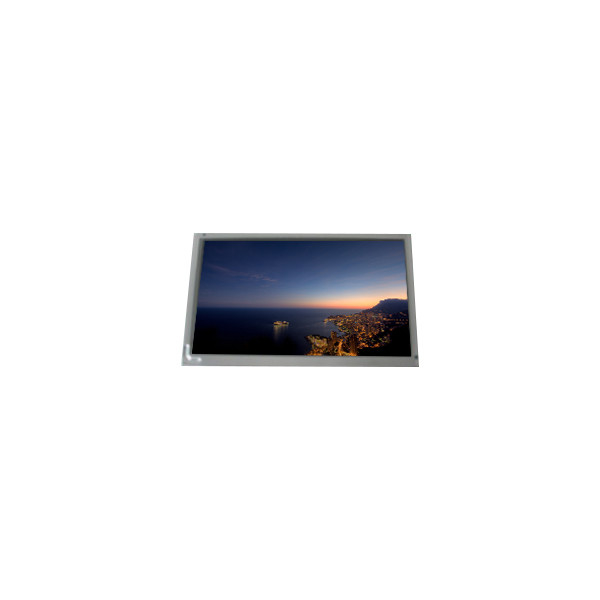

Original LQ6NC01 240*240 5.7 inch LCD Screen module

All Category

Floor Standing Digital Signage

Original LQ6NC01 240*240 5.7 inch LCD Screen module

Brand Name:	Sharp
Model Number:	LQ6NC01
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LQ6NC01

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

240(RGB)×240 60PPI

Pixel Format:

RGB Delta

Active Area:

113.8(W)×87.6(H) Mm

Lamp Type:

2 Pcs CCFL, Without Driver

Touch Screen:

Without

Supply Ability:

100000 Unit/Units per Month

Product Description

Original LQ6NC01 240*240 5.7 inch LCD Screen module

LQ6NC01 LCD Panel Product details :

Brand	Sharp
Model P/N	LQ6NC01
Diagonal Size	5.7"
Panel Type	a-Si TFT-LCD, LCM
Resolution	240(RGB)×240 60PPI
Pixel Format	RGB Delta
Active Area	113.8(W)×87.6(H) mm
Bezel Opening	-
Outline Size	149.4(W)×117(H) mm
Brightness	120 cd/m² (Typ.)
Viewing Angle	45/45/10/30 (Typ.)(CR≥10)
Best View on	6 o'clock
Display Colors	Full color
Frequency	-
Weight	320±10g
Surface	-
Contrast Ratio	-
Display Mode	TN, Normally White, Transmissive
Response Time	30/50 (Typ.)(Tr/Td)
Lamp Type	2 pcs CCFL, Without Driver
Touch Screen	Without
Application
Signal Interface	Analog RGB + Composite Video (NTSC), 20 pinsConnector
Input Voltage	5.0V (Typ.)
Environment	Operating Temp.: 0 ~ 60 °C ;Storage Temp.: -25 ~ 60 °C
Original LQ6NC01 240*240 5.7 inch LCD Screen module

LQ6NC01 LCD Panel Payment Instructions :

Accepted Payment Methods:

We prioritize the safety and convenience of our customers by accepting payments through Escrow, which allows you to pay securely online using your Credit Card.

Payment Timeline:

To ensure the timely processing and shipping of your order, please make your payment within 3 days of placing the order. Prompt payment is appreciated and helps us maintain efficient service. If you encounter any issues or delays with your payment, please don't hesitate to contact us immediately. We are here to assist you and resolve any problems to ensure a smooth transaction.

LQ6NC01 LCD Panel Shipping and Package :

LQ6NC01 LCD Panel Shipment Information :

Shipping Address:

We will ship your order to the address provided at the time of payment. Please ensure the address you entered is correct and up-to-date to avoid any delivery issues.

Estimated Delivery Time:

Typically, your order will arrive within 15-35 days. For orders shipped to Brazil, the estimated delivery time is 20-40 days. Some countries or regions may experience longer shipping times.

Delayed Shipments:

If your parcel has not arrived within the expected timeframe, please contact us first before taking any further action. We are here to assist you and will work to provide a satisfactory resolution.

Dispute Policy:

Please refrain from opening a dispute within the first 60 days after placing your order. If your order has not arrived after 60 days, you may contact us to request a refund or a resend of the product.

Customs Duty and Import Tax:

We are not responsible for any customs duties or import taxes that may be applicable in your country. Please check your local customs regulations for more information.

Important Instructions for Receiving and Handling Your LQ6NC01 LCD Panel :

Inspecting the Package Upon Arrival:

When you receive the package, carefully inspect its condition.

If you notice any obvious damage, dents, or deformities, prepare to record a video as you open the package. This evidence is crucial for any potential claims.

Reporting Damaged Goods:

If you find that the LCD panel is damaged, immediately take detailed images and videos showing the damage.

Send these visuals to us to document the issue.

Our team will handle shipping-related damages but not those caused during installation. To secure your rights, provide the requested evidence and initiate a dispute for a refund if necessary.

Testing Before Installation:

After confirming the screen is undamaged, thoroughly test its functionality before proceeding with installation.

Do not attempt to install the screen yourself unless you are a professional. We recommend that installation be carried out by qualified technical personnel. We are not responsible for damages resulting from unprofessional installation.

Product Authenticity and Labels:

Each product from our store includes a unique anti-tear label.

Do not remove this label, as it verifies the product's authenticity and origin from our store.

Documenting Product Issues:

If you encounter any issues with the product, ensure that your video proof includes the labels as evidence.

Following these guidelines will help ensure a smooth process and protect your purchase rights. Thank you for your cooperation.

LQ6NC01 LCD Panel FAQ :

Q: What does "We may ship a 100% compatible part number for your screen" mean?

A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.

Q: How long is the warranty of LQ6NC01 ?

A: NEW Product warranty is 90 days.

Q: How to order lcd panel LQ6NC01 ?

A: Tell us the quantity you need ,Then we will make a PI for you to confirm the order details ,When we confirmed everything, you can arrange the payment ,After we received the payment, we will ship goods to you within 1-2day.

Q: How to do if I can't find the screen that I require in your listings?

A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
