LCD Screen Display Panel

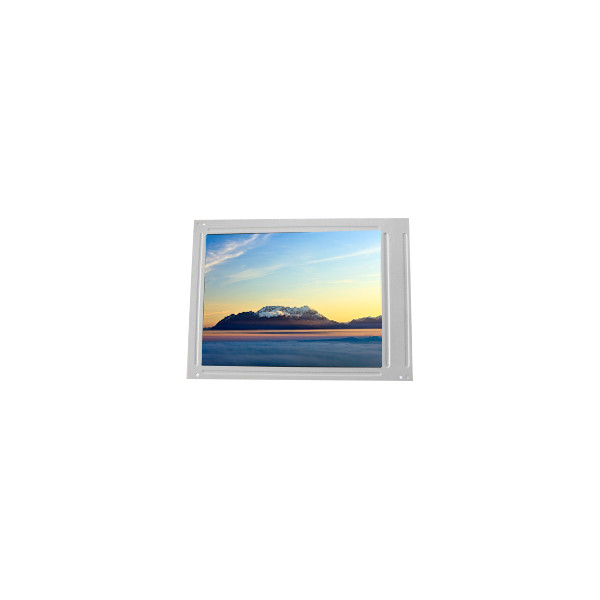

LQ6BW50M 400*234 5.8 inch 320 cd/m2 LCD Screen

All Category

Floor Standing Digital Signage

LQ6BW50M 400*234 5.8 inch 320 cd/m2 LCD Screen

Brand Name:	Sharp
Model Number:	LQ6BW50M
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LQ6BW50M

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

400(RGB)×234 80PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

127.2(W)×71.8(H) Mm

Operating Mode:

TN, Normally White, Transmissive

Backlight:

Supply Ability:

100000 Unit/Units per Month

Product Description

LQ6BW50M 400*234 5.8 inch 320 cd/m2 LCD Screen

LQ6BW50M LCD Panel Product details :

Brand	Sharp
Model P/N	LQ6BW50M
Diagonal Size	5.8"
Panel Type	a-Si TFT-LCD, LCM
Resolution	400(RGB)×234 80PPI
Pixel Format	RGB Vertical Stripe
Active Area	127.2(W)×71.8(H) mm
Bezel Opening	-
Luminance	320 cd/m² (Typ.)
Contrast Ratio	60:1 (Min.) (TM)
View Direction	-
Response Time	60 (Max.)
Viewing Angle	60/60/60/35 (Min.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color
Light Source	CCFL
Weight	325g (Typ.)
Designed For
Frame Rate	-
Touch Panel	Without
Interface Type	Analog
Environment	Operating Temperature: -10 ~ 60 °C ; Storage Temperature: -30 ~ 85 °C
LQ6BW50M 400*234 5.8 inch 320 cd/m2 LCD Screen

LQ6BW50M LCD Panel Payment Instructions :

Accepted Payment Methods:

We prioritize the safety and convenience of our customers by accepting payments through Escrow, which allows you to pay securely online using your Credit Card.

Payment Timeline:

To ensure the timely processing and shipping of your order, please make your payment within 3 days of placing the order. Prompt payment is appreciated and helps us maintain efficient service. If you encounter any issues or delays with your payment, please don't hesitate to contact us immediately. We are here to assist you and resolve any problems to ensure a smooth transaction.

LQ6BW50M LCD Panel Shipping and Package :

LQ6BW50M LCD Panel Shipment Information :

Shipping Address:

We will ship your order to the address provided at the time of payment. Please ensure the address you entered is correct and up-to-date to avoid any delivery issues.

Estimated Delivery Time:

Typically, your order will arrive within 15-35 days. For orders shipped to Brazil, the estimated delivery time is 20-40 days. Some countries or regions may experience longer shipping times.

Delayed Shipments:

If your parcel has not arrived within the expected timeframe, please contact us first before taking any further action. We are here to assist you and will work to provide a satisfactory resolution.

Dispute Policy:

Please refrain from opening a dispute within the first 60 days after placing your order. If your order has not arrived after 60 days, you may contact us to request a refund or a resend of the product.

Customs Duty and Import Tax:

We are not responsible for any customs duties or import taxes that may be applicable in your country. Please check your local customs regulations for more information.

Important Instructions for Receiving and Handling Your LQ6BW50M LCD Panel :

Inspecting the Package Upon Arrival:

When you receive the package, carefully inspect its condition.

If you notice any obvious damage, dents, or deformities, prepare to record a video as you open the package. This evidence is crucial for any potential claims.

Reporting Damaged Goods:

If you find that the LCD panel is damaged, immediately take detailed images and videos showing the damage.

Send these visuals to us to document the issue.

Our team will handle shipping-related damages but not those caused during installation. To secure your rights, provide the requested evidence and initiate a dispute for a refund if necessary.

Testing Before Installation:

After confirming the screen is undamaged, thoroughly test its functionality before proceeding with installation.

Do not attempt to install the screen yourself unless you are a professional. We recommend that installation be carried out by qualified technical personnel. We are not responsible for damages resulting from unprofessional installation.

Product Authenticity and Labels:

Each product from our store includes a unique anti-tear label.

Do not remove this label, as it verifies the product's authenticity and origin from our store.

Documenting Product Issues:

If you encounter any issues with the product, ensure that your video proof includes the labels as evidence.

Following these guidelines will help ensure a smooth process and protect your purchase rights. Thank you for your cooperation.

LQ6BW50M LCD Panel FAQ :

Q: Are you manufactory or trade company?

A: Shenzhen YONG SHENG INNOVATIVE TECHNOLOGY Co, Ltd is a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.

Q: When will my order LQ6BW50M ship?

A: The order are shipped within 1-2 working days after received the payment.

Q:Can you declared low value for my order when shipping?

A:Yes, We can do it for you if you need.

Q: What happen if the lcd panel LQ6BW50M I received can't work ?

A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
