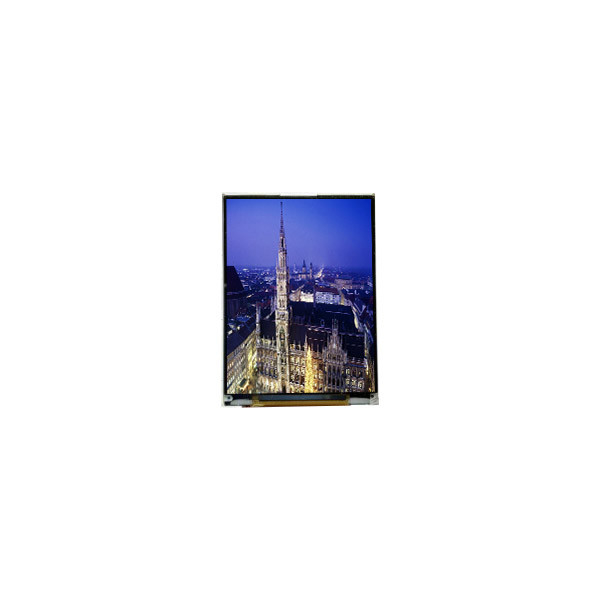

Original TPT0501044P 5.0 inch 720*1280 TFT-LCD Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | JDI |
| Model Number: | TPT0501044P |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TPT0501044P | Diagonal Size: | 5.0" |
|---|---|---|---|
| Panel Type: | LTPS TFT-LCD, CELL, Q-CUT (Full Cell) | Resolution: | 720(RGB)×1280, WXGA 294PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 62.1(W)×110.4(H) Mm |
| Viewing Angle: | 80/80/80/80 (Typ.)(CR≥10) | Operating Mode: | IPS, Normally Black, Transmissive |
| Display Colors: | 16.7M 98%sRGB | Application: | Mobile Phone |
Product Description
Original TPT0501044P 5.0 inch 720*1280 TFT-LCD Screen
TPT0501044P LCD Panel Product details :
| Brand | JDI |
| Model P/N | TPT0501044P |
| Diagonal Size | 5.0" |
| Panel Type | LTPS TFT-LCD, CELL, Q-CUT (Full Cell) |
| Resolution | 720(RGB)×1280, WXGA 294PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 62.1(W)×110.4(H) mm |
| Bezel Opening | - |
| Outline Size | 64.1(W)×115.68(H)×0.4(D) mm |
| Surface | - |
| Brightness | 0 cd/m² |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Display Mode | IPS, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 25 (Typ.)(Tr+Td) |
| Glass Depth | 0.20+0.20 mm |
| Transmissivity | 3.48% (Typ.)(with Polarizer) |
| Display Colors | 16.7M 98%sRGB |
| Lamp Type | No B/L |
| Frequency | 60Hz |
| Touch Screen | In-Cell Touch |
| Driver IC | COG Suggest TD4291 |
| Panel Weight | 8.60g (Typ.) |
| Application | Mobile Phone |
| Signal Interface | MIPI (4 data lanes) |
| Input Voltage | 1.8/2.5/3.3V (Typ.)(VDDI/VDDF/AVDD) |
| Environment | Operating Temp.: -20 ~ 60 °C ; Storage Temp.: -30 ~ 70 °C |
TPT0501044P LCD Panel Attention:
Before placing an order for purchase, the buyer must confirm the screen model needs.
If you are not sure about the model of the screen, please contact us at the first time.
We will distinguish and prevent you from buying the wrong screen.
If the buyer's mistake let screen make the screen unusable, all the freight incurred shall be borne by the buyer.
TPT0501044P LCD Panel Shipping and Package :
TPT0501044P LCD Panel Shipping Information :
Shipping Agency: We utilize a reputable and efficient shipping agency known for its reliability and professionalism. Our goal is to ensure fast and secure delivery of your order.
Delivery Time: Typically, our standard delivery time ranges from 3 to 7 business days for shipments worldwide. This timeframe is subject to regional variations and potential delays beyond our control.
Additional Charges: Please note that import duties, taxes, and other related charges are not included in the item price or shipping charges. These charges, if applicable, are the responsibility of the buyer and may be assessed upon delivery by customs authorities in the destination country.
TPT0501044P LCD Panel Return Note :
Model Confirmation: When placing an order for our LCD screen, please ensure that the model number matches exactly with the one you intend to replace. This is crucial to avoid purchasing the wrong product that may not function properly in your device.
Installation Caution: Before confirming that the screen does not work properly, refrain from using adhesive to attach our screen to your equipment. If adhesive is applied and the screen is installed, we regret that we cannot accept returns or provide refunds. This precaution is essential to ensure that our products remain in their original condition for potential troubleshooting or returns.
TPT0501044P LCD Panel FAQ :
Q: Can You declare my order of TPT0501044P to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can you give me a discount if I need a large quantity of TPT0501044P ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can I pay my order of TPT0501044P via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long will I receive my goods TPT0501044P ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
