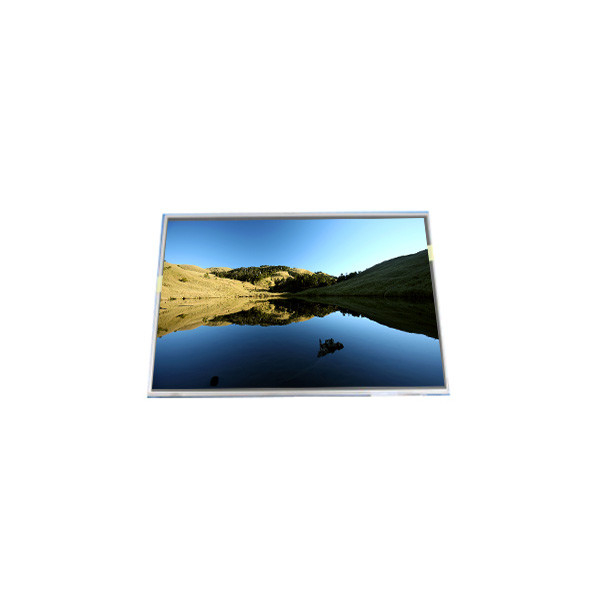

5.2 inch DPS052A234A 1080*1920 TFT-LCD Screen LCD Monitor
Product Details:
| Place of Origin: | China |
| Brand Name: | JDI |
| Model Number: | DPS052A234A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | DPS052A234A | Diagonal Size: | 5.2" |
|---|---|---|---|
| Panel Type: | LTPS TFT-LCD, CELL, Q-CUT (Full Cell) | Resolution: | 1080(RGB)×1920, FHD 423PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 64.8(W)×115.2(H) Mm |
| Contrast Ratio: | 1000:1 (Typ.) (TM) | Operating Mode: | IPS, Normally Black |
| Power Supply: | 1.8/5.4/-5.4V (Typ.)(IOVDD/AVDD/AVDD-) | Designed For: | Mobile Phone |
Product Description
5.2 inch DPS052A234A 1080*1920 TFT-LCD Screen LCD Monitor
DPS052A234A LCD Panel Product details :
| Brand | JDI |
| Model P/N | DPS052A234A |
| Diagonal Size | 5.2" |
| Panel Type | LTPS TFT-LCD, CELL, Q-CUT (Full Cell) |
| Resolution | 1080(RGB)×1920, FHD 423PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 64.8(W)×115.2(H) mm |
| Bezel Opening | - |
| Outline Dim. | 66.8(W)×121.43(H)×0.4(D) mm |
| Treatment | - |
| Luminance | 0 cd/m² |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 15 (Typ.)(Tr+Td) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Operating Mode | IPS, Normally Black |
| Plate Thickness | 0.20+0.20 mm |
| Transmittance | 3.98% (Typ.)(with Polarizer) |
| Support Color | 16.7M 71%NTSC |
| Light Source | |
| Weight | 6.10g (Typ.) |
| Designed For | Mobile Phone |
| Frame Rate | - |
| Touch Panel | In-Cell Touch |
| D-IC Detail | COG Built-in R69338 |
| Power Supply | 1.8/5.4/-5.4V (Typ.)(IOVDD/AVDD/AVDD-) |
| Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
DPS052A234A LCD Panel Attention:
Before placing an order for purchase, the buyer must confirm the screen model needs.
If you are not sure about the model of the screen, please contact us at the first time.
We will distinguish and prevent you from buying the wrong screen.
If the buyer's mistake let screen make the screen unusable, all the freight incurred shall be borne by the buyer.
DPS052A234A LCD Panel Shipping and Package :
DPS052A234A LCD Panel Shipping Information :
Shipping Agency: We utilize a reputable and efficient shipping agency known for its reliability and professionalism. Our goal is to ensure fast and secure delivery of your order.
Delivery Time: Typically, our standard delivery time ranges from 3 to 7 business days for shipments worldwide. This timeframe is subject to regional variations and potential delays beyond our control.
Additional Charges: Please note that import duties, taxes, and other related charges are not included in the item price or shipping charges. These charges, if applicable, are the responsibility of the buyer and may be assessed upon delivery by customs authorities in the destination country.
DPS052A234A LCD Panel Return Note :
Model Confirmation: When placing an order for our LCD screen, please ensure that the model number matches exactly with the one you intend to replace. This is crucial to avoid purchasing the wrong product that may not function properly in your device.
Installation Caution: Before confirming that the screen does not work properly, refrain from using adhesive to attach our screen to your equipment. If adhesive is applied and the screen is installed, we regret that we cannot accept returns or provide refunds. This precaution is essential to ensure that our products remain in their original condition for potential troubleshooting or returns.
DPS052A234A LCD Panel FAQ :
Q: Do you accept sample orders of DPS052A234A ?
A: Of course! Sample order is welcome.
Q: Can I pay my order of DPS052A234A vai credit card ?
A: Yes! You can use your credit card through your Paypal account.
Q: How long is the warranty ?
A: We offer 90 days warranty.
Q: If I place order now, when will you ship the goods of DPS052A234A ?
A: The order will be shipped within 2-3 working days after received your payment.
