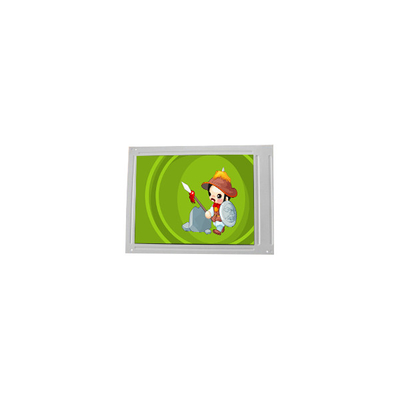

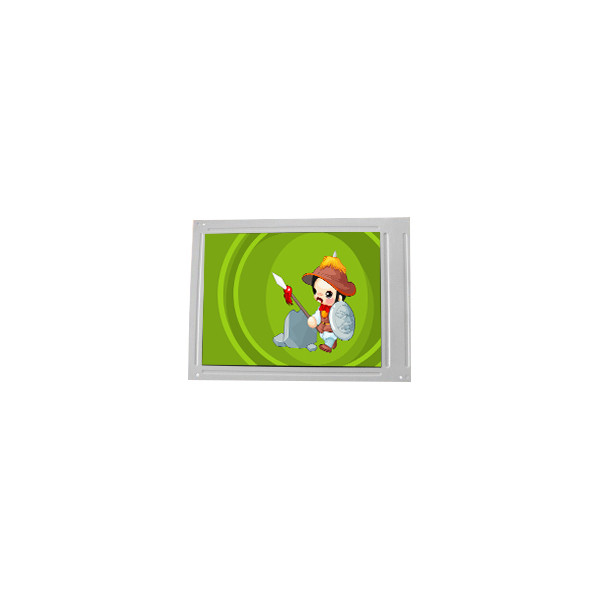

F050A22-6T2 5.0 inch 720*1280 TFT-LCD Screen for Mobile Phone
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | F050A22-6T2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | F050A22-6T2 | Diagonal Size: | 5.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL, Q-CUT (Empty Cell) | Resolution: | 720(RGB)×1280, WXGA 294PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 62.1(W)×110.4(H) Mm |
| Response Time: | 25 (Typ.)(Tr+Td) | Application: | Mobile Phone |
Product Description
F050A22-6T2 5.0 inch 720*1280 TFT-LCD Screen for Mobile Phone
F050A22-6T2 LCD Panel Product details :
| Brand | Innolux |
| Model P/N | F050A22-6T2 |
| Diagonal Size | 5.0" |
| Panel Type | a-Si TFT-LCD, CELL, Q-CUT (Empty Cell) |
| Resolution | 720(RGB)×1280, WXGA 294PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 62.1(W)×110.4(H) mm |
| Bezel Opening | - |
| Outline Size | 64.5(W)×117.59(H)×0.4(D) mm |
| Surface | - |
| Brightness | 0 cd/m² |
| Contrast Ratio | 900:1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Display Mode | AAS, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 25 (Typ.)(Tr+Td) |
| Glass Depth | 0.20+0.20 mm |
| Transmissivity | - |
| Display Colors | 16.7M 70%NTSC |
| Lamp Type | No B/L |
| Frequency | - |
| Touch Screen | On-Cell Touch, I²C |
| Driver IC | COG Suggest NT35521, OTM1283A, OTM1284A, OTM1288A, HX8394_A01, HX8394_D01, ILI9881, NT35521S |
| Panel Weight | - |
| Application | Mobile Phone |
| Environment | Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -30 ~ 80 °C |
F050A22-6T2 LCD Panel Attention:
Before placing an order for purchase, the buyer must confirm the screen model needs.
If you are not sure about the model of the screen, please contact us at the first time.
We will distinguish and prevent you from buying the wrong screen.
If the buyer's mistake let screen make the screen unusable, all the freight incurred shall be borne by the buyer.
F050A22-6T2 LCD Panel Shipping and Package :
F050A22-6T2 LCD Panel Shipping Information :
Shipping Agency: We utilize a reputable and efficient shipping agency known for its reliability and professionalism. Our goal is to ensure fast and secure delivery of your order.
Delivery Time: Typically, our standard delivery time ranges from 3 to 7 business days for shipments worldwide. This timeframe is subject to regional variations and potential delays beyond our control.
Additional Charges: Please note that import duties, taxes, and other related charges are not included in the item price or shipping charges. These charges, if applicable, are the responsibility of the buyer and may be assessed upon delivery by customs authorities in the destination country.
F050A22-6T2 LCD Panel Return Note :
Model Confirmation: When placing an order for our LCD screen, please ensure that the model number matches exactly with the one you intend to replace. This is crucial to avoid purchasing the wrong product that may not function properly in your device.
Installation Caution: Before confirming that the screen does not work properly, refrain from using adhesive to attach our screen to your equipment. If adhesive is applied and the screen is installed, we regret that we cannot accept returns or provide refunds. This precaution is essential to ensure that our products remain in their original condition for potential troubleshooting or returns.
F050A22-6T2 LCD Panel FAQ :
Q: Do you accept sample orders of F050A22-6T2 ?
A: Of course! Sample order is welcome.
Q: Can I pay my order of F050A22-6T2 vai credit card?
A: Yes! You can use your credit card through your Paypal account.
Q: How long is the warranty ?
A: We offer 90 days warranty.
Q: If I place order now, when will you ship the goods of F050A22-6T2 ?
A: The order will be shipped within 2-3 working days after received your payment.
