LCD Screen Display Panel

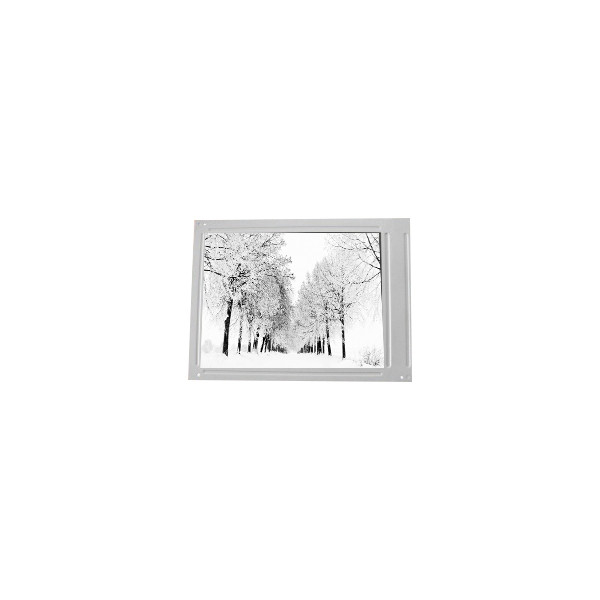

M238HCA-P3B 23.8 inch lcd Screen for Desktop Monitor

All Category

Floor Standing Digital Signage

M238HCA-P3B 23.8 inch lcd Screen for Desktop Monitor

Brand Name:	Innolux
Model Number:	M238HCA-P3B
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

M238HCA-P3B

Diagonal Size:

23.8"

Panel Type:

A-Si TFT-LCD, CELL, FOB

Resolution:

1920(RGB)×1080, FHD 92PPI

Pixel Format:

RGB Vertical Stripe

Application:

Desktop Monitor

Signal Interface:

LVDS (2 Ch, 8-bit), 30 Pins Connector

Input Voltage:

5.0V (Typ.)

Environment:

Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C

Driver IC:

COFBuilt-in 6 Source Chips

Supply Ability:

100000 Unit/Units per Month

Product Description

M238HCA-P3B 23.8 inch lcd Screen for Desktop Monitor

M238HCA-P3B LCD Panel Product details :

Brand	Innolux
Model P/N	M238HCA-P3B
Diagonal Size	23.8"
Panel Type	a-Si TFT-LCD, CELL, FOB
Resolution	1920(RGB)×1080, FHD 92PPI
Pixel Format	RGB Vertical Stripe
Active Area	527.04(W)×296.46(H) mm
Bezel Opening	-
Outline Size	534.44(W)×306.46(H)×1.31(D) mm
Surface	Antiglare (Haze 25%), Hard coating (3H)
Brightness	0 cd/m²
Contrast Ratio	1000:1 (Typ.) (TM)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Display Mode	AAS, Normally Black, Transmissive
Best View on	Symmetry
Response Time	8/7 (Typ.)(Tr/Td)
Glass Depth	0.50+0.50 mm
Transmissivity	4.5% (Typ.)(with Polarizer)
Display Colors	16.7M 74%NTSC
Lamp Type	No B/L
Frequency	60Hz
Touch Screen	Without
Driver IC	COFBuilt-in 6 source chips
Panel Weight	468/520/546g (Min./Typ./Max.)
Application	Desktop Monitor
Signal Interface	LVDS (2 ch, 8-bit), 30 pins Connector
Input Voltage	5.0V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C

M238HCA-P3B LCD Panel Attention:

Before placing an order for purchase, the buyer must confirm the screen model needs.

If you are not sure about the model of the screen, please contact us at the first time.

We will distinguish and prevent you from buying the wrong screen.

If the buyer's mistake let screen make the screen unusable, all the freight incurred shall be borne by the buyer.

M238HCA-P3B LCD Panel Shipping and Package :

M238HCA-P3B LCD Panel delivery time:

Orders placed before 3:00 pm from Monday to Friday (excluding bank holidays) will usually be shipped on the same business day, but payment must be settled. Products purchased on weekends are usually shipped on Mondays.

The UK standard free delivery time is 2 to 3 working days, provided through DHL service and signed for.

The next day delivery time in the UK is 1-2 working days.

International standard delivery takes 6-8 working days.

M238HCA-P3B LCD Panel Return :

Please note that we are not responsible for the return postage of any incorrectly ordered or incompatible products. Unfortunately, in rare cases, certain items may be lost or damaged during transportation. If you have indeed received an item with a problem, please feel free to contact us via SMS or send us a message directly via email. We will contact you at any time and arrange for a replacement as soon as possible.

We have always been customer-centric and committed to providing you with the best shopping experience. Although in rare cases, some items may encounter problems during transportation, we will do our best to solve these problems and ensure that you can quickly obtain a satisfactory solution. We attach great importance to your feedback. If you have any questions or concerns, please feel free to contact us. We will do our best to provide you with excellent service and ensure that you have no doubts about our online store. Thank you for your purchase. Looking forward to working with you again.

M238HCA-P3B LCD Panel FAQ :

Q: Do you accept sample orders of M238HCA-P3B ?

A: Of course! Sample order is welcome.

Q: Can I pay my order of M238HCA-P3B vai credit card?

A: Yes! You can use your credit card through your Paypal account.

Q: How long is the warranty ?

A: We offer 90 days warranty.

Q: If I place order now, when will you ship the goods of M238HCA-P3B ?

A: The order will be shipped within 2-3 working days after received your payment.
