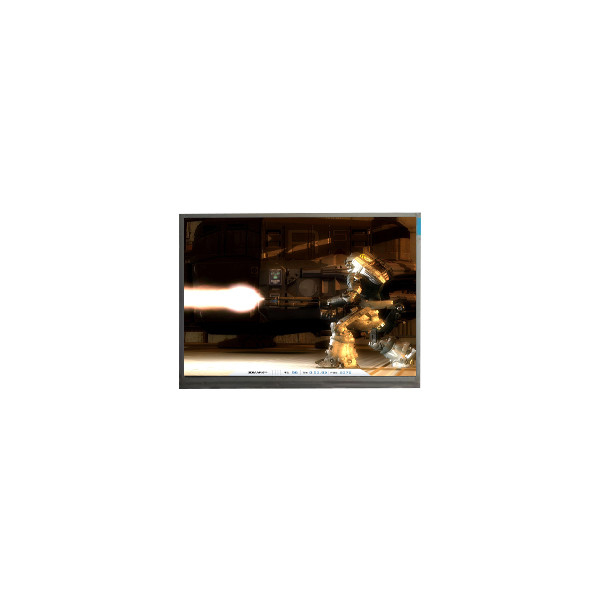

800*480 F070A51-601 7.0 inch lcd Screen for Automotive Display

Brand Name:	Innolux
Model Number:	F070A51-601
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

F070A51-601

Diagonal Size:

Panel Type:

A-Si TFT-LCD, CELL, Q-CUT (Full Cell)

Resolution:

800(RGB)×480, WVGA 134PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

154.08(W)×85.92(H) Mm

Application:

Automotive Display、Digital Photo Frame、Portable DVD Player

Display Mode:

TN, Normally White, Transmissive

Response Time:

25 (Typ.)(Tr+Td)

View Direction:

6 O'clock

Supply Ability:

100000 Unit/Units per Month

Product Description

800*480 F070A51-601 7.0 inch lcd Screen for Automotive Display

F070A51-601 LCD Panel Product details :

Brand	Innolux
Model P/N	F070A51-601
Diagonal Size	7.0"
Panel Type	a-Si TFT-LCD, CELL, Q-CUT (Full Cell)
Resolution	800(RGB)×480, WVGA 134PPI
Pixel Format	RGB Vertical Stripe
Active Area	154.08(W)×85.92(H) mm
Bezel Opening	-
Outline Dim.	162.5(W)×96.62(H)×1(D) mm
Treatment	Without Polarizer
Luminance	0 cd/m²
Contrast Ratio	800:1 (Typ.) (TM)
View Direction	6 o'clock
Response Time	25 (Typ.)(Tr+Td)
Viewing Angle	70/70/60/70 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Plate Thickness	0.50+0.50 mm
Transmittance	5.02% (Typ.)
Support Color	16.7M 51%NTSC
Light Source	No B/L
Weight	-
Designed For	Automotive Display,Digital Photo Frame,Portable DVD Player
Frame Rate	-
Touch Panel	Without
D-IC Detail	COG Suggest ILI6137A+ILI5960-9G, NT39419B+NT52001, ILI6122M-9G+ILI5960-9G, HX8264-E+HX8664-B, EK9713B+EK73002A
Environment	Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 90 °C

F070A51-601 LCD Panel Attention:

On the back of the screen, you can see the model or serial number label. The location of these labels may vary by model, but they are usually in a prominent position.

For some screens, there may be a layer of silver foil material on the back. In this case, you may need to remove it to display the model number. Please note that some LCD screens have the same appearance but incompatible internal specifications. To ensure the correct model selection, you need to carefully check the cable and connector types to ensure they are compatible with your device.

When choosing to expand the LCD screen, you can refer to the following standards:

1. Determine the correct screen size and resolution.

2. Choose cable and connector types that are compatible with your device.

3. Choose a high-quality LCD screen to ensure brightness, contrast, and color accuracy.

4. Consider your usage and budget to choose the model that suits you best.

In short, if you need to choose to expand the LCD screen, please make sure you remove the screen and confirm the correct model and specifications. Meanwhile, you need to choose the model that suits you based on your usage and budget. Finally, please remember to purchase high-quality LCD screens to ensure a good user experience and long-term durability.

F070A51-601 LCD Panel Shipping and Package :

F070A51-601 LCD Panel Shipping Information :

Shipping Agency: We utilize a reputable and efficient shipping agency known for its reliability and professionalism. Our goal is to ensure fast and secure delivery of your order.

Delivery Time: Typically, our standard delivery time ranges from 3 to 7 business days for shipments worldwide. This timeframe is subject to regional variations and potential delays beyond our control.

Additional Charges: Please note that import duties, taxes, and other related charges are not included in the item price or shipping charges. These charges, if applicable, are the responsibility of the buyer and may be assessed upon delivery by customs authorities in the destination country.

F070A51-601 LCD Panel warranty :

Unless otherwise stated, our product comes with a 12-month return to factory warranty. The warranty period starts from the date of purchase.
Our 12-month return to factory warranty covers any hardware defects that may occur under normal usage conditions. If you encounter any issues with the LCD hardware during this period, simply return it to us. We will provide free maintenance or replacement of the equipment. This warranty is designed to give you peace of mind and ensure that you are not affected by any unexpected hardware failures. Please note that the warranty does not cover software issues, accidental damage, user data, or problems caused by misuse or improper handling.

F070A51-601 LCD Panel FAQ :

Q: Can you give me a discount if I need a large quantity of F070A51-601 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Can You declare my order of F070A51-601 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: How to make payment of F070A51-601 ?

A: We accept T/T , Paypal , western union .

Q: How long is the warranty ?

A: We offer 90 days warranty .
