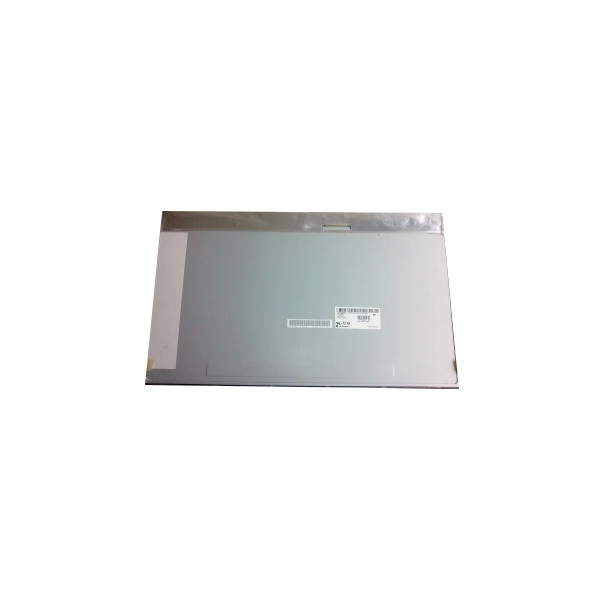

New LM230WF5-TLF4 23.0 inch 1920*1080 lcd Screen lcd module
Product Details:
| Place of Origin: | China |
| Brand Name: | LG Display |
| Model Number: | LM230WF5-TLF4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LM230WF5-TLF4 | Diagonal Size: | 23.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1920(RGB)×1080, FHD 95PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 509.184(W)×286.416(H) Mm |
| Designed For: | Desktop Monitor | Signal Interface: | LVDS (2 Ch, 8-bit), 30 PinsConnector |
| Input Voltage: | 5.0V (Typ.) | Environment: | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
Product Description
New LM230WF5-TLF4 23.0 inch 1920*1080 lcd Screen lcd module
LM230WF5-TLF4 LCD Panel Product details :
| Brand | LG Display |
| Model P/N | LM230WF5-TLF4 |
| Diagonal Size | 23.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 95PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 509.184(W)×286.416(H) mm |
| Bezel Opening | 513.8(W)×291.0(H) mm |
| Outline Size | 533.2(W)×312(H)×10.7(D) mm |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 250 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 85/85/75/85 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 1.3/3.7 (Typ.)(Tr/Td) |
| Display Colors | 16.7M 72%NTSC |
| Lamp Type | 2 stringsWLED, 30K hours, Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 1.98/2.08Kgs (Typ./Max.) |
| Application | Desktop Monitor |
| Signal Interface | LVDS (2 ch, 8-bit), 30 pinsConnector |
| Input Voltage | 5.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
LM230WF5-TLF4 LCD Panel Guarantee :
Strict Testing and Secure Packaging: Each item undergoes rigorous testing to ensure functionality and performance. We also prioritize secure packaging to safeguard the product during transit, reducing the risk of damage.
Warranty Coverage: We offer a warranty period of 2 to 6 months for every item, depending on the specific product. This warranty period provides peace of mind, allowing you to use the LCD panel confidently.
Dedicated After-Sales Support: Our commitment extends beyond the purchase. We are dedicated to resolving any potential issues or concerns you may encounter after the sale. Please don't hesitate to reach out to us for assistance and support.
We stand behind the quality of our products and strive to deliver excellent customer service throughout your experience with us.
LM230WF5-TLF4 LCD Panel Shipping and Package :
LM230WF5-TLF4 LCD Panel Payment & Shipping :
Secure Online Payment: Payment for your order is safe and straightforward. You can easily make payment online using major credit cards such as VISA or Mastercard through our platform on ALI.
Global Shipping: We provide worldwide shipping services and have successfully delivered to numerous countries, including Japan, Thailand, Russia, Ukraine, the United Kingdom, and Brazil.
Affordable Shipping Options: We offer cost-effective shipping solutions to ensure your order reaches you efficiently. Our shipping partners include DHL, UPS, TNT, EMS, and China Post Air Mail, providing you with flexibility in choosing the most suitable shipping method based on your location and preferences.
Feel confident in placing your order with us, knowing that we prioritize secure transactions and reliable global shipping services.
LM230WF5-TLF4 LCD Panel Tariffs and Fees:
No Additional Fees: We do not charge any fees for customer orders, regardless of the order size.
Customs Duties and Import Taxes: Please be aware that when the parts arrive at your local customs office, there may be tariffs, customs duties, or import taxes imposed by your country's customs authorities. It is important to note that we will not be responsible for any customs duties or import taxes incurred.
Shipping Duration: Our standard shipping method utilizes international aviation, and items are shipped from Hong Kong. The typical transit time for delivery to most regions is 7-14 working days (equivalent to 2-3 weeks).
Extended Delivery Time for Specific Regions: For certain regions such as Russia and the United Kingdom, delivery may take longer, typically ranging from 5 to 9 weeks.
Item Receipt and Contact: If you have not received your items within 30 working days (equivalent to 5 weeks) from the shipping date, we kindly ask that you contact us for assistance.
Business Hours: Our working hours are from Monday to Friday, excluding legal holidays.
LM230WF5-TLF4 LCD Panel FAQ :
Q: Can I pay my goods LM230WF5-TLF4 by credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can you give me a discount if I need a large quantity of LM230WF5-TLF4 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders for LM230WF5-TLF4 ?
A: Of course!sample order is welcome !
Q: How to make payment for LM230WF5-TLF4 ?
A: We accept T/T , Paypal , western union .
Want to Know more details about this product
