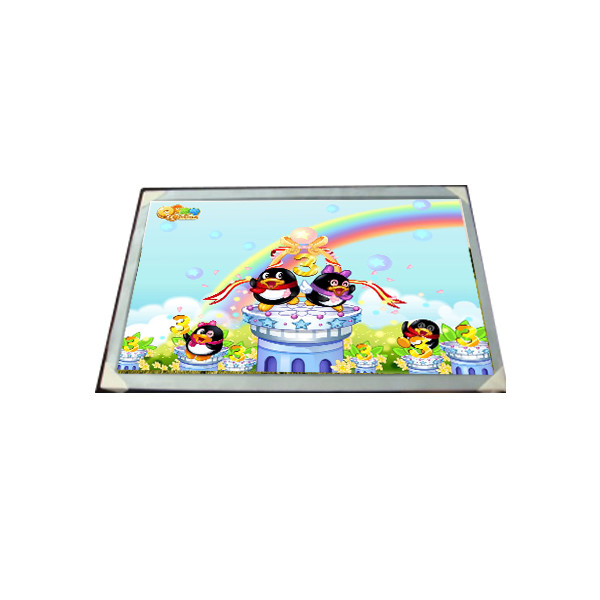

original LM200WD3-TJBA 20.0 inch 1600*900 lcd Screen module

All Category

Floor Standing Digital Signage

original LM200WD3-TJBA 20.0 inch 1600*900 lcd Screen module

Brand Name:	LG Display
Model Number:	LM200WD3-TJBA
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LM200WD3-TJBA

Diagonal Size:

20.0"

Panel Type:

A-Si TFT-LCD, CELL, FOB

Resolution:

1600(RGB)×900, HD+ 91PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

442.8(W)×249.075(H) Mm

Designed For:

Desktop Monitor

Frame Rate:

Interface Type:

LVDS (2 Ch, 8-bit), 30 PinsConnector

Environment:

Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

Supply Ability:

100000 Unit/Units per Month

Product Description

original LM200WD3-TJBA 20.0 inch 1600*900 lcd Screen module

LM200WD3-TJBA LCD Panel Product details :

Brand	LG Display
Model P/N	LM200WD3-TJBA
Diagonal Size	20.0"
Panel Type	a-Si TFT-LCD, CELL, FOB
Resolution	1600(RGB)×900, HD+ 91PPI
Pixel Format	RGB Vertical Stripe
Active Area	442.8(W)×249.075(H) mm
Bezel Opening	-
Outline Dim.	456.3(W)×259.075(H)×1.69(D) mm
Treatment	Antiglare, Hard coating (3H)
Luminance	0 cd/m²
Contrast Ratio	600:1 (Typ.) (TM)
View Direction	6 o'clock
Response Time	1.1/3.9 (Typ.)(Tr/Td)
Viewing Angle	45/45/15/35 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Plate Thickness	0.63+0.63 mm
Transmittance	-
Support Color	16.7M 73%NTSC
Light Source	No B/L, W/O Driver
Weight	450/470g (Typ./Max.)
Designed For	Desktop Monitor
Frame Rate	60Hz
Touch Panel	Without
D-IC Detail	COF Built-in 5 source chips
Interface Type	LVDS (2 ch, 8-bit), 30 pinsConnector
Power Supply	5.0V (Typ.)
Environment	Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

LM200WD3-TJBA LCD Panel Guarantee :

Strict Testing and Secure Packaging: Each item undergoes rigorous testing to ensure functionality and performance. We also prioritize secure packaging to safeguard the product during transit, reducing the risk of damage.

Warranty Coverage: We offer a warranty period of 2 to 6 months for every item, depending on the specific product. This warranty period provides peace of mind, allowing you to use the LCD panel confidently.

Dedicated After-Sales Support: Our commitment extends beyond the purchase. We are dedicated to resolving any potential issues or concerns you may encounter after the sale. Please don't hesitate to reach out to us for assistance and support.

We stand behind the quality of our products and strive to deliver excellent customer service throughout your experience with us.

LM200WD3-TJBA LCD Panel Shipping and Package :

LM200WD3-TJBA LCD Panel Payment & Shipping :

Secure Online Payment: Payment for your order is safe and straightforward. You can easily make payment online using major credit cards such as VISA or Mastercard through our platform on ALI.

Global Shipping: We provide worldwide shipping services and have successfully delivered to numerous countries, including Japan, Thailand, Russia, Ukraine, the United Kingdom, and Brazil.

Affordable Shipping Options: We offer cost-effective shipping solutions to ensure your order reaches you efficiently. Our shipping partners include DHL, UPS, TNT, EMS, and China Post Air Mail, providing you with flexibility in choosing the most suitable shipping method based on your location and preferences.

Feel confident in placing your order with us, knowing that we prioritize secure transactions and reliable global shipping services.

LM200WD3-TJBA LCD Panel Tariffs and Fees:

No Additional Fees: We do not charge any fees for customer orders, regardless of the order size.

Customs Duties and Import Taxes: Please be aware that when the parts arrive at your local customs office, there may be tariffs, customs duties, or import taxes imposed by your country's customs authorities. It is important to note that we will not be responsible for any customs duties or import taxes incurred.

Shipping Duration: Our standard shipping method utilizes international aviation, and items are shipped from Hong Kong. The typical transit time for delivery to most regions is 7-14 working days (equivalent to 2-3 weeks).

Extended Delivery Time for Specific Regions: For certain regions such as Russia and the United Kingdom, delivery may take longer, typically ranging from 5 to 9 weeks.

Item Receipt and Contact: If you have not received your items within 30 working days (equivalent to 5 weeks) from the shipping date, we kindly ask that you contact us for assistance.

Business Hours: Our working hours are from Monday to Friday, excluding legal holidays.

LM200WD3-TJBA LCD Panel FAQ :

Q: Can you test the lcd panel LM200WD3-TJBA before shipping ?

A: Yes , of course , don't worry , our item was tested ok before shipping .

Q: Do you accept the sample order LM200WD3-TJBA ?

A: Yes , sample order is welcome.

Q: Can you declared low value of my order LM200WD3-TJBA ?

A: Yes , we can , you can tell us before shipping .

Q: How long the warranty of lcd LM200WD3-TJBA ?

A: 90 days .
