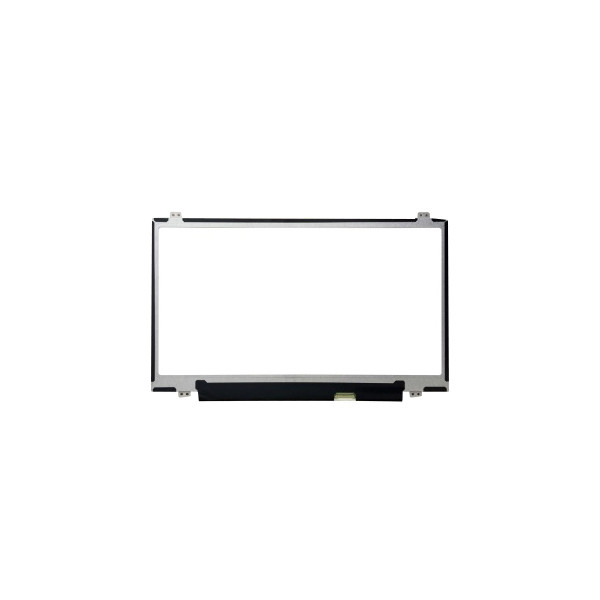

LP140WF6-SPF1 LCD Display Panel 1920*1080 LCD Screen Module
Product Details:
Place of Origin: | China |
Brand Name: | LG |
Model Number: | LP140WF6-SPF1 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | LP140WF6-SPF1 | Diagonal Size: | 14.0" |
---|---|---|---|
Resolution: | 1920(RGB)×1080, FHD 157PPI | Pixel Format: | RGB Vertical Stripe |
Active Area: | 309.31(W)×173.99(H) Mm | Display Mode: | IPS, Normally Black, Transmissive |
Display Colors: | 262K 74% NTSC | Lamp Type: | WLED , 12K Hours , With LED Driver |
Application: | Laptop、Industrial | Frequency: | 60Hz |
Product Description
LP140WF6-SPF1 LCD Display Panel 1920*1080 LCD Screen Module
LP140WF6-SPF1 LCD Panel Product details :
Brand | LG Display |
Model P/N | LP140WF6-SPF1 |
Diagonal Size | 14.0" |
Panel Type | a-Si TFT-LCD, LCM |
Resolution | 1920(RGB)×1080, FHD 157PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 309.31(W)×173.99(H) mm |
Bezel Opening | 312.4(W)×177.05(H) mm |
Outline(mm) | 320.4(W)×205.1(H)×3(D) |
Luminance | 300 (Typ.)(cd/m²) |
Viewing Angle | 80/80/80/80 (Min.)(CR≥10) |
Good View at | Symmetry |
Color Depth | 262K 74% NTSC |
Outline Shape | Slim (PCBA Flat, T≤3.2mm) |
Refresh Rate | 60Hz |
Treatment | Antiglare |
Contrast Ratio | 700 : 1 (Typ.) (TM) |
Work Mode | IPS, Normally Black, Transmissive |
Response | 25 (Typ.)(Tr+Td) ms |
Backlight | WLED , 12K hours , With LED Driver |
Used for | Laptop,Industrial |
Touchscreen | Without |
Signal Type | eDP (2 Lanes), HBR1 (2.7G/lane), 30 pins Connector |
Voltage Supply | 3.3V (Typ.) |
Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
LP140WF6-SPF1 LCD Display Panel 1920*1080 LCD Screen Module |
LP140WF6-SPF1 LCD Panel Shipping and Package :
LP140WF6-SPF1 LCD Panel FAQ :
Q: Can You declare my order of LP140WF6-SPF1 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can you give me a discount if I need a large quantity of LP140WF6-SPF1 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders of LP140WF6-SPF1 ?
A: Of course!sample order is welcome !
Q: Can I pay my order of LP140WF6-SPF1 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
