LCD Screen Display Panel

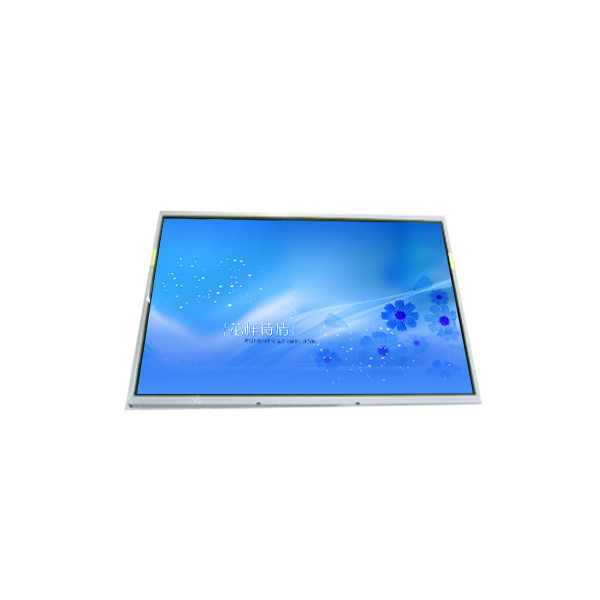

LM230WF5-TLF2 23.0 inch 1920*1080 lcd Screen display

All Category

Floor Standing Digital Signage

LM230WF5-TLF2 23.0 inch 1920*1080 lcd Screen display

Brand Name:	LG Display
Model Number:	LM230WF5-TLF2
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LM230WF5-TLF2

Diagonal Size:

23.0"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1920(RGB)×1080, FHD 95PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

1920(RGB)×1080, FHD 95PPI

Support Color:

16.7M 72%NTSC

Application:

Desktop Monitor

Frame Rate:

Interface Type:

LVDS (2 Ch, 8-bit), 30 PinsConnector

Supply Ability:

100000 Unit/Units per Month

Product Description

LM230WF5-TLF2 23.0 inch 1920*1080 lcd Screen display

LM230WF5-TLF2 LCD Panel Product details :

Brand	LG Display
Model P/N	LM230WF5-TLF2
Diagonal Size	23.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×1080, FHD 95PPI
Pixel Format	RGB Vertical Stripe
Active Area	1920(RGB)×1080, FHD 95PPI
Bezel Opening	513.8(W)×291.0(H) mm
Outline Dim.	533.2(W)×312(H)×10.7(D) mm
Treatment	Antiglare, Hard coating (3H)
Luminance	250 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
View Direction	6 o'clock
Response Time	1.3/3.7 (Typ.)(Tr/Td)
Viewing Angle	85/85/75/85 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	16.7M 72%NTSC
Light Source	WLED [2 strings], 30K hours, W/O Driver
Weight	1.98/2.08Kgs (Typ./Max.)
Designed For	Desktop Monitor
Frame Rate	60Hz
Touch Panel	Without
Interface Type	LVDS (2 ch, 8-bit), 30 pinsConnector
Power Supply	5.0V (Typ.)
Environment	Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

LM230WF5-TLF2 LCD Panel Guarantee :

Strict Testing and Secure Packaging: Each item undergoes rigorous testing to ensure functionality and performance. We also prioritize secure packaging to safeguard the product during transit, reducing the risk of damage.

Warranty Coverage: We offer a warranty period of 2 to 6 months for every item, depending on the specific product. This warranty period provides peace of mind, allowing you to use the LCD panel confidently.

Dedicated After-Sales Support: Our commitment extends beyond the purchase. We are dedicated to resolving any potential issues or concerns you may encounter after the sale. Please don't hesitate to reach out to us for assistance and support.

We stand behind the quality of our products and strive to deliver excellent customer service throughout your experience with us.

LM230WF5-TLF2 LCD Panel Shipping and Package :

LM230WF5-TLF2 LCD Panel Payment & Shipping :

Secure Online Payment: Payment for your order is safe and straightforward. You can easily make payment online using major credit cards such as VISA or Mastercard through our platform on ALI.

Global Shipping: We provide worldwide shipping services and have successfully delivered to numerous countries, including Japan, Thailand, Russia, Ukraine, the United Kingdom, and Brazil.

Affordable Shipping Options: We offer cost-effective shipping solutions to ensure your order reaches you efficiently. Our shipping partners include DHL, UPS, TNT, EMS, and China Post Air Mail, providing you with flexibility in choosing the most suitable shipping method based on your location and preferences.

Feel confident in placing your order with us, knowing that we prioritize secure transactions and reliable global shipping services.

LM230WF5-TLF2 LCD Panel Tariffs and Fees:

No Additional Fees: We do not charge any fees for customer orders, regardless of the order size.

Customs Duties and Import Taxes: Please be aware that when the parts arrive at your local customs office, there may be tariffs, customs duties, or import taxes imposed by your country's customs authorities. It is important to note that we will not be responsible for any customs duties or import taxes incurred.

Shipping Duration: Our standard shipping method utilizes international aviation, and items are shipped from Hong Kong. The typical transit time for delivery to most regions is 7-14 working days (equivalent to 2-3 weeks).

Extended Delivery Time for Specific Regions: For certain regions such as Russia and the United Kingdom, delivery may take longer, typically ranging from 5 to 9 weeks.

Item Receipt and Contact: If you have not received your items within 30 working days (equivalent to 5 weeks) from the shipping date, we kindly ask that you contact us for assistance.

Business Hours: Our working hours are from Monday to Friday, excluding legal holidays.

LM230WF5-TLF2 LCD Panel FAQ :

Q: Do you accept sample orders of LM230WF5-TLF2 ?

A: Of course! Sample order is welcome.

Q: Can I pay my order of LM230WF5-TLF2 vai credit card ?

A: Yes! You can use your credit card through your Paypal account.

Q: How long is the warranty ?

A: We offer 90 days warranty.

Q: If I place order now, when will you ship the goods of LM230WF5-TLF2 ?

A: The order will be shipped within 2-3 working days after received your payment.
