LCD Screen Display Panel

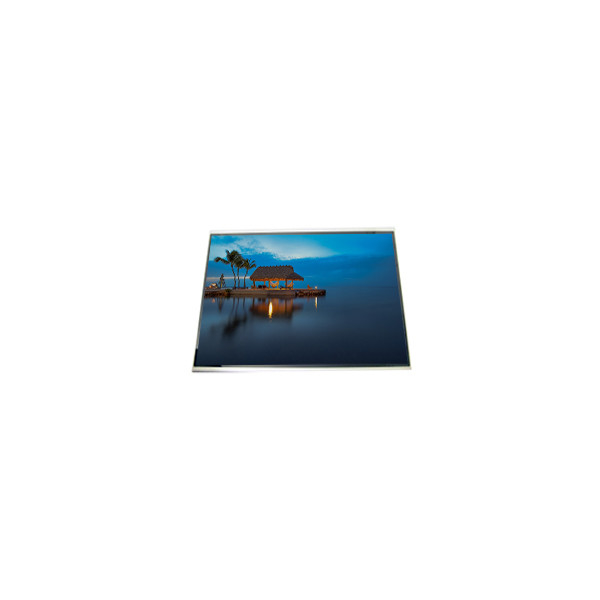

6.0 inch HSD060BHW1-P00 lcd Screen FOR Mobile Phone

All Category

Floor Standing Digital Signage

6.0 inch HSD060BHW1-P00 lcd Screen FOR Mobile Phone

Brand Name:	HannStar
Model Number:	HSD060BHW1-P00
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

HSD060BHW1-P00

Diagonal Size:

Panel Type:

A-Si TFT-LCD, CELL, Q-CUT (Full Cell)

Resolution:

720(RGB)×1280, WXGA 247PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

73.98(W)×131.52(H) Mm

Application:

Mobile Phone

Driver IC:

COG Suggest HX8394-A01, HX8394-B, NT35520, NT35521, OTM1283A, OTM1288A

Display Colors:

16.7M 70%NTSC

Lamp Type:

No B/L

Supply Ability:

100000 Unit/Units per Month

Product Description

6.0 inch HSD060BHW1-P00 lcd Screen FOR Mobile Phone

HSD060BHW1-P00 LCD Panel Product details :

Brand	HannStar
Model P/N	HSD060BHW1-P00
Diagonal Size	6.0"
Panel Type	a-Si TFT-LCD, CELL, Q-CUT (Full Cell)
Resolution	720(RGB)×1280, WXGA 247PPI
Pixel Format	RGB Vertical Stripe
Active Area	73.98(W)×131.52(H) mm
Bezel Opening	-
Outline Size	76.58(W)×139.02(H)×0.8(D) mm
Surface	Without Polarizer
Brightness	0 cd/m²
Contrast Ratio	800:1 (Typ.) (TM)
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)
Display Mode	IPS Pro, Normally Black, Transmissive
Best View on	Symmetry
Response Time	16/19 (Typ.)(Tr/Td)
Glass Depth	0.40+0.40 mm
Transmissivity	9.85% (Typ.)(without Polarizer)
Display Colors	16.7M 70%NTSC
Lamp Type	No B/L
Frequency	-
Touch Screen	Without
Driver IC	COG Suggest HX8394-A01, HX8394-B, NT35520, NT35521, OTM1283A, OTM1288A
Panel Weight	-
Application	Mobile Phone
Signal Interface	MIPI (2 data lanes)
Environment	Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C

HSD060BHW1-P00 LCD Panel Guarantee :

Strict Testing and Secure Packaging: Each item undergoes rigorous testing to ensure functionality and performance. We also prioritize secure packaging to safeguard the product during transit, reducing the risk of damage.

Warranty Coverage: We offer a warranty period of 2 to 6 months for every item, depending on the specific product. This warranty period provides peace of mind, allowing you to use the LCD panel confidently.

Dedicated After-Sales Support: Our commitment extends beyond the purchase. We are dedicated to resolving any potential issues or concerns you may encounter after the sale. Please don't hesitate to reach out to us for assistance and support.

We stand behind the quality of our products and strive to deliver excellent customer service throughout your experience with us.

HSD060BHW1-P00 LCD Panel Shipping and Package :

HSD060BHW1-P00 LCD Panel Payment & Shipping :

Secure Online Payment: Payment for your order is safe and straightforward. You can easily make payment online using major credit cards such as VISA or Mastercard through our platform on ALI.

Global Shipping: We provide worldwide shipping services and have successfully delivered to numerous countries, including Japan, Thailand, Russia, Ukraine, the United Kingdom, and Brazil.

Affordable Shipping Options: We offer cost-effective shipping solutions to ensure your order reaches you efficiently. Our shipping partners include DHL, UPS, TNT, EMS, and China Post Air Mail, providing you with flexibility in choosing the most suitable shipping method based on your location and preferences.

Feel confident in placing your order with us, knowing that we prioritize secure transactions and reliable global shipping services.

HSD060BHW1-P00 LCD Panel Tariffs and Fees:

No Additional Fees: We do not charge any fees for customer orders, regardless of the order size.

Customs Duties and Import Taxes: Please be aware that when the parts arrive at your local customs office, there may be tariffs, customs duties, or import taxes imposed by your country's customs authorities. It is important to note that we will not be responsible for any customs duties or import taxes incurred.

Shipping Duration: Our standard shipping method utilizes international aviation, and items are shipped from Hong Kong. The typical transit time for delivery to most regions is 7-14 working days (equivalent to 2-3 weeks).

Extended Delivery Time for Specific Regions: For certain regions such as Russia and the United Kingdom, delivery may take longer, typically ranging from 5 to 9 weeks.

Item Receipt and Contact: If you have not received your items within 30 working days (equivalent to 5 weeks) from the shipping date, we kindly ask that you contact us for assistance.

Business Hours: Our working hours are from Monday to Friday, excluding legal holidays.

HSD060BHW1-P00 LCD Panel FAQ :

Q: Can I pay my order of HSD060BHW1-P00 via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: If I place order now,when will you ship the goods of HSD060BHW1-P00 ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: How long is the warranty ?

A: We offer 90days warranty .

Q: Do you accept sample orders of HSD060BHW1-P00 ?

A: Of course!sample order is welcome !
