LP140WD1-TLD1 14.0 inch 1600*900 40 Pins LCD Panel Display Screen

Brand Name:	LG
Model Number:	LP140WD1-TLD1
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LP140WD1-TLD1

Diagonal Size:

14.0"

Resolution:

1600(RGB)×900, HD+ 131PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

309.6(W)×174.15(H) Mm

Display Mode:

TN, Normally White, Transmissive

Display Colors:

262K 60% NTSC

Lamp Type:

WLED , 12K Hours , With LED Driver

Application:

Laptop

Frequency:

Supply Ability:

100000 Unit/Units per Month

Product Description

LP140WD1-TLD1 14.0 inch 1600*900 40 Pins LCD Panel Display Screen

LP140WD1-TLD1 LCD Panel Product details :

Brand	LG Display
Model P/N	LP140WD1-TLD1
Diagonal Size	14.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1600(RGB)×900, HD+ 131PPI
Pixel Format	RGB Vertical Stripe
Active Area	309.6(W)×174.15(H) mm
Bezel Opening	-
Outline(mm)	323.5(W)×192(H)×5.2(D)
Luminance	200 (Typ.)(cd/m²)
Viewing Angle	-
Good View at	-
Color Depth	262K 60% NTSC
Outline Shape	Wedge (PCBA Bent, T≥5.2mm)
Refresh Rate	60Hz
Treatment	Antiglare
Contrast Ratio	300 : 1 (Min.) (TM)
Work Mode	TN, Normally White, Transmissive
Response	-
Backlight	WLED , 12K hours , With LED Driver
Used for	Laptop
Touchscreen	Without
Signal Type	LVDS (2 ch, 6-bit), 40 pins Connector
Voltage Supply	3.3V (Typ.)
Max. Ratings	Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
LP140WD1-TLD1 14.0 inch 1600*900 40 Pins LCD Panel Display Screen

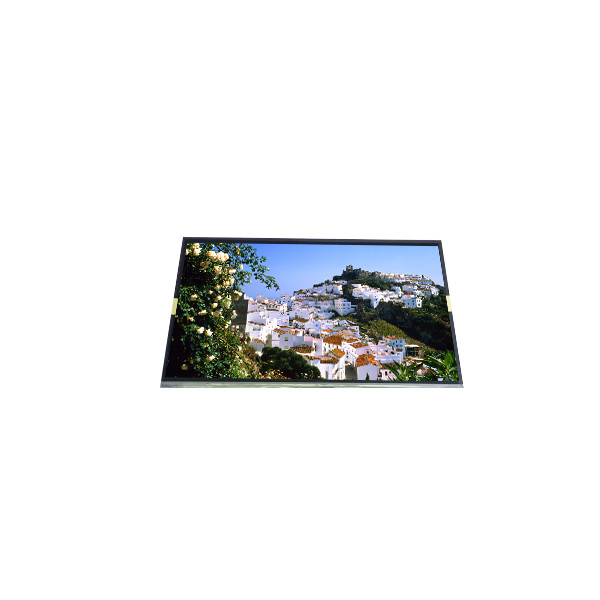

LP140WD1-TLD1 LCD Screen Photos :

Please be advised that the photos provided are for illustrative purposes only and depict items similar to the product you are considering. They serve as a general guide to help you visualize the item.

It's important to note that specific markings, labels, colors, etc., shown in the photos may not necessarily reflect the exact details of the item you will receive. If there are particular features or characteristics critical to your needs, we recommend consulting with us prior to making a purchase.

Please understand that the photos do not constitute a comprehensive description of the item, and we encourage you to reach out to us for any clarifications or additional information you may require.

LP140WD1-TLD1 LCD Panel Shipping and Package :

LP140WD1-TLD1 LCD Screen Shipping Delivery :

Thank you for choosing our LCD screen. We understand the anticipation of receiving your order promptly. It's important to note that while we strive to provide accurate estimates for delivery times, they serve as approximations rather than guarantees.

In the majority of instances, items typically arrive within or before the estimated timeframe. However, once your goods are handed over to the delivery service, their execution and timing are beyond our direct control.

LP140WD1-TLD1 LCD Screen Returns:

1. Change of Mind or Incorrect Purchase: If you wish to return the item due to a change of mind or an incorrect purchase, please be aware that you will be responsible for reimbursing any out-of-pocket delivery costs incurred by the seller. These costs will be deducted from your refund.

2. Faulty Item Claims: In cases where you claim a fault with the item but upon inspection, no fault is found, you will be required to reimburse the seller for any out-of-pocket delivery costs incurred. Additionally, if applicable, an inspection/technical services fee may also be charged.

3. Condition of Returns: All returns must be in their original condition. Items that are returned in a condition other than their original state, including but not limited to misuse or damage, will be refused.

LP140WD1-TLD1 LCD Panel FAQ :

Q: How long is the warranty of LP140WD1-TLD1 ?

A: 90days warranty .

Q: How can I trace my order of LP140WD1-TLD1 ?

A: we will give you tracking number then you can trace your order from website.

Q: Can I pay my goods LP140WD1-TLD1 by credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: Do you accept sample orders for LP140WD1-TLD1 ?

A: Of course!sample order is welcome !
