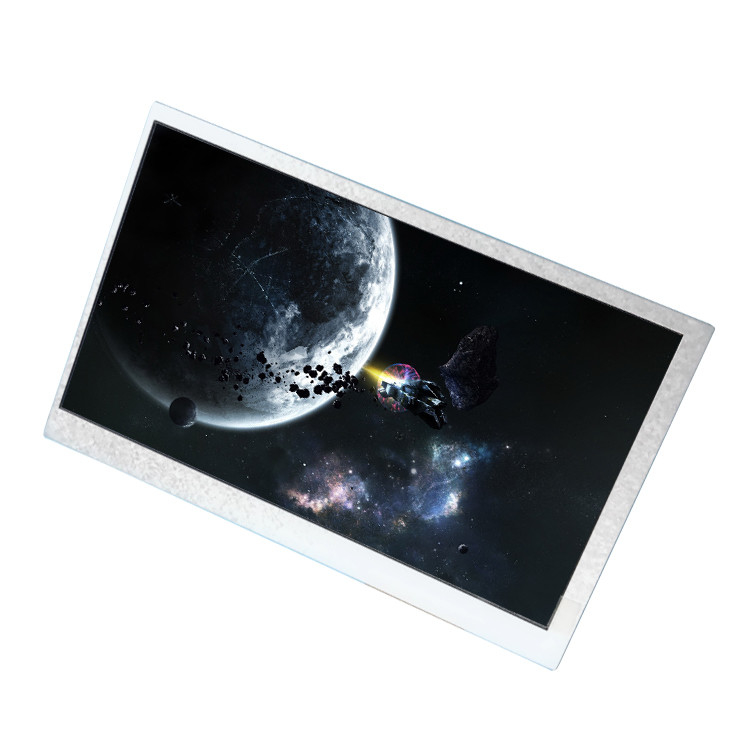

7.0 inch TFT LCD Display Module LCD Screen LCD Panel HSD070IDW1-A23-0299
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD070IDW1-A23-0299 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | HSD070IDW1-A23-0299 | Diagonal Size: | 7.0" |
|---|---|---|---|
| Resolution: | 800(RGB)×480, WVGA 134PPI | Pixel Format: | RGB Vertical Stripe |
| Viewing Angle: | 70/70/50/60 (Typ.)(CR≥10) | Work Mode: | TN, Normally White, Transmissive |
| Response: | 5/20 (Typ.)(Tr/Td) Ms | Transmissivity: | 5.8% (Typ.)(with Polarizer) |
| Used For: | Digital Photo Frame / Portable DVD Player | Driver IC List: | Built-in COG 2 Source + 1 Gate Chips |
Product Description
7.0 inch TFT LCD Display Module LCD Screen LCD Panel HSD070IDW1-A23-0299
HSD070IDW1-A23-0299 LCD Panel Product details :
| Brand | HannStar |
| Model P/N | HSD070IDW1-A23-0299 |
| Diagonal Size | 7.0" |
| Panel Type | a-Si TFT-LCD, CELL, FOG |
| Resolution | 800(RGB)×480, WVGA 134PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 153.6(W)×86.64(H) mm |
| Bezel Opening | - |
| Outline (mm) | 162.5×97.89×1.43 (H×V×D) |
| Treatment | - |
| Luminance | 0 cd/m² |
| Contrast Ratio | 500 : 1 (Typ.) (TM) |
| Viewing Angle | 70/70/50/60 (Typ.)(CR≥10) |
| Response | 5/20 (Typ.)(Tr/Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Glass Thickness | 0.50+0.50 mm |
| Transmissivity | 5.8% (Typ.)(with Polarizer) |
| Color Depth | 262K/16.7M 49%NTSC |
| Backlight | No B/L |
| Mass | - |
| Used for | Digital Photo Frame,Portable DVD Player |
| Refresh Rate | - |
| Touchscreen | Without |
| Driver IC list | Built-in COG 2 source + 1 gate chips |
| Signal Type | Parallel RGB (1 ch, 6/8-bit), FPC60 pins |
| Voltage Supply | 3.0/10.0/15/-7V (Typ.)(VCC/AVDD/VGH/VGL) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 65 °C |
| 7.0 inch TFT LCD Display Module LCD Screen LCD Panel HSD070IDW1-A23-0299 | |
