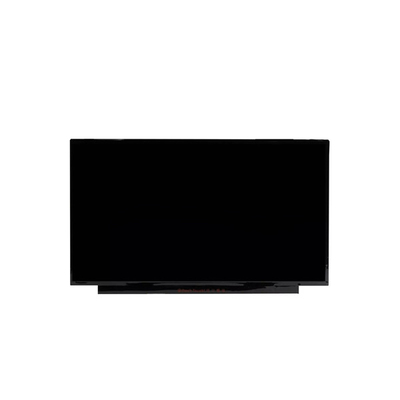

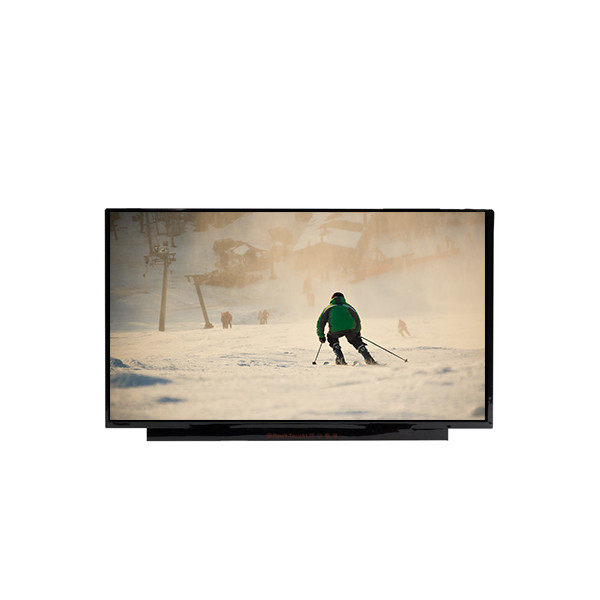

11.6 inch NV116WHM-T1C lcd screen display for Slim Laptop
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | NV116WHM-T1C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | NV116WHM-T1C | Diagonal Size: | 11.6" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, Assembly | Resolution: | 1366(RGB)×768, WXGA 135PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 256.125(W)×144(H) Mm |
| Designed For: | Laptop& Meters | Shape Style: | Slim (PCBA Flat, T≤3.2mm) |
| Display Colors: | 262K 50%NTSC | Lamp Type: | 8S3PWLED, 15K Hours, With LED Driver |
Product Description
11.6 inch NV116WHM-T1C lcd screen display for Slim Laptop
NV116WHM-T1C LCD Panel Product details :
| Brand | BOE |
| Model P/N | NV116WHM-T1C |
| Diagonal Size | 11.6" |
| Panel Type | a-Si TFT-LCD, Assembly |
| Resolution | 1366(RGB)×768, WXGA 135PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 256.125(W)×144(H) mm |
| Bezel Opening | - |
| Outline Size | 284.85(W)×189.84(H)×4.2(D) mm |
| Surface | Hard coating (7H) |
| Brightness | 220 cd/m² (Typ.) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Display Mode | ADS, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 30 (Typ.)(Tr+Td) |
| Display Colors | 262K 50%NTSC |
| Lamp Type | 8S3PWLED, 15K hours, With LED Driver |
| Frequency | 60Hz |
| Touch Screen | On-Cell Touch, I²C |
| Shape Style | Slim (PCBA Flat, T≤3.2mm) |
| Application | Laptop |
| Signal Interface | eDP (2 Lanes), 40 pinsConnector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
NV116WHM-T1C LCD Panel Shipping and Package :
Q: If I order NV116WHM-T1C now,when will you ship the goods ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Do you accept sample orders for NV116WHM-T1C ?
A: Of course!sample order is welcome !
Q: Can you give me a discount if I need a large quantity of NV116WHM-T1C ?
A: Of course!If you make a large order, we will give you a discount.
Q:Can You declare my order of NV116WHM-T1C at a very low value ?
A: Yes , we can . pls inform us before shipping .
Q: How can I trace my order of NV116WHM-T1C ?
A: we will give you tracking number then you can trace your order from website.
Q: Can I pay my order of NV116WHM-T1C via credit card ?
A: Yes!you can use your credit card through your Paypal account.
