LCD Touch Panel Display

14.6 inch C146HAX01.1 1920*1080 lcd screen for Automotive Display

All Category

Floor Standing Digital Signage

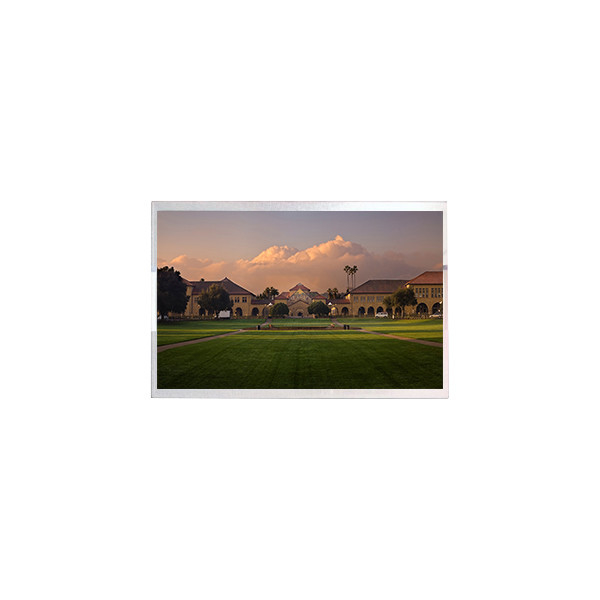

14.6 inch C146HAX01.1 1920*1080 lcd screen for Automotive Display

Brand Name:	AUO
Model Number:	C146HAX01.1
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

C146HAX01.1

Diagonal Size:

14.6"

Panel Type:

LTPS TFT-LCD, CELL , FOG

Resolution:

1920(RGB)×1080, FHD 150PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

323.136(W)×181.764(H) Mm

Designed For:

Automotive Display

Touchscreen:

In-Cell Touch

Interface Type:

LVDS (2 Ch, 8-bit) , 240 Pins FPC

Power Supply:

3.3/6.6/-6.5/12/-10.5V (Typ.)(VDD1/VSP/VSN/VGH/VGL)

Supply Ability:

100000 Unit/Units per Month

Product Description

14.6 inch C146HAX01.1 1920*1080 lcd screen for Automotive Display

C146HAX01.1 LCD Panel Product details :

Brand	AUO
Model P/N	C146HAX01.1
Diagonal Size	14.6"
Panel Type	LTPS TFT-LCD, CELL , FOG
Resolution	1920(RGB)×1080, FHD 150PPI
Pixel Format	RGB Vertical Stripe
Active Area	323.136(W)×181.764(H) mm
Bezel Opening	-
Outline Dim.	328.136(H)×191.414(V) ×0.77(D) mm
Treatment	Hard coating
Luminance	0 cd/m²
Contrast Ratio	1500:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	30 (Max.)(Tr+Td)
Viewing Angle	88/88/88/88 (Typ.)(CR≥10)
Operating Mode	AHVA, Normally Black, Transmissive
Plate Thickness	0.25+0.25 mm
Transmittance	4.7% (Typ.)(with Polarizer)
Support Color	16.7M 72% NTSC
Light Source	No B/L
Weight	112g (Typ.)
Designed For	Automotive Display
Frame Rate	60Hz
Touch Panel	In-Cell Touch
D-IC Detail	COG Built-in HX83192C2 or ILI66002
Interface Type	LVDS (2 ch, 8-bit) , 240 pins FPC
Power Supply	3.3/6.6/-6.5/12/-10.5V (Typ.)(VDD1/VSP/VSN/VGH/VGL)
Environment	Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 90 °C

C146HAX01.1 LCD Panel Attention:

Before placing an order for purchase, the buyer must confirm the screen model needs.

If you are not sure about the model of the screen, please contact us at the first time.

We will distinguish and prevent you from buying the wrong screen.

If the buyer's mistake let screen make the screen unusable, all the freight incurred shall be borne by the buyer.

C146HAX01.1 LCD Panel Shipping and Package :

C146HAX01.1 LCD Panel Shipping Information :

Shipping Agency: We utilize a reputable and efficient shipping agency known for its reliability and professionalism. Our goal is to ensure fast and secure delivery of your order.

Delivery Time: Typically, our standard delivery time ranges from 3 to 7 business days for shipments worldwide. This timeframe is subject to regional variations and potential delays beyond our control.

Additional Charges: Please note that import duties, taxes, and other related charges are not included in the item price or shipping charges. These charges, if applicable, are the responsibility of the buyer and may be assessed upon delivery by customs authorities in the destination country.

C146HAX01.1 LCD Panel Return Note :

Model Confirmation: When placing an order for our LCD screen, please ensure that the model number matches exactly with the one you intend to replace. This is crucial to avoid purchasing the wrong product that may not function properly in your device.

Installation Caution: Before confirming that the screen does not work properly, refrain from using adhesive to attach our screen to your equipment. If adhesive is applied and the screen is installed, we regret that we cannot accept returns or provide refunds. This precaution is essential to ensure that our products remain in their original condition for potential troubleshooting or returns.

C146HAX01.1 LCD Panel FAQ :

Q: Can you give me a discount if I need a large quantity of C146HAX01.1 ?

A: Of course!If you make a large order, we will give you a discount.

Q: How can I trace my order of C146HAX01.1 ?

A: we will give you tracking number then you can trace your order from website.

Q: How to make payment of C146HAX01.1 ?

A: We accept T/T , Paypal , western union .

Q: Do you accept sample orders of C146HAX01.1 ?

A: Of course!sample order is welcome !
