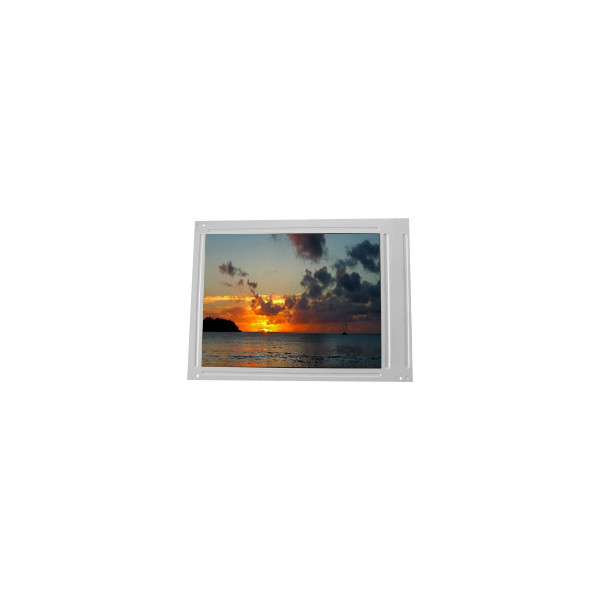

New LM17SGFNZ06 1.7 inch 128*141 lcd screen for PDA
Product Details:
| Place of Origin: | China |
| Brand Name: | Sharp |
| Model Number: | LM17SGFNZ06 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LM17SGFNZ06 | Diagonal Size: | 1.7" |
|---|---|---|---|
| Panel Type: | CSTN-LCD, LCM | Resolution: | 128(RGB)×141 112PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 28.788(W)×31.705(H) Mm |
| Designed For: | Handheld & PDA | Touchscreen: | Without |
Product Description
New LM17SGFNZ06 1.7 inch 128*141 lcd screen for PDA
LM17SGFNZ06 LCD Panel Product details :
| Brand | Sharp |
| Model P/N | LM17SGFNZ06 |
| Diagonal Size | 1.7" |
| Panel Type | CSTN-LCD, LCM |
| Resolution | 128(RGB)×141 112PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 28.788(W)×31.705(H) mm |
| Bezel Opening | 32.6(W)×33.7(H) mm |
| Outline(mm) | 38.6 × 54.3× 5.65 (H×V×D) |
| Treatment | - |
| Luminance | 20 cd/m² (Typ.) |
| Contrast Ratio | 15 : 1 (Typ.) (TM) 12:1 (Typ.) (RF) |
| Viewing Angle | 45/45/35/35 (Typ.)(CR≥2) |
| Response | 220/110 (Typ.)(Tr/Td) ms |
| Good View at | - |
| Work Mode | STN, Normally Black, Transflective |
| Color Depth | Color 4%NTSC |
| Backlight | 1S2PWLED, No Driver |
| Mass | 9.00g |
| Used for | Handheld & PDA |
| Refresh Rate | - |
| Touchscreen | Without |
| Signal Type | CPU, 24 pins Pad |
| Voltage Supply | 2.9V (Typ.) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 60 °C |
| New LM17SGFNZ06 1.7 inch 128*141 lcd screen for PDA | |
LM17SGFNZ06 LCD Panel Shipping and Package :
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
Q: What does "We may ship a 100% compatible part number for your screen" mean?
A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.
Q: How long is the warranty of LM17SGFNZ06 ?
A: NEW Product warranty is 90 days.
Q: How to order lcd panel LM17SGFNZ06 ?
A: Tell us the quantity you need ,Then we will make a PI for you to confirm the order details ,When we confirmed everything, you can arrange the payment ,After we received the payment, we will ship goods to you within 1-2day.
