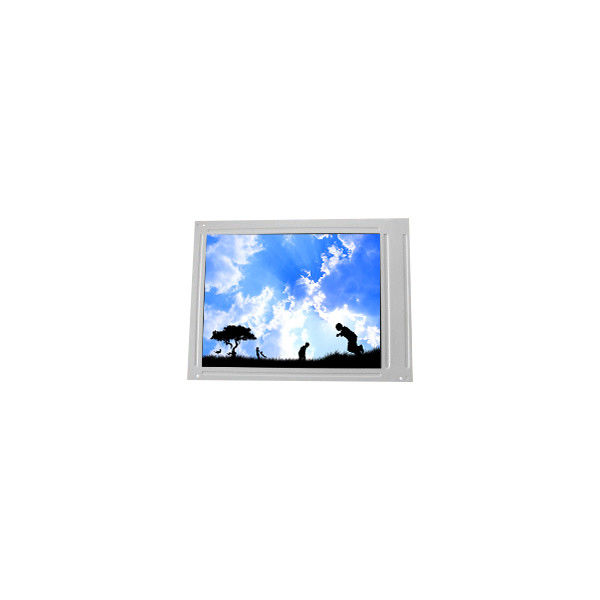

1024*768 LM14X82 13.8 inch 120Hz lcd screen For Industrial
Product Details:
| Place of Origin: | China |
| Brand Name: | Sharp |
| Model Number: | LM14X82 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LM14X82 | Diagonal Size: | 13.8" |
|---|---|---|---|
| Panel Type: | CSTN-LCD, LCM | Resolution: | 1024(RGB)×768, XGA 93PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 279.527(W)×209.639(H) Mm |
| Designed For: | Industrial | Touch Screen: | Without |
Product Description
1024*768 LM14X82 13.8 inch 120Hz lcd screen For Industrial
LM14X82 LCD Panel Product details :
| Brand | Sharp |
| Model P/N | LM14X82 |
| Diagonal Size | 13.8" |
| Panel Type | CSTN-LCD, LCM |
| Resolution | 1024(RGB)×768, XGA 93PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 279.527(W)×209.639(H) mm |
| Bezel Opening | 284.2(W)×214.3(H) mm |
| Outline Size | 330(W)×242(H)×16(D) mm |
| Brightness | 200 cd/m² (Typ.) |
| Viewing Angle | 30/30/25/15 (Typ.)(CR≥5) |
| Best View on | - |
| Display Colors | Color |
| Frequency | 120Hz |
| Weight | 1.40Kgs |
| Surface | - |
| Contrast Ratio | 35:1 (Typ.) (TM) |
| Display Mode | STN, Normally Black, Transmissive |
| Response Time | 220/80 (Typ.)(Tr/Td) |
| Lamp Type | 4 pcs CCFL , 25K hours , With Inverter |
| Touch Screen | Without |
| Application | Industrial |
| Signal Interface | Parallel Data, 40 pinsConnector |
| Environment | Operating Temp.: 0 ~ 40 °C ;Storage Temp.: -25 ~ 60 °C |
| 1024*768 LM14X82 13.8 inch 120Hz lcd screen For Industrial | |
LM14X82 LCD Panel Shipping and Package :
Q: What happen if the lcd panel LM14X82 I received can't work ?
A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: Are you manufactory or trade company?
A: Shenzhen YONG SHENG INNOVATIVE TECHNOLOGY Co, Ltd is a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: When will my order LM14X82 ship?
A: The order are shipped within 1-2 working days after received the payment.
Q:Can you declared low value for my order when shipping?
A:Yes, We can do it for you if you need.
