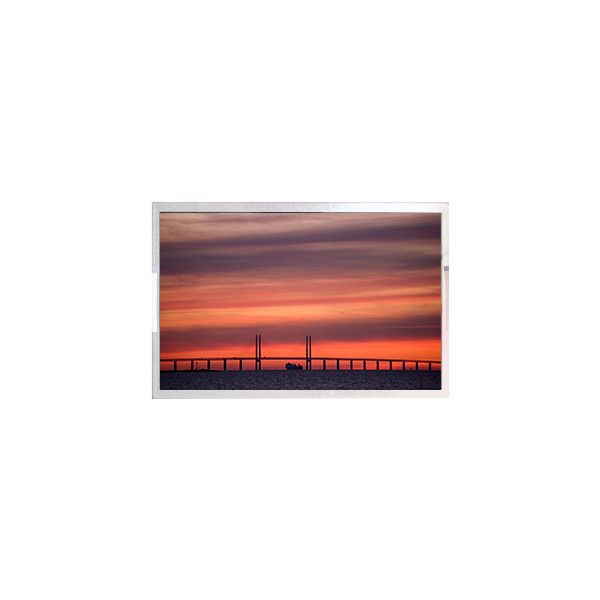

F080A54-6T4 8.0 inch lcd screen display
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | F080A54-6T4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | F080A54-6T4 | Diagonal Size: | 8.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL , Q-CUT (Full Cell) | Resolution: | 800(RGB)×1280, WXGA 188PPI |
| Active Area: | 107.64(W)×172.224(H) Mm | Outline Dim.: | 111.24(W)×180.524(H) ×0.8(D) Mm |
| Transmissivity: | 5.87% (Typ.)(with Polarizer) | Designed For: | Pad & Tablet |
| Support Color: | 16.7M 59% NTSC | Frame Rate: | 60Hz |
Product Description
F080A54-6T4 8.0 inch lcd screen display
F080A54-6T4 LCD Panel Product details :
| Brand | Innolux |
| Model P/N | F080A54-6T4 |
| Diagonal Size | 8.0" |
| Panel Type | a-Si TFT-LCD, CELL , Q-CUT (Full Cell) |
| Resolution | 800(RGB)×1280, WXGA 188PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 107.64(W)×172.224(H) mm |
| Bezel Opening | - |
| Outline Dim. | 111.24(W)×180.524(H) ×0.8(D) mm |
| Treatment | Without Polarizer |
| Luminance | 0 cd/m² |
| Contrast Ratio | 1500:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 30 (Typ.)(Tr+Td) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Operating Mode | AAS, Normally Black, Transmissive |
| Glass Depth | 0.40+0.40 mm |
| Transmissivity | 5.87% (Typ.)(with Polarizer) |
| Support Color | 16.7M 59% NTSC |
| Light Source | No B/L |
| Weight | - |
| Designed For | Pad & Tablet |
| Frame Rate | 60Hz |
| Touch Panel | In-Cell Touch, I²C |
| Interface Type | COG Suggest NT36523B, FT8201AB, NT36523B, HX83102-E, ILI9881T |
| Environment | Operating Temp.: -10 ~ 60 °C ; Storage Temp.: -20 ~ 70 °C |
F080A54-6T4 LCD Panel Attention:
Before placing an order for purchase, the buyer must confirm the screen model needs.
If you are not sure about the model of the screen, please contact us at the first time.
We will distinguish and prevent you from buying the wrong screen.
If the buyer's mistake let screen make the screen unusable, all the freight incurred shall be borne by the buyer.
F080A54-6T4 LCD Panel Shipping and Package :
F080A54-6T4 LCD Panel Shipping Information :
Shipping Agency: We utilize a reputable and efficient shipping agency known for its reliability and professionalism. Our goal is to ensure fast and secure delivery of your order.
Delivery Time: Typically, our standard delivery time ranges from 3 to 7 business days for shipments worldwide. This timeframe is subject to regional variations and potential delays beyond our control.
Additional Charges: Please note that import duties, taxes, and other related charges are not included in the item price or shipping charges. These charges, if applicable, are the responsibility of the buyer and may be assessed upon delivery by customs authorities in the destination country.
F080A54-6T4 LCD Panel Return Note :
Model Confirmation: When placing an order for our LCD screen, please ensure that the model number matches exactly with the one you intend to replace. This is crucial to avoid purchasing the wrong product that may not function properly in your device.
Installation Caution: Before confirming that the screen does not work properly, refrain from using adhesive to attach our screen to your equipment. If adhesive is applied and the screen is installed, we regret that we cannot accept returns or provide refunds. This precaution is essential to ensure that our products remain in their original condition for potential troubleshooting or returns.
F080A54-6T4 LCD Panel FAQ :
Q: Can you test the lcd panel F080A54-6T4 before shipping ?
A: Yes , of course , don't worry , our item was tested ok before shipping .
Q: Do you accept the sample order F080A54-6T4 ?
A: Yes , sample order is welcome.
Q: Can you declared low value of my order F080A54-6T4 ?
A: Yes , we can , you can tell us before shipping .
Q: How long the warranty of lcd F080A54-6T4 ?
A: 90 days .
