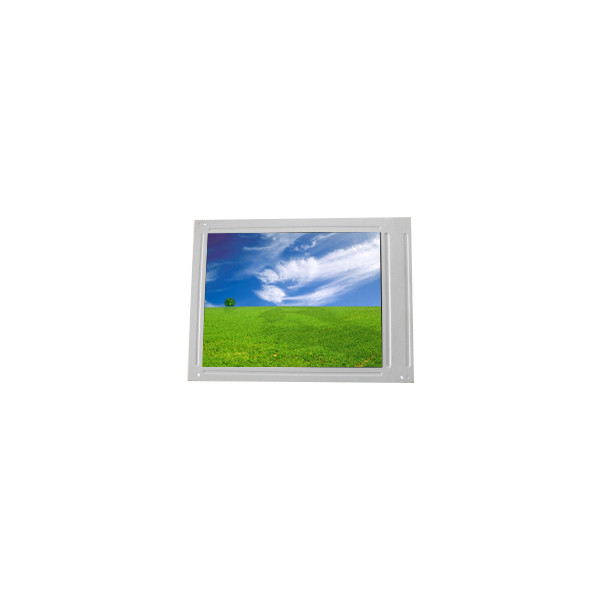

6.5 inch LM7M632R lcd panel 75Hz lcd screen module
Product Details:
| Place of Origin: | China |
| Brand Name: | Sharp |
| Model Number: | LM7M632R |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LM7M632R | Diagonal Size: | 6.5" |
|---|---|---|---|
| Panel Type: | CSTN-LCD, LCM | Resolution: | 640(RGB)×240, HVGA 105PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 153.58(W)×57.58(H) Mm |
| Brightness: | 150 Cd/m² (Typ.) | Contrast Ratio: | 30:1 (Typ.) (TM) |
| Designed For: | Industrial | Touch Screen: | Without |
Product Description
6.5 inch LM7M632R lcd panel 75Hz lcd screen module
LM7M632R LCD Panel Product details :
| Brand | Sharp |
| Model P/N | LM7M632R |
| Diagonal Size | 6.5" |
| Panel Type | CSTN-LCD, LCM |
| Resolution | 640(RGB)×240, HVGA 105PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 153.58(W)×57.58(H) mm |
| Bezel Opening | 157.6(W)×61.6(H) mm |
| Outline Dim. | 173(H)×73(V)×7(D) mm |
| Treatment | - |
| Luminance | 150 cd/m² (Typ.) |
| Contrast Ratio | 30:1 (Typ.) (TM) |
| View Direction | - |
| Response Time | 270/80 (Typ.)(Tr/Td) |
| Viewing Angle | 30/30/15/25 (Typ.)(CR≥5) |
| Operating Mode | STN, Normally Black, Transmissive |
| Support Color | Color |
| Light Source | CCFL [1 pcs], 10K hours, W/O Driver |
| Weight | 120g (Typ.) |
| Designed For | Industrial |
| Frame Rate | 75Hz |
| Touch Panel | Without |
| Interface Type | Parallel Data (1ch, 8-bit), 20 pinsConnector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 40 °C ; Storage Temperature: -25 ~ 60 °C |
| 6.5 inch LM7M632R lcd panel 75Hz lcd screen module | |
LM7M632R LCD Panel Attention:
Before placing an order for purchase, the buyer must confirm the screen model needs.
If you are not sure about the model of the screen, please contact us at the first time.
We will distinguish and prevent you from buying the wrong screen.
If the buyer's mistake let screen make the screen unusable, all the freight incurred shall be borne by the buyer.
LM7M632R LCD Panel Shipping and Package :
LM7M632R LCD Panel Shipping Information :
Shipping Agency: We utilize a reputable and efficient shipping agency known for its reliability and professionalism. Our goal is to ensure fast and secure delivery of your order.
Delivery Time: Typically, our standard delivery time ranges from 3 to 7 business days for shipments worldwide. This timeframe is subject to regional variations and potential delays beyond our control.
Additional Charges: Please note that import duties, taxes, and other related charges are not included in the item price or shipping charges. These charges, if applicable, are the responsibility of the buyer and may be assessed upon delivery by customs authorities in the destination country.
LM7M632R LCD Panel Return Note :
Model Confirmation: When placing an order for our LCD screen, please ensure that the model number matches exactly with the one you intend to replace. This is crucial to avoid purchasing the wrong product that may not function properly in your device.
Installation Caution: Before confirming that the screen does not work properly, refrain from using adhesive to attach our screen to your equipment. If adhesive is applied and the screen is installed, we regret that we cannot accept returns or provide refunds. This precaution is essential to ensure that our products remain in their original condition for potential troubleshooting or returns.
LM7M632R LCD Panel FAQ :
Q: How to make payment for LM7M632R ?
A: We accept T/T , Paypal , western union .
Q: Can I pay my goods LM7M632R by credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How do you ship my goods sharp LM7M632R ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.
Q: How long will I receive my goods of LM7M632R ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
