320*240 LM6Q31 5.5 inch LCD screen for Industrial
Product Details:
| Place of Origin: | China |
| Brand Name: | Sharp |
| Model Number: | LM6Q31 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LM6Q31 | Diagonal Size: | 5.5" |
|---|---|---|---|
| Panel Type: | CSTN-LCD, LCM | Resolution: | 320(RGB)×240, QVGA 72PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 111.36(W)×83.52(H) Mm |
| Application: | Industrial | Touchscreen: | Without |
Product Description

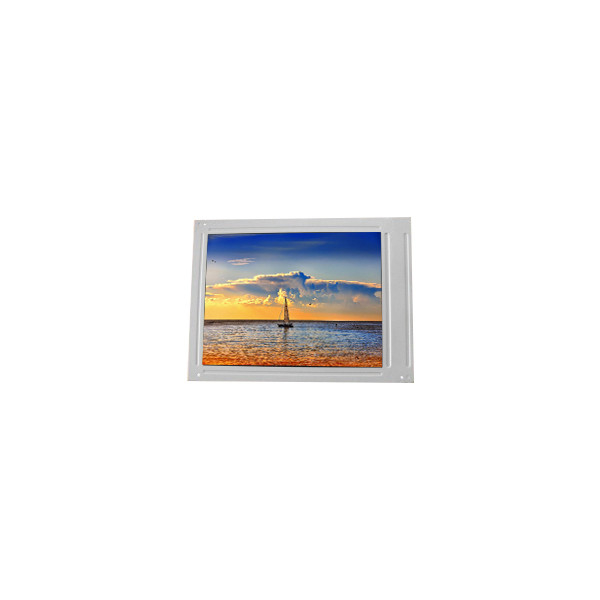

320*240 LM6Q31 5.5 inch LCD screen for Industrial
LM6Q31 LCD Panel Product details :
| Brand | Sharp |
| Model P/N | LM6Q31 |
| Diagonal Size | 5.5" |
| Panel Type | CSTN-LCD, LCM |
| Resolution | 320(RGB)×240, QVGA 72PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 111.36(W)×83.52(H) mm |
| Bezel Opening | 115.6(W)×87.6(H) mm |
| Outline Size | 145(W)×114(H)×14(D) mm |
| Surface | - |
| Brightness | 150 cd/m² (Typ.) |
| Contrast Ratio | 30:1 (Typ.) (TM) |
| Viewing Angle | - |
| Display Mode | STN, Normally Black, Transmissive |
| Best View on | - |
| Response Time | 80/40 (Typ.)(Tr/Td) |
| Display Colors | 4096 |
| Lamp Type | 1 pcsCCFL, Without Driver |
| Frequency | - |
| Touch Screen | Without |
| Panel Weight | 210g (Typ.) |
| Application | Industrial |
| Signal Interface | TTL (1 ch, 4-bit), 24 pins Connector |
| Input Voltage | 5.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 60 °C ;Storage Temp.: -25 ~ 65 °C |
| 320*240 LM6Q31 5.5 inch LCD screen for Industrial | |
LM6Q31 Pre-Order Check:
Before proceeding with your order, kindly verify if your machine model is compatible with this specific LCD screen. If you're uncertain, please reach out to us, and we'll promptly assist you.
Note:
Some of the screen backplates may not be entirely new, potentially showing signs of dirt or adhesive residue. Please take note of this!
LM6Q31 LCD Panel Shipping and Package :
LM6Q31 Shipping Information:
Please ensure that the model you've ordered matches exactly with the model you require. We will ship according to the model specified in your order.
Verify that the shipping address provided is accurate. Shipments will be sent to the address listed on the order. If you need delivery to a different address, please email us immediately after making the payment.
Shipments will be processed within 3 business days of receiving payment.
Each LCD panel undergoes rigorous testing before shipping, ensuring quality. Additionally, we take utmost care in packaging to ensure safe delivery.
LCD screens will be shipped using EMS/DHL/UPS based on location or customer preference.
Attention to Russian Customers:
For shipments to Russia, we can only use EMS. Please note that EMS delivery typically takes longer to arrive. We appreciate your patience during this time.
LM6Q31 About the Goods:
Upon receiving your item, please confirm receipt. In the event that the item is damaged, kindly contact us immediately. Send us a photo of the damage so we can assess the situation and offer you the best solution.
While we guarantee timely delivery, please note that we do not have control over the express delivery time. Our dedicated sales staff will dispatch the Air Waybill (AWB) for your delivered goods on the following business day. You can track the AWB on the designated website provided to you. Alternatively, you can inquire about the AWB by contacting your local branch of the courier company handling the shipment.
LM6Q31 LCD Panel FAQ :
Q: Can You declare my order of LM6Q31 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can you give me a discount if I need a large quantity of LM6Q31 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders of LM6Q31 ?
A: Of course!sample order is welcome !
Q: Can I pay my order of LM6Q31 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
