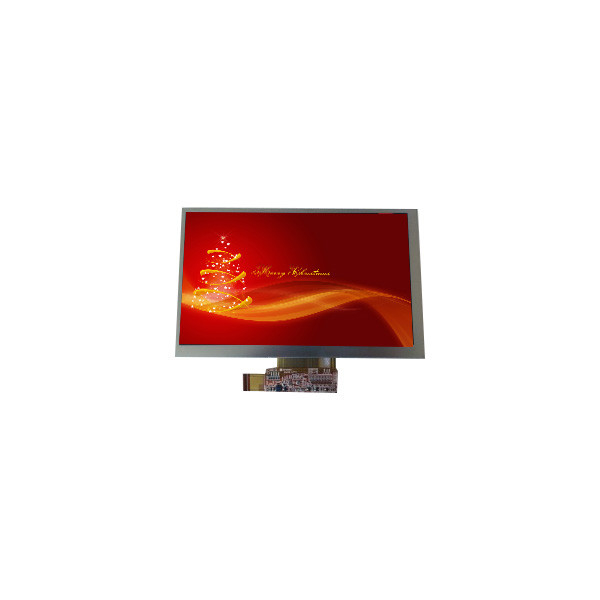

TM070DDH09 7.0 inch 1024*600 LCD screen for Portable Navigation

Brand Name:	TIANMA
Model Number:	TM070DDH09
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

TM070DDH09

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1024(RGB)×600, WSVGA 169PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

153.6(W)×90(H) Mm

Application:

Pad & Tablet、Portable Navigation、Digital Photo Frame、Portable DVD Player、MID UMPC

Light Source:

WLED [3S6P], 10K Hours, W/O Driver

Power Supply:

3.3V (Typ.)

Environment:

Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C

Supply Ability:

100000 Unit/Units per Month

Product Description

TM070DDH09 7.0 inch 1024*600 LCD screen for Portable Navigation

TM070DDH09 LCD Panel Product details :

Brand	TIANMA
Model P/N	TM070DDH09
Diagonal Size	7.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1024(RGB)×600, WSVGA 169PPI
Pixel Format	RGB Vertical Stripe
Active Area	153.6(W)×90(H) mm
Bezel Opening	156.2(W)×92.6(H) mm
Outline Dim.	167.25(W)×104.65(H)×2.9(D) mm
Treatment	Antiglare
Luminance	350 cd/m² (Typ.)
Contrast Ratio	500:1 (Typ.) (TM)
View Direction	12 o'clock
Response Time	20 (Typ.)(Tr+Td)
Viewing Angle	75/75/70/75 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	262K/16.7M 50%NTSC
Light Source	WLED [3S6P], 10K hours, W/O Driver
Weight	105g
Designed For	Pad & Tablet,Portable Navigation,Digital Photo Frame,Portable DVD Player,MID UMPC
Frame Rate	60Hz
Touch Panel	Without
Interface Type	LVDS (1 ch, 6/8-bit), 39 pinsFPC
Power Supply	3.3V (Typ.)
Environment	Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C

TM070DDH09 Pre-Order Check:

Before proceeding with your order, kindly verify if your machine model is compatible with this specific LCD screen. If you're uncertain, please reach out to us, and we'll promptly assist you.

Note:

Some of the screen backplates may not be entirely new, potentially showing signs of dirt or adhesive residue. Please take note of this!

TM070DDH09 LCD Panel Shipping and Package :

TM070DDH09 Shipping Information:

Please ensure that the model you've ordered matches exactly with the model you require. We will ship according to the model specified in your order.

Verify that the shipping address provided is accurate. Shipments will be sent to the address listed on the order. If you need delivery to a different address, please email us immediately after making the payment.

Shipments will be processed within 3 business days of receiving payment.

Each LCD panel undergoes rigorous testing before shipping, ensuring quality. Additionally, we take utmost care in packaging to ensure safe delivery.

LCD screens will be shipped using EMS/DHL/UPS based on location or customer preference.

Attention to Russian Customers:

For shipments to Russia, we can only use EMS. Please note that EMS delivery typically takes longer to arrive. We appreciate your patience during this time.

TM070DDH09 About the Goods:

Upon receiving your item, please confirm receipt. In the event that the item is damaged, kindly contact us immediately. Send us a photo of the damage so we can assess the situation and offer you the best solution.

While we guarantee timely delivery, please note that we do not have control over the express delivery time. Our dedicated sales staff will dispatch the Air Waybill (AWB) for your delivered goods on the following business day. You can track the AWB on the designated website provided to you. Alternatively, you can inquire about the AWB by contacting your local branch of the courier company handling the shipment.

TM070DDH09 LCD Panel FAQ :

Q: How long is the warranty of TM070DDH09 ?

A: 90days warranty .

Q: Can you give me a discount if I need a large quantity of TM070DDH09 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Do you accept sample orders for TM070DDH09 ?

A: Of course!sample order is welcome !

Q: How long will I receive my goods of TM070DDH09 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
