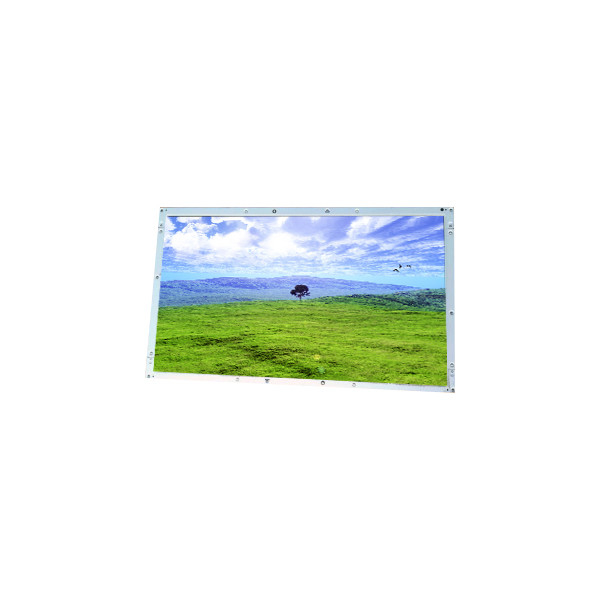

LK695D3LA9X 1920*1080 70 inch LCD screen for Digital Signage

Brand Name:	Sharp
Model Number:	LK695D3LA9X
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LK695D3LA9X

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1920(RGBY)×1080, FHD 31PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

1538.88(W)×865.62(H) Mm

Application:

Digital Signage、Interactive Whiteboard

Touch Screen:

Without

Supply Ability:

100000 Unit/Units per Month

Product Description

LK695D3LA9X 1920*1080 70 inch LCD screen for Digital Signage

LK695D3LA9X LCD Panel Product details :

Brand	Sharp
Model P/N	LK695D3LA9X
Diagonal Size	70"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×1080, FHD 31PPI
Pixel Format	RGB Vertical Stripe
Active Area	1538.88(W)×865.62(H) mm
Bezel Opening	1544.0(W)×876.8(H) mm
Outline Size	1566(W)×901.8(H)×29.6(D) mm
Surface	Antiglare, Hard coating (2H)
Brightness	500 cd/m² (Typ.)
Contrast Ratio	5000:1 (Typ.) (TM)
Viewing Angle	88/88/88/88 (Typ.)(CR≥10)
Display Mode	ASV, Normally Black, Transmissive
Best View on	Symmetry
Response Time	4/6 (Typ.)(Tr/Td)
Display Colors	1.07B 76%NTSC
Lamp Type	WLED, 50K hours, With LED Driver
Frequency	120Hz
Touch Screen	Without
Panel Weight	26.0±1.5Kgs
Application	Digital Signage,Interactive Whiteboard
Signal Interface	LVDS (4 ch, 10-bit), 92 pinsConnector
Input Voltage	12.0V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -25 ~ 65 °C
LK695D3LA9X 1920*1080 70 inch LCD screen for Digital Signage

LK695D3LA9X Pre-Order Check:

Before proceeding with your order, kindly verify if your machine model is compatible with this specific LCD screen. If you're uncertain, please reach out to us, and we'll promptly assist you.

Note:

Some of the screen backplates may not be entirely new, potentially showing signs of dirt or adhesive residue. Please take note of this!

LK695D3LA9X LCD Panel Shipping and Package :

LK695D3LA9X Shipping Information:

Please ensure that the model you've ordered matches exactly with the model you require. We will ship according to the model specified in your order.

Verify that the shipping address provided is accurate. Shipments will be sent to the address listed on the order. If you need delivery to a different address, please email us immediately after making the payment.

Shipments will be processed within 3 business days of receiving payment.

Each LCD panel undergoes rigorous testing before shipping, ensuring quality. Additionally, we take utmost care in packaging to ensure safe delivery.

LCD screens will be shipped using EMS/DHL/UPS based on location or customer preference.

Attention to Russian Customers:

For shipments to Russia, we can only use EMS. Please note that EMS delivery typically takes longer to arrive. We appreciate your patience during this time.

LK695D3LA9X About the Goods:

Upon receiving your item, please confirm receipt. In the event that the item is damaged, kindly contact us immediately. Send us a photo of the damage so we can assess the situation and offer you the best solution.

While we guarantee timely delivery, please note that we do not have control over the express delivery time. Our dedicated sales staff will dispatch the Air Waybill (AWB) for your delivered goods on the following business day. You can track the AWB on the designated website provided to you. Alternatively, you can inquire about the AWB by contacting your local branch of the courier company handling the shipment.

LK695D3LA9X LCD Panel FAQ :

Q: Can you declared low value of my order LK695D3LA9X ?

A: Yes , we can , you can tell us before shipping .

Q: How long the warranty of lcd LK695D3LA9X ?

A: 90 days .

Q: Can you test the lcd panel LK695D3LA9X before shipping ?

A: Yes , of course , don't worry , our item was tested ok before shipping .

Q: Do you accept the sample order LK695D3LA9X ?

A: Yes , sample order is welcome.
