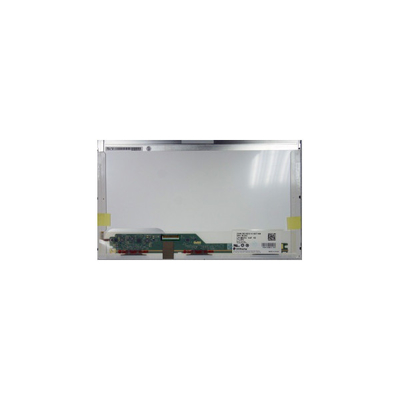

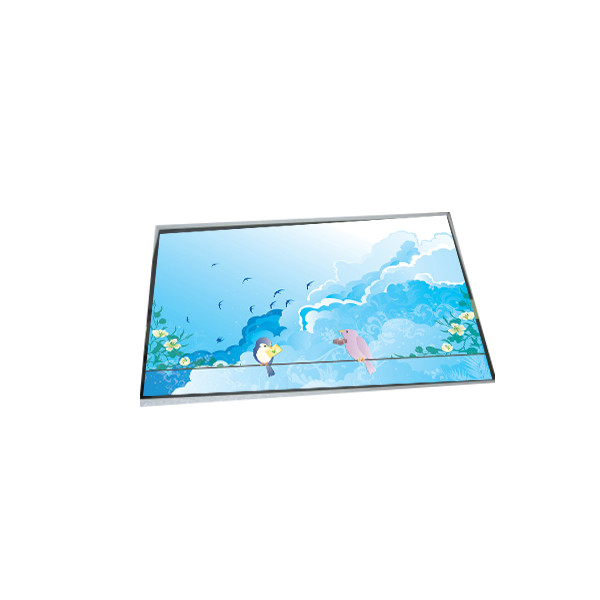

1366*768 LP140WH4-TLB1 14.0 inch 60Hz LCD screen for Laptop
Product Details:
| Place of Origin: | China |
| Brand Name: | LG Display |
| Model Number: | LP140WH4-TLB1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LP140WH4-TLB1 | Diagonal Size: | 14.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1366(RGB)×768, WXGA 112PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 309.399(W)×173.952(H) Mm |
| Application: | Laptop | Touch Screen: | Without |
Product Description
1366*768 LP140WH4-TLB1 14.0 inch 60Hz LCD screen for Laptop
LP140WH4-TLB1 LCD Panel Product details :
| Brand | LG Display |
| Model P/N | LP140WH4-TLB1 |
| Diagonal Size | 14.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1366(RGB)×768, WXGA 112PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 309.399(W)×173.952(H) mm |
| Bezel Opening | 316.4(W)×177.4(H) mm |
| Outline(mm) | 323.5(W)×192(H)×5.2(D) |
| Luminance | 200 (Typ.)(cd/m²) |
| Viewing Angle | 45/45/15/35 (Typ.)(CR≥10) |
| Good View at | 6 o'clock |
| Color Depth | 262K 45% NTSC |
| Outline Shape | Wedge (PCBA Bent, T≥5.2mm) |
| Refresh Rate | 60Hz |
| Treatment | Antiglare, Hard coating (3H) |
| Contrast Ratio | 300 : 1 (Min.) (TM) |
| Work Mode | TN, Normally White, Transmissive |
| Response | 16 (Typ.)(Tr+Td) ms |
| Backlight | WLED , 12K hours , With LED Driver |
| Used for | Laptop |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 6-bit), 40 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
LP140WH4-TLB1 Pre-Order Check:
Before proceeding with your order, kindly verify if your machine model is compatible with this specific LCD screen. If you're uncertain, please reach out to us, and we'll promptly assist you.
Note:
Some of the screen backplates may not be entirely new, potentially showing signs of dirt or adhesive residue. Please take note of this!
LP140WH4-TLB1 LCD Panel Shipping and Package :
LP140WH4-TLB1 Shipping Information:
Please ensure that LP140WH4-TLB1 the model you've ordered matches exactly with the model you require. We will ship according to the model specified in your order.
Verify that the shipping address provided is accurate. Shipments will be sent to the address listed on the order. If you need delivery to a different address, please email us immediately after making the payment.
Shipments will be processed within 3 business days of receiving payment.
Each LCD panel undergoes rigorous testing before shipping, ensuring quality. Additionally, we take utmost care in packaging to ensure safe delivery.
LCD screens will be shipped using EMS/DHL/UPS based on location or customer preference.
Attention to Russian Customers:
For shipments to Russia, we can only use EMS. Please note that EMS delivery typically takes longer to arrive. We appreciate your patience during this time.
LP140WH4-TLB1 About the Goods:
Upon receiving your item, please confirm receipt. In the event that the item is damaged, kindly contact us immediately. Send us a photo of the damage so we can assess the situation and offer you the best solution.
While we guarantee timely delivery, please note that we do not have control over the express delivery time. Our dedicated sales staff will dispatch the Air Waybill (AWB) for your delivered goods on the following business day. You can track the AWB on the designated website provided to you. Alternatively, you can inquire about the AWB by contacting your local branch of the courier company handling the shipment.
LP140WH4-TLB1 LCD Panel FAQ :
Q: How long will I receive my goods LP140WH4-TLB1 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Can You declare my order of LP140WH4-TLB1 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long will I receive my goods LP140WH4-TLB1 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
