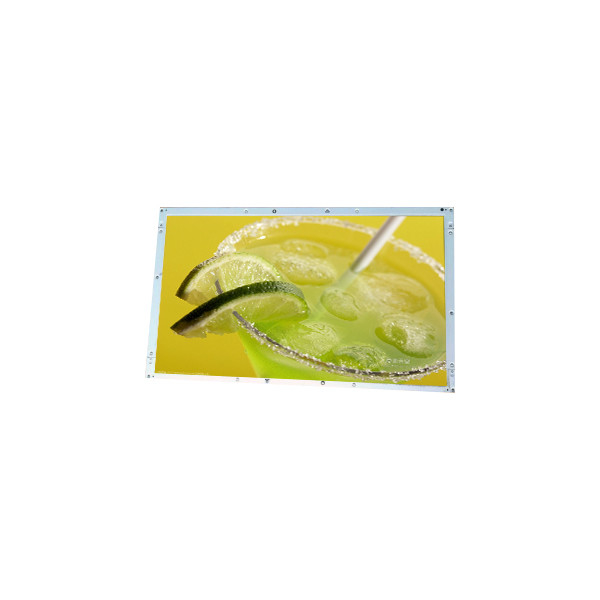

70 inch LK695D3LA1W 1920*1080 LCD screen for Interactive Whiteboard

Brand Name:	Sharp
Model Number:	LK695D3LA1W
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LK695D3LA1W

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1920(RGBY)×1080, FHD 31PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

1538.88(W)×865.62(H) Mm

Application:

Digital Signage、Interactive Whiteboard

Touch Screen:

Without

Supply Ability:

100000 Unit/Units per Month

Product Description

70 inch LK695D3LA1W 1920*1080 LCD screen for Interactive Whiteboard

LK695D3LA1W LCD Panel Product details :

Brand	Sharp
Model P/N	LK695D3LA1W
Diagonal Size	70"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×1080, FHD 31PPI
Pixel Format	RGB Vertical Stripe
Active Area	1538.88(W)×865.62(H) mm
Bezel Opening	1544.0(W)×876.8(H) mm
Outline Dim.	1566(H)×901.8(V)×31.6(D) mm
Treatment	Antiglare, Hard coating (2H)
Luminance	500 cd/m² (Typ.)
Contrast Ratio	5000:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	8 (Typ.)(G to G)
Viewing Angle	88/88/88/88 (Typ.)(CR≥10)
Operating Mode	ASV, Normally Black, Transmissive
Support Color	16.7M 76%NTSC
Light Source	WLED, 50K hours, With LED Driver
Weight	26.0±1.5Kgs
Designed For	Digital Signage,Interactive Whiteboard
Frame Rate	60Hz
Touch Panel	Without
Interface Type	LVDS (2 ch, 8-bit), 92 pinsConnector
Power Supply	12.0V (Typ.)
Environment	Operating Temperature: 0 ~ 50 °C; Storage Temperature: -25 ~ 60 °C
70 inch LK695D3LA1W 1920*1080 LCD screen for Interactive Whiteboard

LK695D3LA1W Pre-Order Check:

Before proceeding with your order, kindly verify if your machine model is compatible with this specific LCD screen. If you're uncertain, please reach out to us, and we'll promptly assist you.

Note:

Some of the screen backplates may not be entirely new, potentially showing signs of dirt or adhesive residue. Please take note of this!

LK695D3LA1W LCD Panel Shipping and Package :

LK695D3LA1W Shipping Information:

Please ensure that the model you've ordered matches exactly with the model you require. We will ship according to the model specified in your order.

Verify that the shipping address provided is accurate. Shipments will be sent to the address listed on the order. If you need delivery to a different address, please email us immediately after making the payment.

Shipments will be processed within 3 business days of receiving payment.

Each LCD panel undergoes rigorous testing before shipping, ensuring quality. Additionally, we take utmost care in packaging to ensure safe delivery.

LCD screens will be shipped using EMS/DHL/UPS based on location or customer preference.

Attention to Russian Customers:

For shipments to Russia, we can only use EMS. Please note that EMS delivery typically takes longer to arrive. We appreciate your patience during this time.

LK695D3LA1W About the Goods:

Upon receiving your item, please confirm receipt. In the event that the item is damaged, kindly contact us immediately. Send us a photo of the damage so we can assess the situation and offer you the best solution.

While we guarantee timely delivery, please note that we do not have control over the express delivery time. Our dedicated sales staff will dispatch the Air Waybill (AWB) for your delivered goods on the following business day. You can track the AWB on the designated website provided to you. Alternatively, you can inquire about the AWB by contacting your local branch of the courier company handling the shipment.

LK695D3LA1W LCD Panel FAQ :

Q: Can you test the lcd panel LK695D3LA1W before shipping ?

A: Yes , of course , don't worry , our item was tested ok before shipping .

Q: Do you accept the sample order LK695D3LA1W ?

A: Yes , sample order is welcome.

Q: Can you declared low value of my order LK695D3LA1W ?

A: Yes , we can , you can tell us before shipping .

Q: How long the warranty of lcd LK695D3LA1W ?

A: 90 days .
