LCD Screen Display Panel

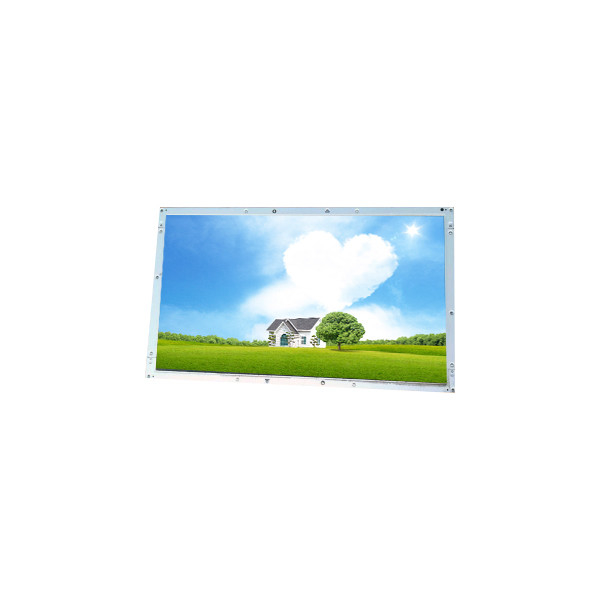

LM215WF4-TLE7 21.5 inch 1920*1080 LCD screen for Desktop Monitor

All Category

Floor Standing Digital Signage

LM215WF4-TLE7 21.5 inch 1920*1080 LCD screen for Desktop Monitor

Brand Name:	LG Display
Model Number:	LM215WF4-TLE7
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LM215WF4-TLE7

Diagonal Size:

21.5"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1920(RGB)×1080, FHD 102PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

476.64(W)×268.11(H) Mm

Used For:

Desktop Monitor

Interface Type:

LVDS (2 Ch, 8-bit)30 Pins Connector

Supply Ability:

100000 Unit/Units per Month

Product Description

LM215WF4-TLE7 21.5 inch 1920*1080 LCD screen for Desktop Monitor

LM215WF4-TLE7 LCD Panel Product details :

Brand	LG Display
Model P/N	LM215WF4-TLE7
Diagonal Size	21.5"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×1080, FHD 102PPI
Pixel Format	RGB Vertical Stripe
Active Area	476.64(W)×268.11(H) mm
Bezel Opening	479.8(W)×271.3(H) mm
Outline Dim.	495.6(W)×292.2(H)×10.7(D) mm
Luminance	250 cd/m² (Typ.)
View Direction	6 o'clock
Viewing Angle	85/85/75/85 (Typ.)(CR≥10)
Support Color	16.7M 72% NTSC
Weight	1.35/1.42Kgs (Typ./Max.)
Frame Rate	60Hz
Treatment	Antiglare, Hard coating (3H)
Contrast Ratio	1000:1 (Typ.) (TM)
Response Time	1.3/3.7 (Typ.)(Tr/Td)
Operating Mode	TN, Normally White, Transmissive
Light Source	WLED [16S2P] , 30K hours , W/O Driver
Designed For	Desktop Monitor
Touch Panel	Without
Interface Type	LVDS (2 ch, 8-bit)30 pins Connector
Power Supply	5.0V (Typ.)
Environment	Operating Temperature: 0 ~ 50 °C; Storage Temperature: -20 ~ 60 °C

LM215WF4-TLE7 Pre-Order Check:

Before proceeding with your order, kindly verify if your machine model is compatible with this specific LCD screen. If you're uncertain, please reach out to us, and we'll promptly assist you.

Note:

Some of the screen backplates may not be entirely new, potentially showing signs of dirt or adhesive residue. Please take note of this!

LM215WF4-TLE7 LCD Panel Shipping and Package :

LM215WF4-TLE7 Shipping Information:

Please ensure that the model you've ordered matches exactly with the model you require. We will ship according to the model specified in your order.

Verify that the shipping address provided is accurate. Shipments will be sent to the address listed on the order. If you need delivery to a different address, please email us immediately after making the payment.

Shipments will be processed within 3 business days of receiving payment.

Each LCD panel undergoes rigorous testing before shipping, ensuring quality. Additionally, we take utmost care in packaging to ensure safe delivery.

LCD screens will be shipped using EMS/DHL/UPS based on location or customer preference.

Attention to Russian Customers:

For shipments to Russia, we can only use EMS. Please note that EMS delivery typically takes longer to arrive. We appreciate your patience during this time.

LM215WF4-TLE7 About the Goods:

Upon receiving your item, please confirm receipt. In the event that the item is damaged, kindly contact us immediately. Send us a photo of the damage so we can assess the situation and offer you the best solution.

While we guarantee timely delivery, please note that we do not have control over the express delivery time. Our dedicated sales staff will dispatch the Air Waybill (AWB) for your delivered goods on the following business day. You can track the AWB on the designated website provided to you. Alternatively, you can inquire about the AWB by contacting your local branch of the courier company handling the shipment.

LM215WF4-TLE7 LCD Panel FAQ :

Q: How long is the warranty of LM215WF4-TLE7 ?

A: 90days warranty .

Q: How can I trace my order of HannStar LM215WF4-TLE7 ?

A: we will give you tracking number then you can trace your order from website.

Q: If I order LM215WF4-TLE7 now,when will you ship the goods ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: Do you accept sample orders for LM215WF4-TLE7 ?

A: Of course!sample order is welcome !
