LCD Screen Display Panel

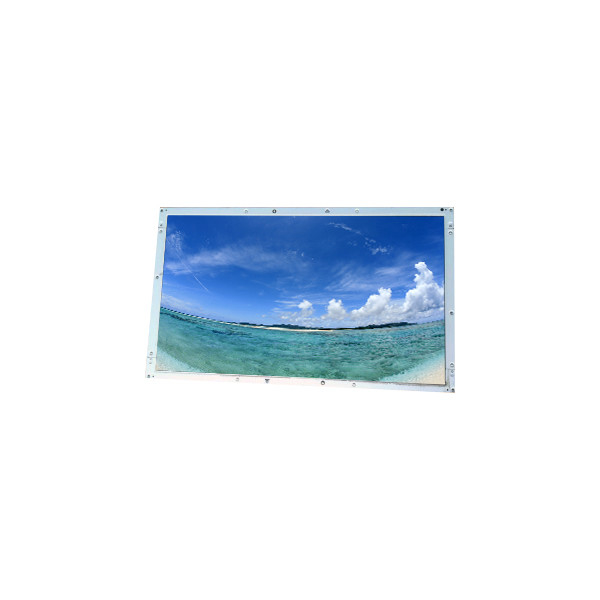

LM230WF5-TLD3 1920*1080 23.0 inch LCD screen for Desktop Monitor

All Category

Floor Standing Digital Signage

LM230WF5-TLD3 1920*1080 23.0 inch LCD screen for Desktop Monitor

Brand Name:	LG Display
Model Number:	LM230WF5-TLD3
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Model Name:

LM230WF5-TLD3

Diagonal Size:

23.0"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1920(RGB)×1080, FHD 95PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

509.184(W)×286.416(H) Mm

Used For:

Desktop Monitor

Touchscreen:

Without

Supply Ability:

100000 Unit/Units per Month

Product Description

LM230WF5-TLD3 1920*1080 23.0 inch LCD screen for Desktop Monitor

LM230WF5-TLD3 LCD Panel Product details :

Brand	LG Display
Model P/N	LM230WF5-TLD3
Diagonal Size	23.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×1080, FHD 95PPI
Pixel Format	RGB Vertical Stripe
Active Area	509.184(W)×286.416(H) mm
Bezel Opening	513.8(W)×291.0(H) mm
Outline(mm)	533.2 × 312× 10.7 (H×V×D)
Treatment	Antiglare, Hard coating (3H)
Luminance	250 cd/m² (Typ.)
Contrast Ratio	1000 : 1 (Typ.) (TM)
Viewing Angle	85/85/75/85 (Typ.)(CR≥10)
Response	1.3/3.7 (Typ.)(Tr/Td) ms
Good View at	6 o'clock
Work Mode	TN, Normally White, Transmissive
Color Depth	16.7M 72%NTSC
Backlight	2 stringsWLED, 30K hours, No Driver
Mass	1.62/1.70Kgs (Typ./Max.)
Used for	Desktop Monitor
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	LVDS (2 ch, 8-bit), 30 pins Connector
Voltage Supply	5.0V (Typ.)
Max. Ratings	Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C

LM230WF5-TLD3 Pre-Order Check:

Before proceeding with your order, kindly verify if your machine model is compatible with this specific LCD screen. If you're uncertain, please reach out to us, and we'll promptly assist you.

Note:

Some of the screen backplates may not be entirely new, potentially showing signs of dirt or adhesive residue. Please take note of this!

LM230WF5-TLD3 LCD Panel Shipping and Package :

LM230WF5-TLD3 Shipping Information:

Please ensure that the model you've ordered matches exactly with the model you require. We will ship according to the model specified in your order.

Verify that the shipping address provided is accurate. Shipments will be sent to the address listed on the order. If you need delivery to a different address, please email us immediately after making the payment.

Shipments will be processed within 3 business days of receiving payment.

Each LCD panel undergoes rigorous testing before shipping, ensuring quality. Additionally, we take utmost care in packaging to ensure safe delivery.

LCD screens will be shipped using EMS/DHL/UPS based on location or customer preference.

Attention to Russian Customers:

For shipments to Russia, we can only use EMS. Please note that EMS delivery typically takes longer to arrive. We appreciate your patience during this time.

LM230WF5-TLD3 About the Goods:

Upon receiving your item, please confirm receipt. In the event that the item is damaged, kindly contact us immediately. Send us a photo of the damage so we can assess the situation and offer you the best solution.

While we guarantee timely delivery, please note that we do not have control over the express delivery time. Our dedicated sales staff will dispatch the Air Waybill (AWB) for your delivered goods on the following business day. You can track the AWB on the designated website provided to you. Alternatively, you can inquire about the AWB by contacting your local branch of the courier company handling the shipment.

LM230WF5-TLD3 LCD Panel FAQ :

Q: Do you accept sample orders of LM230WF5-TLD3 ?

A: Of course! Sample order is welcome.

Q: Can I pay my order of LM230WF5-TLD3 vai credit card ?

A: Yes! You can use your credit card through your Paypal account.

Q: How long is the warranty ?

A: We offer 90 days warranty.

Q: If I place order now, when will you ship the goods of LM230WF5-TLD3 ?

A: The order will be shipped within 2-3 working days after received your payment.
