LCD Screen Display Panel

20.0 inch 1600*900 LM200WD3-TLCA TFT LCD screen FOR Desktop Monitor

All Category

Floor Standing Digital Signage

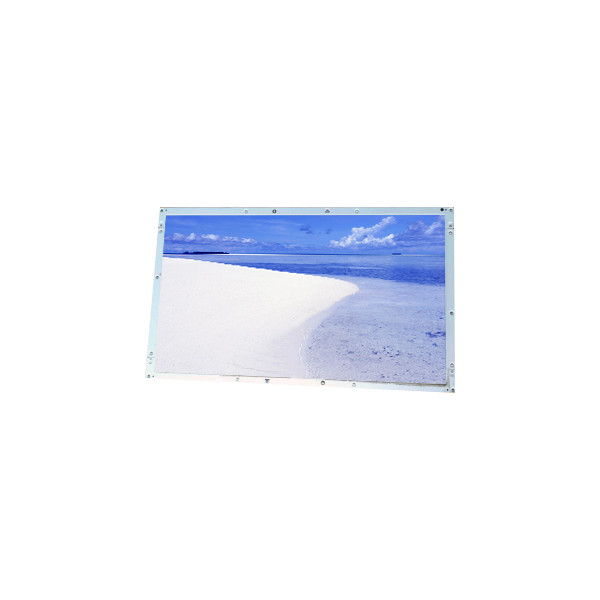

20.0 inch 1600*900 LM200WD3-TLCA TFT LCD screen FOR Desktop Monitor

Brand Name:	LG Display
Model Number:	LM200WD3-TLCA
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LM200WD3-TLCA

Diagonal Size:

20.0"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1600(RGB)×900, HD+ 91PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

442.8(W)×249.075(H) Mm

Used For:

Desktop Monitor

Refresh Rate:

Signal Type:

LVDS (2 Ch, 8-bit), 30 PinsConnector

Voltage Supply:

5.0V (Typ.)

Supply Ability:

100000 Unit/Units per Month

Product Description

20.0 inch 1600*900 LM200WD3-TLCA TFT LCD screen FOR Desktop Monitor

LM200WD3-TLCA LCD Panel Product details :

Brand	LG Display
Model P/N	LM200WD3-TLCA
Diagonal Size	20.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1600(RGB)×900, HD+ 91PPI
Pixel Format	RGB Vertical Stripe
Active Area	442.8(W)×249.075(H) mm
Bezel Opening	446.8(W)×253.1(H) mm
Outline(mm)	462.8 × 272× 10.2 (H×V×D)
Treatment	Antiglare, Hard coating (3H)
Luminance	250 cd/m² (Typ.)
Contrast Ratio	1000 : 1 (Typ.) (TM)
Viewing Angle	85/85/75/85 (Typ.)(CR≥10)
Response	1.1/3.9 (Typ.)(Tr/Td) ms
Good View at	6 o'clock
Work Mode	TN, Normally White, Transmissive
Color Depth	16.7M 72%NTSC
Backlight	2 stringsWLED, 30K hours, No Driver
Mass	1.53/1.61Kgs (Typ./Max.)
Used for	Desktop Monitor
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	LVDS (2 ch, 8-bit), 30 pinsConnector
Voltage Supply	5.0V (Typ.)
Max. Ratings	Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C

LM200WD3-TLCA Pre-Order Check:

Before proceeding with your order, kindly verify if your machine model is compatible with this specific LCD screen. If you're uncertain, please reach out to us, and we'll promptly assist you.

Note:

Some of the screen backplates may not be entirely new, potentially showing signs of dirt or adhesive residue. Please take note of this!

LM200WD3-TLCA LCD Panel Shipping and Package :

LM200WD3-TLCA Shipping Information:

Please ensure that the model you've ordered matches exactly with the model you require. We will ship according to the model specified in your order.

Verify that the shipping address provided is accurate. Shipments will be sent to the address listed on the order. If you need delivery to a different address, please email us immediately after making the payment.

Shipments will be processed within 3 business days of receiving payment.

Each LCD panel undergoes rigorous testing before shipping, ensuring quality. Additionally, we take utmost care in packaging to ensure safe delivery.

LCD screens will be shipped using EMS/DHL/UPS based on location or customer preference.

Attention to Russian Customers:

For shipments to Russia, we can only use EMS. Please note that EMS delivery typically takes longer to arrive. We appreciate your patience during this time.

LM200WD3-TLCA About the Goods:

Upon receiving your item, please confirm receipt. In the event that the item is damaged, kindly contact us immediately. Send us a photo of the damage so we can assess the situation and offer you the best solution.

While we guarantee timely delivery, please note that we do not have control over the express delivery time. Our dedicated sales staff will dispatch the Air Waybill (AWB) for your delivered goods on the following business day. You can track the AWB on the designated website provided to you. Alternatively, you can inquire about the AWB by contacting your local branch of the courier company handling the shipment.

LM200WD3-TLCA LCD Panel FAQ :

Q: Can You declare my order of LM200WD3-TLCA to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: Can you give me a discount if I need a large quantity of LM200WD3-TLCA ?

A: Of course!If you make a large order, we will give you a discount.

Q: Do you accept sample orders of LM200WD3-TLCA ?

A: Of course!sample order is welcome !

Q: Can I pay my order of LM200WD3-TLCA via credit card ?

A: Yes!you can use your credit card through your Paypal account.
