Brand Name: | AUO |
Model Number: | G101EAT02.6 |
MOQ: | 1 pcs |
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Payment Terms: | T/T, Western Union |

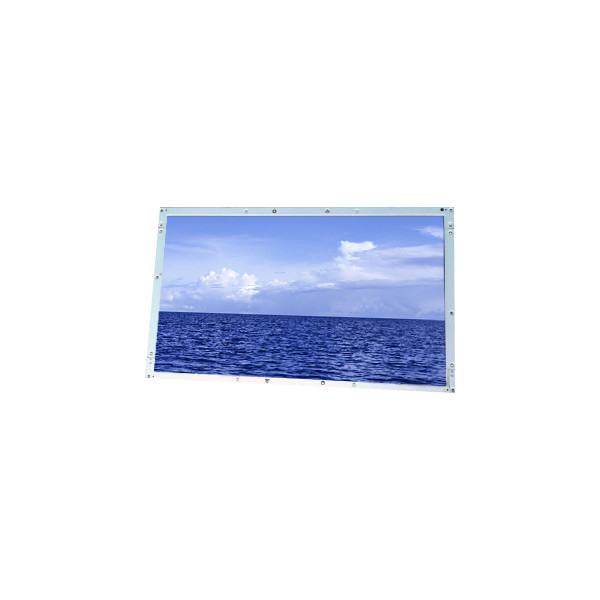

10.1 inch 1280*800 G101EAT02.6 LCD screen module
G101EAT02.6 LCD Panel Product details :
Brand | AUO |
Model P/N | G101EAT02.6 |
Diagonal Size | 10.1" |
Panel Type | a-Si TFT-LCD, LCM |
Resolution | 1280(RGB)×800, WXGA 149PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 216.96(W)×135.6(H) mm |
Bezel Opening | 217.96(W)×136.6(H) mm |
Outline Dim. | 249.66(H)×168.3(V) ×11.03(D) mm |
Treatment | Anti-Scatter, Hard coating (7H) |
Luminance | 400 cd/m² (Typ.) |
Contrast Ratio | 800:1 (Typ.) (TM) |
View Direction | Symmetry |
Response Time | 29 (Typ.)(Tr+Td) |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
Operating Mode | AHVA, Normally Black, Transmissive |
Support Color | 16.7M 45% NTSC |
Light Source | WLED , 50K hours , With LED Driver |
Weight | 500g (Max.) |
Designed For | Industrial |
Frame Rate | 60Hz |
Touch Panel | PCAP, Air Bonding, USB |
Interface Type | LVDS (1 ch, 8-bit) , 40 pins Connector |
Power Supply | 3.3V (Typ.) |
Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
G101EAT02.6 LCD Panel Shipping and Package :
Q: How long is the warranty of G101EAT02.6 ?
A: 90days warranty .
Q: How can I trace my order of G101EAT02.6 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can I pay my goods G101EAT02.6 by credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Do you accept sample orders for G101EAT02.6 ?
A: Of course!sample order is welcome !
