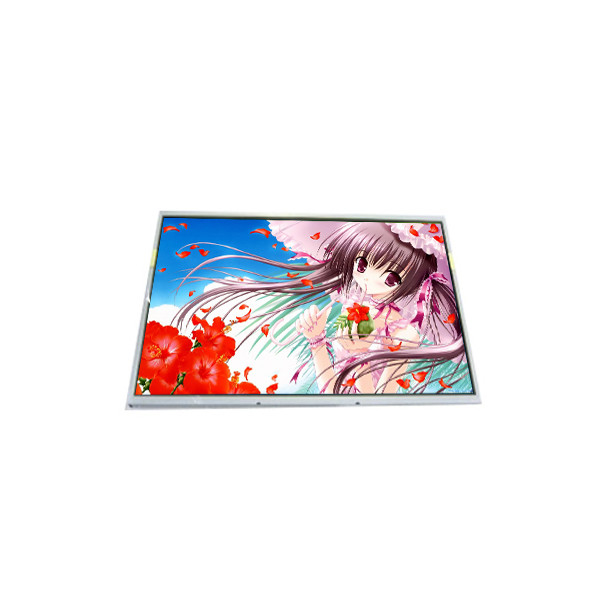

LM230WF5-TJF1 23.0 inch 1920*1080 FHD LCD screen for Desktop Monitor

Brand Name:	LG Display
Model Number:	LM230WF5-TJF1
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LM230WF5-TJF1

Diagonal Size:

23.0"

Panel Type:

A-Si TFT-LCD, CELL, FOB

Resolution:

1920(RGB)×1080, FHD 95PPI

Pixel Format:

RGB Vertical Stripe

Lamp Type:

No B/L, Without Driver

Used For:

Desktop Monitor

Signal Interface:

LVDS (2 Ch, 8-bit), 30 Pins Connector

Input Voltage:

5.0V (Typ.)

Environment:

Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C

Supply Ability:

100000 Unit/Units per Month

Product Description

LM230WF5-TJF1 23.0 inch 1920*1080 FHD LCD screen for Desktop Monitor

LM230WF5-TJF1 LCD Panel Product details :

Brand	LG Display
Model P/N	LM230WF5-TJF1
Diagonal Size	23.0"
Panel Type	a-Si TFT-LCD, CELL, FOB
Resolution	1920(RGB)×1080, FHD 95PPI
Pixel Format	RGB Vertical Stripe
Active Area	509.184(W)×286.416(H) mm
Bezel Opening	-
Outline Size	526.184(W)×301.416(H)×1.83(D) mm
Surface	Glare (Haze 0%), Hard coating (3H)
Brightness	0 cd/m²
Contrast Ratio	1000:1 (Typ.) (TM)
Viewing Angle	85/85/75/85 (Typ.)(CR≥10)
Display Mode	TN, Normally White, Transmissive
Best View on	6 o'clock
Response Time	1.3/3.7 (Typ.)(Tr/Td)
Glass Depth	0.70+0.70 mm
Transmissivity	-
Display Colors	16.7M 72%NTSC
Lamp Type	No B/L, Without Driver
Frequency	60Hz
Touch Screen	Without
Driver IC	COFBuilt-in 4 source chips
Panel Weight	680g (Typ.)
Application	Desktop Monitor
Signal Interface	LVDS (2 ch, 8-bit), 30 pins Connector
Input Voltage	5.0V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C

LM230WF5-TJF1 Pre-Order Check:

Before proceeding with your order, kindly verify if your machine model is compatible with this specific LCD screen. If you're uncertain, please reach out to us, and we'll promptly assist you.

Note:

Some of the screen backplates may not be entirely new, potentially showing signs of dirt or adhesive residue. Please take note of this!

LM230WF5-TJF1 LCD Panel Shipping and Package :

LM230WF5-TJF1 Shipping Information:

Please ensure that the model you've ordered matches exactly with the model you require. We will ship according to the model specified in your order.

Verify that the shipping address provided is accurate. Shipments will be sent to the address listed on the order. If you need delivery to a different address, please email us immediately after making the payment.

Shipments will be processed within 3 business days of receiving payment.

Each LCD panel undergoes rigorous testing before shipping, ensuring quality. Additionally, we take utmost care in packaging to ensure safe delivery.

LCD screens will be shipped using EMS/DHL/UPS based on location or customer preference.

Attention to Russian Customers:

For shipments to Russia, we can only use EMS. Please note that EMS delivery typically takes longer to arrive. We appreciate your patience during this time.

LM230WF5-TJF1 About the Goods:

Upon receiving your item, please confirm receipt. In the event that the item is damaged, kindly contact us immediately. Send us a photo of the damage so we can assess the situation and offer you the best solution.

While we guarantee timely delivery, please note that we do not have control over the express delivery time. Our dedicated sales staff will dispatch the Air Waybill (AWB) for your delivered goods on the following business day. You can track the AWB on the designated website provided to you. Alternatively, you can inquire about the AWB by contacting your local branch of the courier company handling the shipment.

LM230WF5-TJF1 LCD Panel FAQ :

Q: How long is the warranty of LM230WF5-TJF1 ?

A: 90 days warranty .

Q: How can I trace my order of LM230WF5-TJF1 ?

A: we will give you tracking number then you can trace your order from website.

Q: Can I pay my goods LM230WF5-TJF1 by credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: How do you ship my goods LM230WF5-TJF1 ?

A: We can shipping all over the world.via DHL,UPS,Fedex and EMS.
