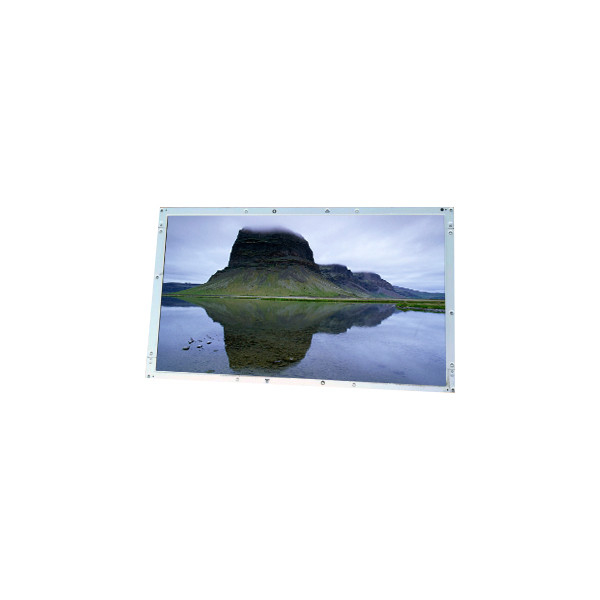

55.8 inch LK558Z3LA1P LCD screen TFT LCD Display
Product Details:
| Place of Origin: | China |
| Brand Name: | Sharp |
| Model Number: | LK558Z3LA1P |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LK558Z3LA1P | Diagonal Size: | 55.8" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 2560(RGB)×1080 49PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 1305.6(W)×550.8(H) Mm |
| Luminance: | 450 Cd/m² (Typ.) | Contrast Ratio: | 1800 : 1 (Typ.) (TM) |
| Used For: | Digital Signage | Touchscreen: | Without |
Product Description
55.8 inch LK558Z3LA1P LCD screen TFT LCD Display
LK558Z3LA1P LCD Panel Product details :
| Brand | Sharp |
| Model P/N | LK558Z3LA1P |
| Diagonal Size | 55.8" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 2560(RGB)×1080 49PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 1305.6(W)×550.8(H) mm |
| Bezel Opening | - |
| Outline (mm) | 1372×610×56.2 (H×V×D) |
| Treatment | Antiglare, Hard coating (2H) |
| Luminance | 450 cd/m² (Typ.) |
| Contrast Ratio | 1800 : 1 (Typ.) (TM) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) |
| Response | 4 (Typ.)(G to G) ms |
| Good View at | Symmetry |
| Work Mode | ASV, Normally Black, Transmissive |
| Color Depth | 1.07B 74%NTSC |
| Backlight | 20 pcsCCFL, 60K hours, With Inverter |
| Mass | 16.9±1.0Kgs |
| Used for | Digital Signage |
| Refresh Rate | 120Hz |
| Touchscreen | Without |
| Signal Type | LVDS (4 ch, 10-bit), Connector92 pins |
| Voltage Supply | 12.0V (Typ.) |
| Max. Ratings | Storage Temp.: -25 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| 55.8 inch LK558Z3LA1P LCD screen TFT LCD Display | |
LK558Z3LA1P Pre-Order Check:
Before proceeding with your order, kindly verify if your machine model is compatible with this specific LCD screen. If you're uncertain, please reach out to us, and we'll promptly assist you.
Note:
Some of the screen backplates may not be entirely new, potentially showing signs of dirt or adhesive residue. Please take note of this!
LK558Z3LA1P LCD Panel Shipping and Package :
LK558Z3LA1P Shipping Information:
Please ensure that the model you've ordered matches exactly with the model you require. We will ship according to the model specified in your order.
Verify that the shipping address provided is accurate. Shipments will be sent to the address listed on the order. If you need delivery to a different address, please email us immediately after making the payment.
Shipments will be processed within 3 business days of receiving payment.
Each LCD panel undergoes rigorous testing before shipping, ensuring quality. Additionally, we take utmost care in packaging to ensure safe delivery.
LCD screens will be shipped using EMS/DHL/UPS based on location or customer preference.
Attention to Russian Customers:
For shipments to Russia, we can only use EMS. Please note that EMS delivery typically takes longer to arrive. We appreciate your patience during this time.
LK558Z3LA1P About the Goods:
Upon receiving your item, please confirm receipt. In the event that the item is damaged, kindly contact us immediately. Send us a photo of the damage so we can assess the situation and offer you the best solution.
While we guarantee timely delivery, please note that we do not have control over the express delivery time. Our dedicated sales staff will dispatch the Air Waybill (AWB) for your delivered goods on the following business day. You can track the AWB on the designated website provided to you. Alternatively, you can inquire about the AWB by contacting your local branch of the courier company handling the shipment.
LK558Z3LA1P LCD Panel FAQ :
Q: Can you give me a discount if I need a large quantity of LK558Z3LA1P ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of LK558Z3LA1P to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How to make payment of LK558Z3LA1P ?
A: We accept T/T , Paypal , western union .
Q: If I place order now,when will you ship the goods of LK558Z3LA1P ?
A: The order will be shipped within 2-3 working days after received your payment.
