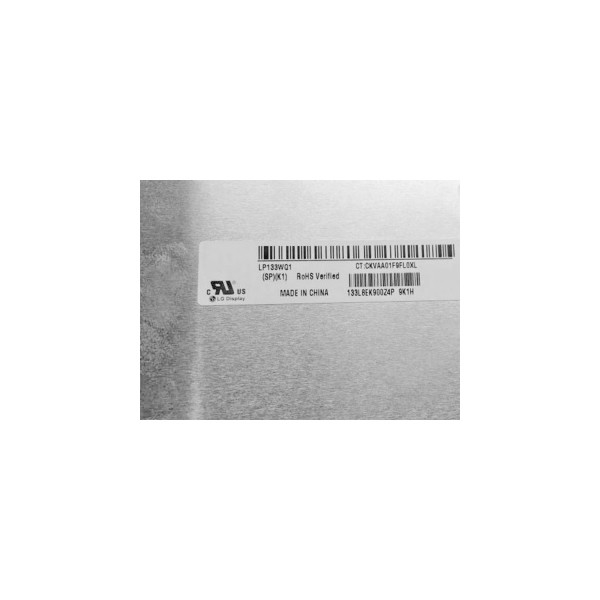

LP133WQ1-SPK1 13.3 inch LCD Panel Display 2560*1600 LCD Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | LG |
| Model Number: | LP133WQ1-SPK1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LP133WQ1-SPK1 | Screen Size: | 13.3" |
|---|---|---|---|
| Resolution: | 2560(RGB)×1600, WQXGA 227PPI | Pixel Format: | RGB Vertical Stripe |
| Active Area: | 286.08(W)×178.8(H) Mm | Display Mode: | IPS, Normally Black, Transmissive |
| Display Colors: | 16.7M 100%sRGB | Lamp Type: | WLED, 15K Hours, With LED Driver |
| Application: | Laptop、Industrial | Interface Type: | EDP (4 Lanes), EDP1.4, HBR2 (5.4G/lane) Connector |
Product Description
LP133WQ1-SPK1 13.3 inch LCD Panel Display 2560*1600 LCD Screen
LP133WQ1-SPK1 Product details :
| Brand | LG Display |
| Model P/N | LP133WQ1-SPK1 |
| Diagonal Size | 13.3" |
| Panel Type | Oxide TFT-LCD, LCM |
| Resolution | 2560(RGB)×1600, WQXGA 227PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 286.08(W)×178.8(H) mm |
| Bezel Opening | - |
| Outline Size | 291.08(W)×195.3(H)×2.4(D) mm |
| Surface | Hard coating (3H) |
| Brightness | 400 cd/m² (Typ.) |
| Contrast Ratio | 1200:1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Display Mode | IPS, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 30 (Typ.)(Tr+Td) |
| Display Colors | 16.7M 100%sRGB |
| Lamp Type | WLED, 15K hours, With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Shape Style | Slim (PCBA Flat, T≤3.2mm) |
| Application | Laptop,Industrial |
| Signal Interface | eDP (4 Lanes), eDP1.4, HBR2 (5.4G/lane) Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C |
| LP133WQ1-SPK1 13.3 inch LCD Panel Display 2560*1600 LCD Screen | |
LP133WQ1-SPK1 Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
LP133WQ1-SPK1 Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
LP133WQ1-SPK1 Shipping:
You can track the shipment with the tracking number we give to you. If you can't get the status of your shipment or you find the status of your shipment abnormal, please feel free to contact us. We will help you check it with post office or courier and cooperate closely with you to solve the problem.
LP133WQ1-SPK1 FAQ:
Q: How can I trace my order of LP133WQ1-SPK1 ?
A: we will give you tracking number then you can trace your order from website.
Q: How long will I receive my goods LP133WQ1-SPK1 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How to make payment of LP133WQ1-SPK1 ?
A: We accept T/T , Paypal , western union .
Q: Can I pay my order of LP133WQ1-SPK1 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
