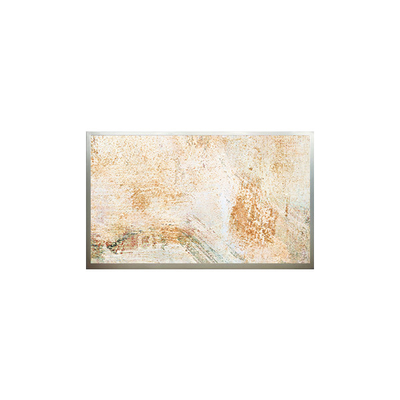

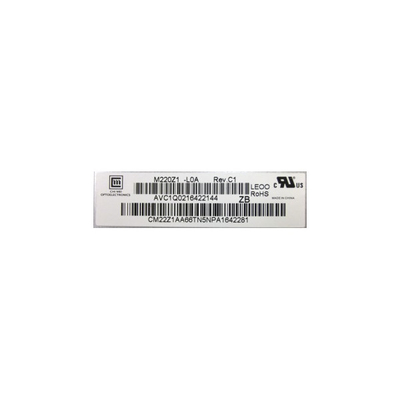

M220Z1-L0A 22.0 inch 1680*1050 lcd Screen display

Brand Name:	CMO
Model Number:	M220Z1-L0A
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

M220Z1-L0A

Diagonal Size:

22.0"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1680(RGB)×1050, WSXGA+ 90PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

473.76(W)×296.1(H) Mm

Designed For:

Desktop Monitor

Touchscreen:

Without

Supply Ability:

100000 Unit/Units per Month

Product Description

M220Z1-L0A 22.0 inch 1680*1050 lcd Screen display

M220Z1-L0A LCD Panel Product details :

Brand	CMO
Model P/N	M220Z1-L0A
Diagonal Size	22.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1680(RGB)×1050, WSXGA+ 90PPI
Pixel Format	RGB Vertical Stripe
Active Area	473.76(W)×296.1(H) mm
Bezel Opening	477.7(W)×300.1(H) mm
Outline Dim.	493.7(W)×320.1(H)×12.3(D) mm
Luminance	250 cd/m² (Typ.)
View Direction	6 o'clock
Viewing Angle	85/85/80/80 (Typ.)(CR＞10)
Support Color	16.7M 72% NTSC
Weight	2.20/2.30Kgs (Typ./Max.)
Frame Rate	60Hz
Treatment	Antiglare (Haze 25%), Hard coating (3H)
Contrast Ratio	1000:1 (Typ.) (TM)
Response Time	1.3/3.7 (Typ.)(Tr/Td)
Operating Mode	TN, Normally White, Transmissive
Light Source	CCFL [2 pcs] , 50K hours , W/O Driver
Designed For	Desktop Monitor
Touch Panel	Without
Interface Type	LVDS (2 ch, 8-bit)30 pins Connector
Power Supply	5.0V (Typ.)
Environment	Operating Temperature: 0 ~ 50 °C; Storage Temperature: -20 ~ 60 °C

M220Z1-L0A LCD Panel Guarantee :

Strict Testing and Secure Packaging: Each item undergoes rigorous testing to ensure functionality and performance. We also prioritize secure packaging to safeguard the product during transit, reducing the risk of damage.

Warranty Coverage: We offer a warranty period of 2 to 6 months for every item, depending on the specific product. This warranty period provides peace of mind, allowing you to use the LCD panel confidently.

Dedicated After-Sales Support: Our commitment extends beyond the purchase. We are dedicated to resolving any potential issues or concerns you may encounter after the sale. Please don't hesitate to reach out to us for assistance and support.

We stand behind the quality of our products and strive to deliver excellent customer service throughout your experience with us.

M220Z1-L0A LCD Panel Shipping and Package :

M220Z1-L0A LCD Panel Payment & Shipping :

Secure Online Payment: Payment for your order is safe and straightforward. You can easily make payment online using major credit cards such as VISA or Mastercard through our platform on ALI.

Global Shipping: We provide worldwide shipping services and have successfully delivered to numerous countries, including Japan, Thailand, Russia, Ukraine, the United Kingdom, and Brazil.

Affordable Shipping Options: We offer cost-effective shipping solutions to ensure your order reaches you efficiently. Our shipping partners include DHL, UPS, TNT, EMS, and China Post Air Mail, providing you with flexibility in choosing the most suitable shipping method based on your location and preferences.

Feel confident in placing your order with us, knowing that we prioritize secure transactions and reliable global shipping services.

M220Z1-L0A LCD Panel Tariffs and Fees:

No Additional Fees: We do not charge any fees for customer orders, regardless of the order size.

Customs Duties and Import Taxes: Please be aware that when the parts arrive at your local customs office, there may be tariffs, customs duties, or import taxes imposed by your country's customs authorities. It is important to note that we will not be responsible for any customs duties or import taxes incurred.

Shipping Duration: Our standard shipping method utilizes international aviation, and items are shipped from Hong Kong. The typical transit time for delivery to most regions is 7-14 working days (equivalent to 2-3 weeks).

Extended Delivery Time for Specific Regions: For certain regions such as Russia and the United Kingdom, delivery may take longer, typically ranging from 5 to 9 weeks.

Item Receipt and Contact: If you have not received your items within 30 working days (equivalent to 5 weeks) from the shipping date, we kindly ask that you contact us for assistance.

Business Hours: Our working hours are from Monday to Friday, excluding legal holidays.

M220Z1-L0A LCD Panel FAQ :

Q: Can you give me a discount if I need a large quantity of M220Z1-L0A ?

A: Of course!If you make a large order, we will give you a discount.

Q: How can I trace my order of M220Z1-L0A ?

A: we will give you tracking number then you can trace your order from website.

Q: How to make payment of M220Z1-L0A ?

A: We accept T/T , Paypal , western union .

Q: Do you accept sample orders of M220Z1-L0A ?

A: Of course!sample order is welcome !
