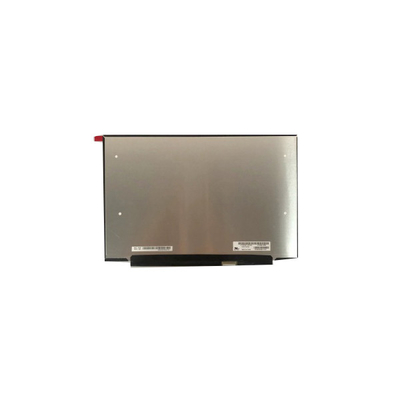

LP133WQ1-SPD2 13.3 inch 2K IPS Laptop LCD Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | LG |
| Model Number: | LP133WQ1-SPD2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LP133WQ1-SPD2 | Screen Size: | 13.3" |
|---|---|---|---|
| Resolution: | 2560(RGB)×1600, WQXGA 227PPI | Pixel Format: | RGB Vertical Stripe |
| Active Area: | 286.08(W)×178.8(H) Mm | Display Mode: | IPS, Normally Black, Transmissive |
| Display Colors: | 16.7M 99% SRGB | Lamp Type: | WLED , 15K Hours , With LED Driver |
| Application: | Laptop | Interface Type: | EDP (4 Lanes), EDP1.4, HBR2 (5.4G/lane), 40 Pins Connector |
Product Description
LP133WQ1-SPD2 13.3 inch 2K IPS Laptop LCD Screen
LP133WQ1-SPD2 Product details :
| Brand | LG Display |
| Model P/N | LP133WQ1-SPD2 |
| Diagonal Size | 13.3" |
| Panel Type | Oxide TFT-LCD, LCM |
| Resolution | 2560(RGB)×1600, WQXGA 227PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 286.08(W)×178.8(H) mm |
| Bezel Opening | - |
| Outline(mm) | 291.08(W)×195.3(H)×2.5(D) |
| Luminance | 300 (Typ.)(cd/m²) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Good View at | Symmetry |
| Color Depth | 16.7M 99% sRGB |
| Outline Shape | Slim (PCBA Flat, T≤3.2mm) |
| Refresh Rate | 60Hz |
| Treatment | Antiglare, Hard coating (3H) |
| Contrast Ratio | 1300 : 1 (Typ.) (TM) |
| Work Mode | IPS, Normally Black, Transmissive |
| Response | 30 (Typ.)(Tr+Td) ms |
| Backlight | WLED , 15K hours , With LED Driver |
| Used for | Laptop |
| Touchscreen | Without |
| Signal Type | eDP (4 Lanes), eDP1.4, HBR2 (5.4G/lane), 40 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| LP133WQ1-SPD2 13.3 inch 2K IPS Laptop LCD Screen | |
LP133WQ1-SPD2 Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
LP133WQ1-SPD2 Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
LP133WQ1-SPD2 Shipping:
You can track the shipment with the tracking number we give to you. If you can't get the status of your shipment or you find the status of your shipment abnormal, please feel free to contact us. We will help you check it with post office or courier and cooperate closely with you to solve the problem.
LP133WQ1-SPD2 FAQ:
Q: How do you ship my goods LP133WQ1-SPD2 ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.
Q: How long is the warranty of LP133WQ1-SPD2 ?
A: 90days warranty .
Q: Are you manufactory or trade company ?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Can You declare my order of LCD panel LG LP133WQ1-SPD2 at a very low value ?
A: Yes , we can . pls inform us before shipping .
