LCD Screen Display Panel

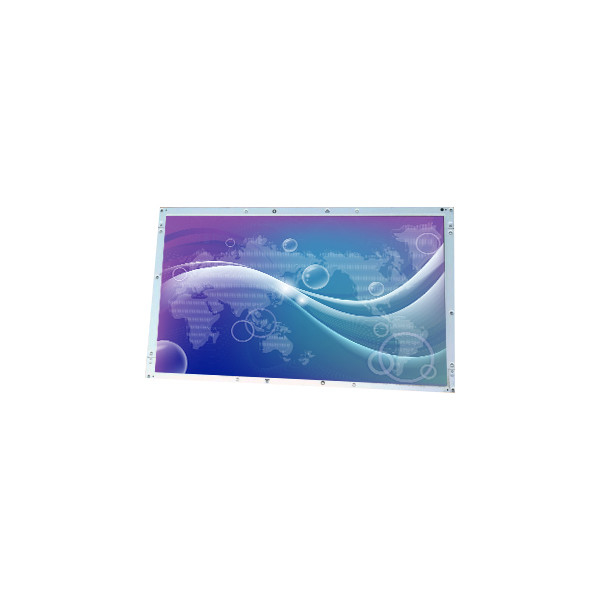

1920*1080 LK520D3LZ1x 52 inch lcd Screen FOR Digital Signage

All Category

Floor Standing Digital Signage

1920*1080 LK520D3LZ1x 52 inch lcd Screen FOR Digital Signage

Brand Name:	Sharp
Model Number:	LK520D3LZ1x
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LK520D3LZ1x

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1920(RGB)×1080, FHD 42PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

1152(W)×648(H) Mm

Luminance:

450 Cd/m² (Typ.)

Contrast Ratio:

1500:1 (Typ.) (TM)

Designed For:

Digital Signage

Touchscreen:

Without

Supply Ability:

100000 Unit/Units per Month

Product Description

1920*1080 LK520D3LZ1x 52 inch lcd Screen FOR Digital Signage

LK520D3LZ1x LCD Panel Product details :

Brand	Sharp
Model P/N	LK520D3LZ1x
Diagonal Size	52"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×1080, FHD 42PPI
Pixel Format	RGB Vertical Stripe
Active Area	1152(W)×648(H) mm
Bezel Opening	1161.0(W)×657.0(H) mm
Outline Dim.	1219(W)×706.7(H)×65.6(D) mm
Treatment	Antiglare, Hard coating (2H), Antireflection
Luminance	450 cd/m² (Typ.)
Contrast Ratio	1500:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	6 (Typ.)(G to G)
Viewing Angle	88/88/88/88 (Typ.)(CR≥10)
Operating Mode	ASV, Normally Black, Transmissive
Support Color	16.7M 73%NTSC
Light Source	CCFL [24 pcs], 60K hours, With Inverter
Weight	21.0±1.0Kgs
Designed For	Digital Signage
Frame Rate	60Hz
Touch Panel	Without
Interface Type	LVDS (2 ch, 8-bit), 58 pinsConnector
Power Supply	12.0V (Typ.)
Environment	Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -25 ~ 60 °C
1920*1080 LK520D3LZ1x 52 inch lcd Screen FOR Digital Signage

LK520D3LZ1x LCD Panel Guarantee :

Strict Testing and Secure Packaging: Each item undergoes rigorous testing to ensure functionality and performance. We also prioritize secure packaging to safeguard the product during transit, reducing the risk of damage.

Warranty Coverage: We offer a warranty period of 2 to 6 months for every item, depending on the specific product. This warranty period provides peace of mind, allowing you to use the LCD panel confidently.

Dedicated After-Sales Support: Our commitment extends beyond the purchase. We are dedicated to resolving any potential issues or concerns you may encounter after the sale. Please don't hesitate to reach out to us for assistance and support.

We stand behind the quality of our products and strive to deliver excellent customer service throughout your experience with us.

LK520D3LZ1x LCD Panel Shipping and Package :

LK520D3LZ1x LCD Panel Payment & Shipping :

Secure Online Payment: Payment for your order is safe and straightforward. You can easily make payment online using major credit cards such as VISA or Mastercard through our platform on ALI.

Global Shipping: We provide worldwide shipping services and have successfully delivered to numerous countries, including Japan, Thailand, Russia, Ukraine, the United Kingdom, and Brazil.

Affordable Shipping Options: We offer cost-effective shipping solutions to ensure your order reaches you efficiently. Our shipping partners include DHL, UPS, TNT, EMS, and China Post Air Mail, providing you with flexibility in choosing the most suitable shipping method based on your location and preferences.

Feel confident in placing your order with us, knowing that we prioritize secure transactions and reliable global shipping services.

LK520D3LZ1x LCD Panel Tariffs and Fees:

No Additional Fees: We do not charge any fees for customer orders, regardless of the order size.

Customs Duties and Import Taxes: Please be aware that when the parts arrive at your local customs office, there may be tariffs, customs duties, or import taxes imposed by your country's customs authorities. It is important to note that we will not be responsible for any customs duties or import taxes incurred.

Shipping Duration: Our standard shipping method utilizes international aviation, and items are shipped from Hong Kong. The typical transit time for delivery to most regions is 7-14 working days (equivalent to 2-3 weeks).

Extended Delivery Time for Specific Regions: For certain regions such as Russia and the United Kingdom, delivery may take longer, typically ranging from 5 to 9 weeks.

Item Receipt and Contact: If you have not received your items within 30 working days (equivalent to 5 weeks) from the shipping date, we kindly ask that you contact us for assistance.

Business Hours: Our working hours are from Monday to Friday, excluding legal holidays.

LK520D3LZ1x LCD Panel FAQ :

Q: Do you accept the sample order?

A: Yes , sample order is welcome.

Q: What does "We may ship a 100% compatible part number for your screen" mean?

A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.

Q: How long will I receive my goods of lcd LK520D3LZ1x ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: When will my order LK520D3LZ1x ship?

A: The order are shipped within 1-2 working days after received the payment.
