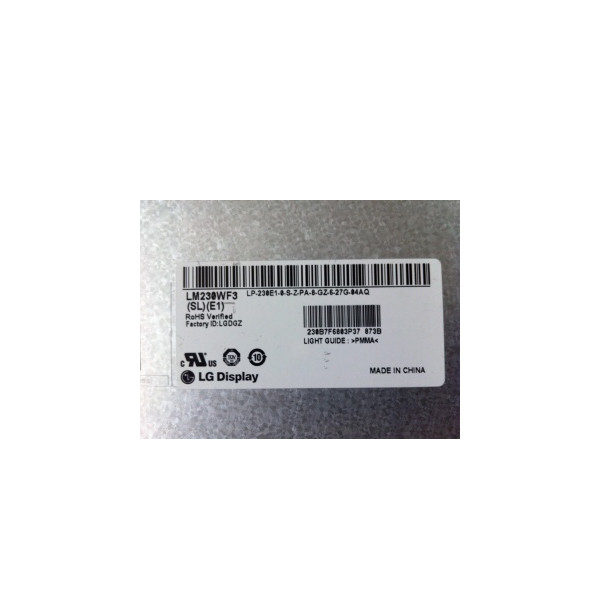

LM230WF3-SLE1 23.0 inch 1920*1080 lcd Screen with LVDS Interface
Product Details:
| Place of Origin: | China |
| Brand Name: | LG Display |
| Model Number: | LM230WF3-SLE1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LM230WF3-SLE1 | Diagonal Size: | 23.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1920(RGB)×1080, FHD 95PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 509.184(W)×286.416(H) Mm |
| Luminance: | 250 Cd/m² (Typ.) | Contrast Ratio: | 1000:1 (Typ.) (TM) |
| Designed For: | Desktop Monitor | Interface Type: | LVDS (2 Ch, 8-bit)30 Pins Connector |
Product Description
LM230WF3-SLE1 23.0 inch 1920*1080 lcd Screen with LVDS Interface
LM230WF3-SLE1 LCD Panel Product details :
| Brand | LG Display |
| Model P/N | LM230WF3-SLE1 |
| Diagonal Size | 23.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 95PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 509.184(W)×286.416(H) mm |
| Bezel Opening | 513.8(W)×291.0(H) mm |
| Outline Dim. | 533.2(W)×312(H)×11(D) mm |
| Luminance | 250 cd/m² (Typ.) |
| View Direction | Symmetry |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Support Color | 16.7M 72% NTSC |
| Weight | 2.20Kgs (Typ.) |
| Frame Rate | 60Hz |
| Treatment | Antiglare, Hard coating (3H) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Response Time | 14 (Typ.)(G to G) |
| Operating Mode | IPS, Normally Black, Transmissive |
| Light Source | WLED [17S2P] , 30K hours , W/O Driver |
| Designed For | Desktop Monitor |
| Touch Panel | Without |
| Interface Type | LVDS (2 ch, 8-bit)30 pins Connector |
| Power Supply | 5.0V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C; Storage Temperature: -20 ~ 60 °C |
LM230WF3-SLE1 LCD Panel Guarantee :
Strict Testing and Secure Packaging: Each item undergoes rigorous testing to ensure functionality and performance. We also prioritize secure packaging to safeguard the product during transit, reducing the risk of damage.
Warranty Coverage: We offer a warranty period of 2 to 6 months for every item, depending on the specific product. This warranty period provides peace of mind, allowing you to use the LCD panel confidently.
Dedicated After-Sales Support: Our commitment extends beyond the purchase. We are dedicated to resolving any potential issues or concerns you may encounter after the sale. Please don't hesitate to reach out to us for assistance and support.
We stand behind the quality of our products and strive to deliver excellent customer service throughout your experience with us.
LM230WF3-SLE1 LCD Panel Shipping and Package :
LM230WF3-SLE1 LCD Panel Payment & Shipping :
Secure Online Payment: Payment for your order is safe and straightforward. You can easily make payment online using major credit cards such as VISA or Mastercard through our platform on ALI.
Global Shipping: We provide worldwide shipping services and have successfully delivered to numerous countries, including Japan, Thailand, Russia, Ukraine, the United Kingdom, and Brazil.
Affordable Shipping Options: We offer cost-effective shipping solutions to ensure your order reaches you efficiently. Our shipping partners include DHL, UPS, TNT, EMS, and China Post Air Mail, providing you with flexibility in choosing the most suitable shipping method based on your location and preferences.
Feel confident in placing your order with us, knowing that we prioritize secure transactions and reliable global shipping services.
LM230WF3-SLE1 LCD Panel Tariffs and Fees:
No Additional Fees: We do not charge any fees for customer orders, regardless of the order size.
Customs Duties and Import Taxes: Please be aware that when the parts arrive at your local customs office, there may be tariffs, customs duties, or import taxes imposed by your country's customs authorities. It is important to note that we will not be responsible for any customs duties or import taxes incurred.
Shipping Duration: Our standard shipping method utilizes international aviation, and items are shipped from Hong Kong. The typical transit time for delivery to most regions is 7-14 working days (equivalent to 2-3 weeks).
Extended Delivery Time for Specific Regions: For certain regions such as Russia and the United Kingdom, delivery may take longer, typically ranging from 5 to 9 weeks.
Item Receipt and Contact: If you have not received your items within 30 working days (equivalent to 5 weeks) from the shipping date, we kindly ask that you contact us for assistance.
Business Hours: Our working hours are from Monday to Friday, excluding legal holidays.
LM230WF3-SLE1 LCD Panel FAQ :
Q: How can I trace my order of LM230WF3-SLE1 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can you give me a discount if I need a large quantity of LM230WF3-SLE1 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can I pay my order of LM230WF3-SLE1 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long will I receive my goods LM230WF3-SLE1 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
