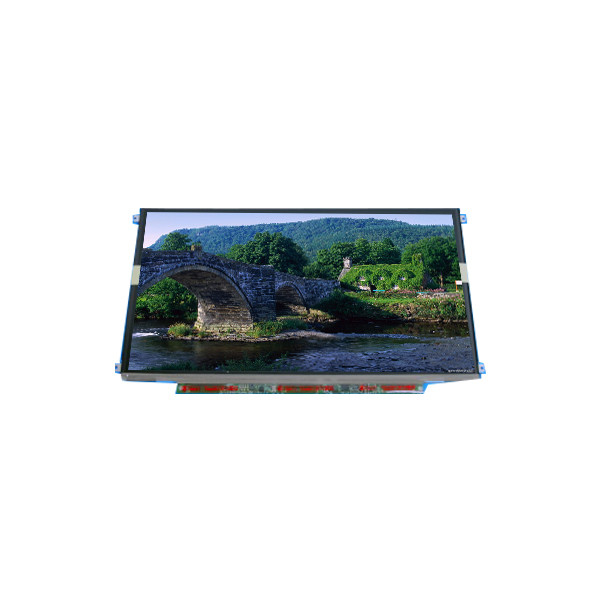

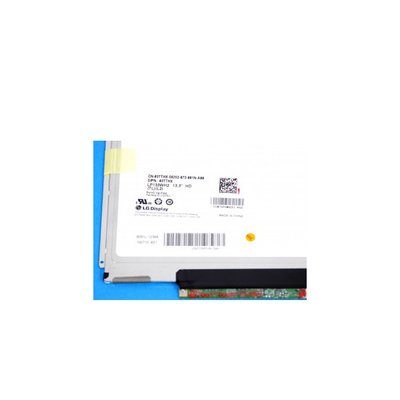

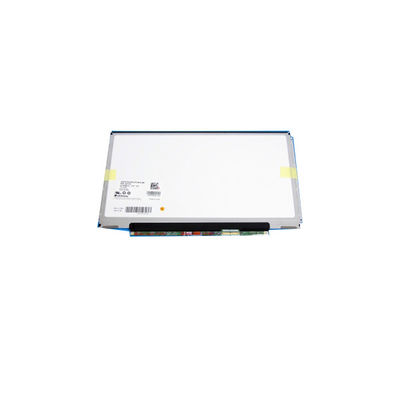

LP133WH2-TLL2 13.3 inch LCD Panel for Laptop

Brand Name:	LG
Model Number:	LP133WH2-TLL2
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LP133WH2-TLL2

Screen Size:

13.3"

Resolution:

1366(RGB)×768, WXGA 118PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

293.42(W)×164.97(H) Mm

Display Mode:

TN, Normally White, Transmissive

Display Colors:

262K 45%NTSC

Lamp Type:

9S4PWLED, 12K Hours, With LED Driver

Application:

Laptop

Frequency:

Supply Ability:

100000 Unit/Units per Month

Product Description

LP133WH2-TLL2 13.3 inch LCD Panel for Laptop

LP133WH2-TLL2 Product details :

Brand	LG Display
Model P/N	LP133WH2-TLL2
Diagonal Size	13.3"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1366(RGB)×768, WXGA 118PPI
Pixel Format	RGB Vertical Stripe
Active Area	293.42(W)×164.97(H) mm
Bezel Opening	297.42(W)×168.57(H) mm
Outline Size	314.1(W)×188.7(H)×3.6(D) mm
Treatment	Glare (Haze 0%), Hard coating (3H)
Luminance	200 cd/m² (Typ.)
Contrast Ratio	500 : 1 (Typ.) (TM)
Viewing Angle	40/40/15/30 (Min.)(CR≥10)
Response	16 (Typ.)(Tr+Td) ms
Good View at	6 o'clock
Work Mode	TN, Normally White, Transmissive
Color Depth	262K 45%NTSC
Backlight	9S4PWLED, 12K hours, With LED Driver
Outline Shape	Flat (PCBA Flat, T3.4~4.0mm)
Used for	Laptop
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	LVDS (1 ch, 6-bit), 40 pinsConnector
Voltage Supply	3.3V (Typ.)
Max. Ratings	Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
LP133WH2-TLL2 13.3 inch LCD Panel for Laptop

LP133WH2-TLL2 Why Choose Us :

According to customers' various requests,

we can match all accessories which inclusive of driver board,

touch-screen, LED backlight & LVDS cables. TFT LCD,

LCD panel, LCD display,LCD screen, LCD monitor,

LCD module from 2.2 inch to 88 inch.

Quality promised, 100% original,fast delivery,

also enjoy one year guarantee !

LP133WH2-TLL2 Shipping and Package :

LP133WH2-TLL2 13.3 inch LCD Panel for Laptop 0

1)All of our product will be testing before shipping . So you can be assured the quality of our products

2) All Panels are packed with new and firm carton, capable of long distance transportation.

3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT

4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.

LP133WH2-TLL2 Shipping:

You can track the shipment with the tracking number we give to you. If you can't get the status of your shipment or you find the status of your shipment abnormal, please feel free to contact us. We will help you check it with post office or courier and cooperate closely with you to solve the problem.

LP133WH2-TLL2 FAQ:

Q: If I order LP133WH2-TLL2 now,when will you ship the goods ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: Do you accept sample orders for LP133WH2-TLL2 ?

A: Of course!sample order is welcome !

Q: How long will I receive my goods of LP133WH2-TLL2 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: How long is the warranty of LP133WH2-TLL2 ?

A: 90 days warranty .
