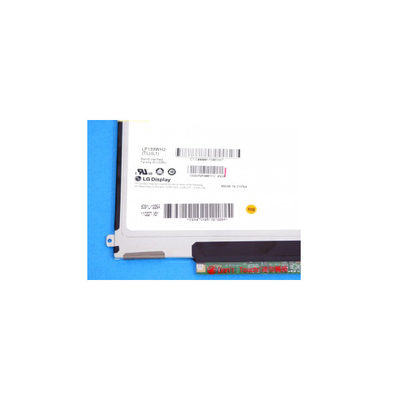

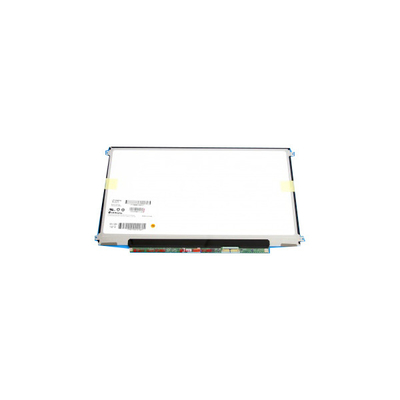

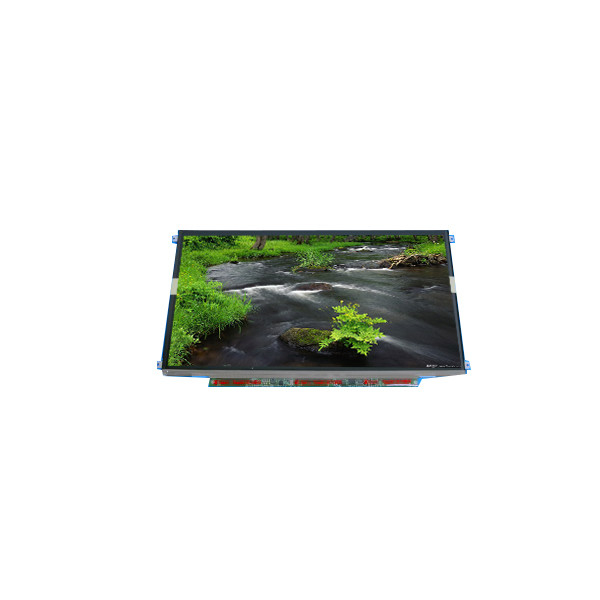

LP133WH2-TLL1 13.3 inch 1366*768 LVDS Lcd screen for Laptop
Product Details:
| Place of Origin: | China |
| Brand Name: | LG |
| Model Number: | LP133WH2-TLL1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LP133WH2-TLL1 | Screen Size: | 13.3" |
|---|---|---|---|
| Resolution: | 1366(RGB)×768, WXGA 118PPI | Pixel Format: | RGB Vertical Stripe |
| Active Area: | 293.42(W)×164.97(H) Mm | Display Mode: | TN, Normally White, Transmissive |
| Display Colors: | 262K 45%NTSC | Lamp Type: | 9S4P WLED , 12K Hours , With LED Driver |
| Application: | Laptop | Frequency: | 60Hz |
Product Description
LP133WH2-TLL1 13.3 inch 1366*768 LVDS Lcd screen for Laptop
LP133WH2-TLL1 Product details :
| Brand | LG Display |
| Model P/N | LP133WH2-TLL1 |
| Diagonal Size | 13.3" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1366(RGB)×768, WXGA 118PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 293.42(W)×164.97(H) mm |
| Bezel Opening | 297.42(W)×168.57(H) mm |
| Outline Size | 317.2(W)×188.7(H)×3.6(D) mm |
| Brightness | 200 cd/m² (Typ.) |
| Viewing Angle | 40/40/10/30 (Min.)(CR≥10) |
| Best View on | 6 o'clock |
| Display Colors | 262K 45%NTSC |
| Frequency | 60Hz |
| Shape Style | Flat (PCBA Flat, T3.4~4.0mm) |
| Surface | Glare (Haze 0%), Hard coating (3H) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 16 (Typ.)(Tr+Td) |
| Lamp Type | 9S4P WLED , 12K hours , With LED Driver |
| Touch Screen | Without |
| Application | Laptop |
| Signal Interface | LVDS (1 ch, 6-bit), 40 pinsConnector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C |
| LP133WH2-TLL1 13.3 inch 1366*768 LVDS Lcd screen for Laptop | |
LP133WH2-TLL1 Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
LP133WH2-TLL1 Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
LP133WH2-TLL1 Shipping:
You can track the shipment with the tracking number we give to you. If you can't get the status of your shipment or you find the status of your shipment abnormal, please feel free to contact us. We will help you check it with post office or courier and cooperate closely with you to solve the problem.
LP133WH2-TLL1 FAQ:
Q: How long will I receive my goods LP133WH2-TLL1 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can you give me a discount if I need a large quantity of LP133WH2-TLL1?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders of LP133WH2-TLL1 ?
A: Of course!sample order is welcome !
Q: Can You declare my order of LP133WH2-TLL1 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
