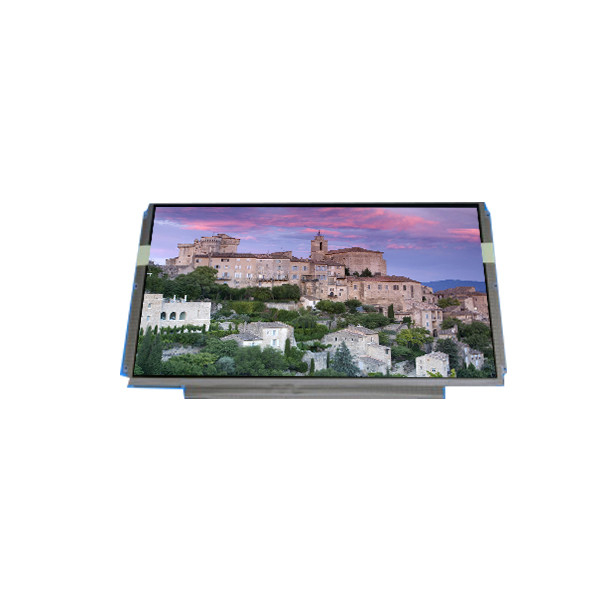

Original LP133WH2-TLB3 13.3 inch LCD screen Display panel

Brand Name:	LG
Model Number:	LP133WH2-TLB3
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LP133WH2-TLB3

Screen Size:

13.3"

Pixel Format:

1366(RGB)×768, WXGA 118PPI

Active Area:

293.42(W)×164.97(H) Mm

Outline Size:

317.9(W)×188.7(H)×3.6(D) Mm

Display Mode:

TN, Normally White, Transmissive

Display Colors:

262K 45%NTSC

Lamp Type:

WLED, 12K Hours, With LED Driver

Application:

Laptop

Frequency:

Supply Ability:

100000 Unit/Units per Month

Product Description

Original LP133WH2-TLB3 13.3 inch LCD screen Display panel

LP133WH2-TLB3 Product details :

Brand	LG Display
Model P/N	LP133WH2-TLB3
Diagonal Size	13.3"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1366(RGB)×768, WXGA 118PPI
Pixel Format	RGB Vertical Stripe
Active Area	293.42(W)×164.97(H) mm
Bezel Opening	296.62(W)×168.17(H) mm
Outline Size	317.9(W)×188.7(H)×3.6(D) mm
Surface	Antiglare (Haze 25%)
Brightness	200 cd/m² (Typ.)
Contrast Ratio	400:1 (Typ.) (TM)
Viewing Angle	45/45/15/35 (Typ.)(CR≥10)
Display Mode	TN, Normally White, Transmissive
Best View on	6 o'clock
Response Time	16 (Typ.)(Tr+Td)
Display Colors	262K 45%NTSC
Lamp Type	WLED, 12K hours, With LED Driver
Frequency	60Hz
Touch Screen	Without
Shape Style	Flat (PCBA Flat, T3.4~4.0mm)
Application	Laptop
Signal Interface	LVDS (1 ch, 6-bit), 40 pins Connector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C
Original LP133WH2-TLB3 13.3 inch LCD screen Display panel

LP133WH2-TLB3 Why Choose Us :

According to customers' various requests,

we can match all accessories which inclusive of driver board,

touch-screen, LED backlight & LVDS cables. TFT LCD,

LCD panel, LCD display,LCD screen, LCD monitor,

LCD module from 2.2 inch to 88 inch.

Quality promised, 100% original,fast delivery,

also enjoy one year guarantee !

LP133WH2-TLB3 Shipping and Package :

Original LP133WH2-TLB3 13.3 inch LCD screen Display panel 0

1)All of our product will be testing before shipping . So you can be assured the quality of our products

2) All Panels are packed with new and firm carton, capable of long distance transportation.

3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT

4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.

LP133WH2-TLB3 Shipping:

You can track the shipment with the tracking number we give to you. If you can't get the status of your shipment or you find the status of your shipment abnormal, please feel free to contact us. We will help you check it with post office or courier and cooperate closely with you to solve the problem.

LP133WH2-TLB3 FAQ:

Q: What happen if the lcd panel LP133WH2-TLB3 I received can't work ?

A: our lcd panel LP133WH2-TLB3 was tested ok before shipping .

Q: How to order lcd panel LP133WH2-TLB3 ?

A: Tell us the quantity you need ,Then we will make a PI for you to confirm the order details ,When we confirmed everything, you can arrange the payment ,After we received the payment, we will ship goods to you within 1-2day.

Q: Can you declared low value for my order lcd screen LP133WH2-TLB3 when shipping?

A: Yes, We can do it for you if you need.

Q: How long is the warranty of 13.3 inch LP133WH2-TLB3 ?

A: 90 days .
