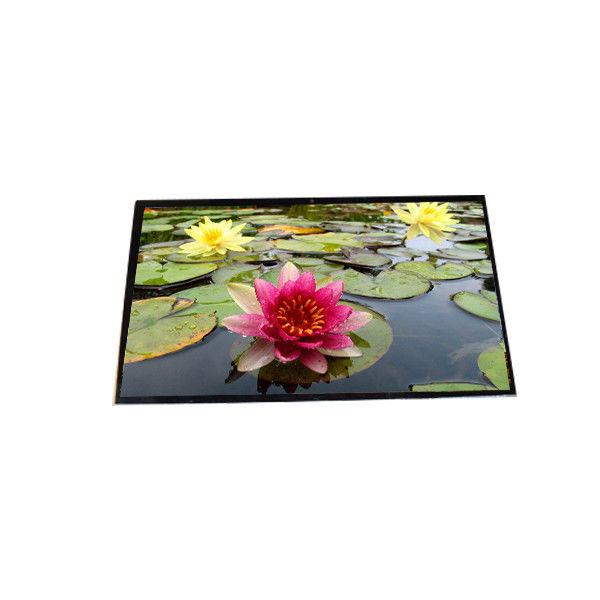

LP133WH2-TLA4 13.3 inch 1366*768 LVDS 40Pins LCD Display
Product Details:
| Place of Origin: | China |
| Brand Name: | LG |
| Model Number: | LP133WH2-TLA4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LP133WH2-TLA4 | Diagonal Size: | 13.3" |
|---|---|---|---|
| Resolution: | 1366(RGB)×768, WXGA 118PPI | Pixel Format: | RGB Vertical Stripe |
| Active Area: | 293.42(W)×164.97(H) Mm | Operating Mode: | TN, Normally White, Transmissive |
| Support Color: | 262K 45% NTSC | Light Source: | WLED , 12K Hours , With LED Driver |
| Designed For: | Laptop | Frequency: | 60Hz |
Product Description
LP133WH2-TLA4 13.3 inch 1366*768 LVDS 40Pins LCD Display
LP133WH2-TLA4 LCD Panel Product details :
| Brand | LG Display |
| Model P/N | LP133WH2-TLA4 |
| Diagonal Size | 13.3" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1366(RGB)×768, WXGA 118PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 293.42(W)×164.97(H) mm |
| Bezel Opening | 296.62(W)×168.17(H) mm |
| Outline(mm) | 317.2(W)×188.7(H)×3.6(D) |
| Luminance | 220 (Typ.)(cd/m²) |
| Viewing Angle | 40/40/10/30 (Min.)(CR≥10) |
| Good View at | 6 o'clock |
| Color Depth | 262K 45% NTSC |
| Outline Shape | Flat (PCBA Flat, T3.4~4.0mm) |
| Refresh Rate | 60Hz |
| Treatment | Glare (Haze 0%), Hard coating (3H) |
| Contrast Ratio | 500 : 1 (Min.) (TM) |
| Work Mode | TN, Normally White, Transmissive |
| Response | 16 (Typ.)(Tr+Td) ms |
| Backlight | WLED , 12K hours , With LED Driver |
| Used for | Laptop |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 6-bit), 40 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| LP133WH2-TLA4 13.3 inch 1366*768 LVDS 40Pins LCD Display | |
LP133WH2-TLA4 LCD Panel Attention:
Before placing an order for purchase, the buyer must confirm the screen model needs.
If you are not sure about the model of the screen, please contact us at the first time.
We will distinguish and prevent you from buying the wrong screen.
If the buyer's mistake let screen make the screen unusable, all the freight incurred shall be borne by the buyer.
LP133WH2-TLA4 LCD Panel Shipping and Package :
LP133WH2-TLA4 LCD Panel Shipping Information :
Shipping Agency: We utilize a reputable and efficient shipping agency known for its reliability and professionalism. Our goal is to ensure fast and secure delivery of your order.
Delivery Time: Typically, our standard delivery time ranges from 3 to 7 business days for shipments worldwide. This timeframe is subject to regional variations and potential delays beyond our control.
Additional Charges: Please note that import duties, taxes, and other related charges are not included in the item price or shipping charges. These charges, if applicable, are the responsibility of the buyer and may be assessed upon delivery by customs authorities in the destination country.
LP133WH2-TLA4 LCD Panel Return Note :
Model Confirmation: When placing an order for our LCD screen, please ensure that the model number matches exactly with the one you intend to replace. This is crucial to avoid purchasing the wrong product that may not function properly in your device.
Installation Caution: Before confirming that the screen does not work properly, refrain from using adhesive to attach our screen to your equipment. If adhesive is applied and the screen is installed, we regret that we cannot accept returns or provide refunds. This precaution is essential to ensure that our products remain in their original condition for potential troubleshooting or returns.
LP133WH2-TLA4 LCD Panel FAQ :
Q: If I place order now,when will you ship the goods of LP133WH2-TLA4 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How to make payment of LP133WH2-TLA4 ?
A: We accept T/T , Paypal , western union .
Q: Do you accept sample orders of LP133WH2-TLA4 ?
A: Of course!sample order is welcome !
Q: Can I pay my order ofLP133WH2-TLA4 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
