LCD Laptop Screen

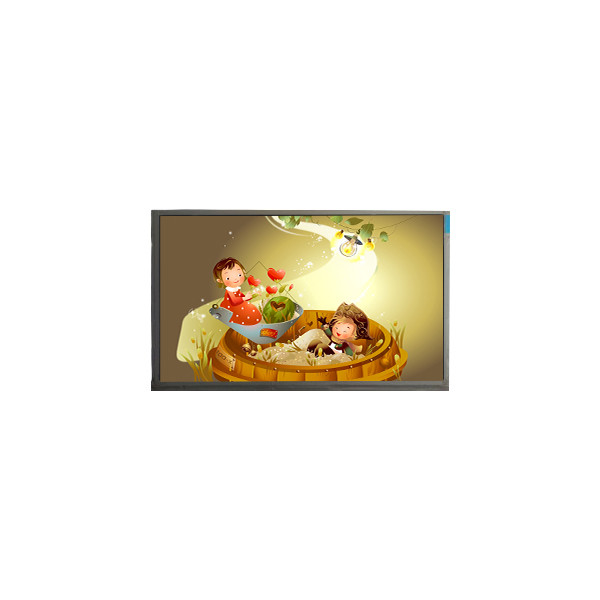

1366*768 15.6 inch BT156GW01 V.3 TFT LCD Screen Panel

All Category

Floor Standing Digital Signage

1366*768 15.6 inch BT156GW01 V.3 TFT LCD Screen Panel

Brand Name:	Innolux
Model Number:	BT156GW01 V.3
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

BT156GW01 V.3

Diagonal Size:

15.6"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1366(RGB)×768, WXGA 100PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

344.232(W)×193.536(H) Mm

Touch Screen:

Without

Application:

Laptop

Supply Ability:

100000 Unit/Units per Month

Product Description

1366*768 15.6 inch BT156GW01 V.3 TFT LCD Screen Panel

BT156GW01 V.3 LCD Panel Product details :

Brand	Innolux
Model P/N	BT156GW01 V.3
Diagonal Size	15.6"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1366(RGB)×768, WXGA 100PPI
Pixel Format	RGB Vertical Stripe
Active Area	344.232(W)×193.536(H) mm
Bezel Opening	348.43(W)×197.1(H) mm
Outline Dim.	359.3(H)×209.5(V)×5.5(D) mm
Treatment	Glare (Haze 0%), Hard coating (3H)
Luminance	200 cd/m² (Typ.)
Contrast Ratio	600:1 (Typ.) (TM)
View Direction	6 o'clock
Response Time	8 (Typ.)(Tr+Td)
Viewing Angle	40/40/15/30 (Min.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	262K 60%NTSC
Light Source	WLED, 15K hours, With LED Driver
Form Style	Wedge (PCBA Bent, T≥5.2mm)
Designed For	Laptop
Frame Rate	60Hz
Touch Panel	Without
Interface Type	LVDS (1 ch, 6-bit), 40 pinsConnector
Power Supply	3.3V (Typ.)
Environment	Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

BT156GW01 V.3 Pre-Order Check:

Before proceeding with your order, kindly verify if your machine model is compatible with this specific LCD screen. If you're uncertain, please reach out to us, and we'll promptly assist you.

Note:

Some of the screen backplates may not be entirely new, potentially showing signs of dirt or adhesive residue. Please take note of this!

BT156GW01 V.3 LCD Panel Shipping and Package :

BT156GW01 V.3 Shipping Information:

Please ensure that the model you've ordered matches exactly with the model you require. We will ship according to the model specified in your order.

Verify that the shipping address provided is accurate. Shipments will be sent to the address listed on the order. If you need delivery to a different address, please email us immediately after making the payment.

Shipments will be processed within 3 business days of receiving payment.

Each LCD panel undergoes rigorous testing before shipping, ensuring quality. Additionally, we take utmost care in packaging to ensure safe delivery.

LCD screens will be shipped using EMS/DHL/UPS based on location or customer preference.

Attention to Russian Customers:

For shipments to Russia, we can only use EMS. Please note that EMS delivery typically takes longer to arrive. We appreciate your patience during this time.

BT156GW01 V.3 About the Goods:

Upon receiving your item, please confirm receipt. In the event that the item is damaged, kindly contact us immediately. Send us a photo of the damage so we can assess the situation and offer you the best solution.

While we guarantee timely delivery, please note that we do not have control over the express delivery time. Our dedicated sales staff will dispatch the Air Waybill (AWB) for your delivered goods on the following business day. You can track the AWB on the designated website provided to you. Alternatively, you can inquire about the AWB by contacting your local branch of the courier company handling the shipment.

BT156GW01 V.3 LCD Panel FAQ :

Q: How long is the warranty ?

A: We offer 90days warranty .

Q: Can You declare my order of BT156GW01 V.3 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: Can I pay my order of BT156GW01 V.3 via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: How can I trace my order of BT156GW01 V.3 ?

A: we will give you tracking number then you can trace your order from website.
