15.6 inch BT156GW01 V.2 1366*768 LCD Screen Monitor

Brand Name:	Innolux
Model Number:	BT156GW01 V.2
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Supply Ability:

100000 Unit/Units per Month

Product Description

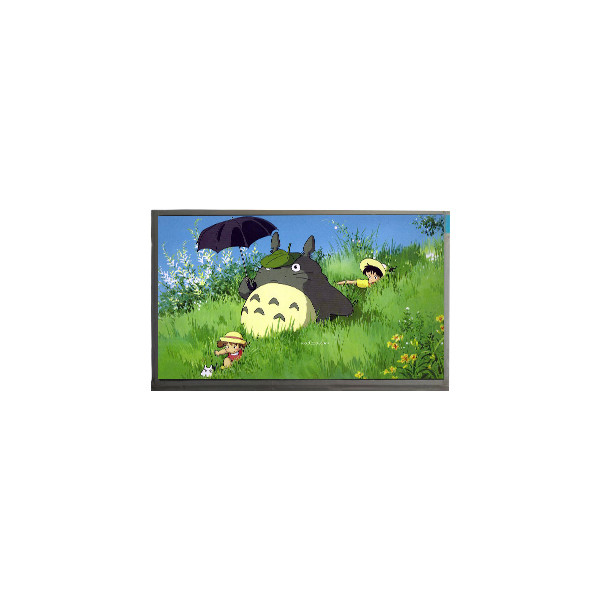

15.6 inch BT156GW01 V.2 1366*768 LCD Screen Monitor

BT156GW01 V.2 LCD Panel Product details :

Brand	Innolux
Model P/N	BT156GW01 V.2
Diagonal Size	15.6"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1366(RGB)×768, WXGA 100PPI
Pixel Format	RGB Vertical Stripe
Active Area	344.232(W)×193.536(H) mm
Bezel Opening	348.43(W)×197.1(H) mm
Outline(mm)	359.3(W)×209.5(H)×5.5(D)
Luminance	220 (Typ.)(cd/m²)
Viewing Angle	40/40/15/30 (Min.)(CR≥10)
Good View at	6 o'clock
Color Depth	262K 60% NTSC
Outline Shape	Wedge (PCBA Bent, T≥5.2mm)
Refresh Rate	60Hz
Treatment	Glare (Haze 0%), Hard coating (3H)
Contrast Ratio	600 : 1 (Typ.) (TM)
Work Mode	TN, Normally White, Transmissive
Response	8 (Typ.)(Tr+Td) ms
Backlight	9S6P WLED , 15K hours , With LED Driver
Used for	Laptop
Touchscreen	Without
Signal Type	LVDS (1 ch, 6-bit), 40 pins Connector
Voltage Supply	3.3V (Typ.)
Max. Ratings	Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C

BT156GW01 V.2 Pre-Order Check:

Before proceeding with your order, kindly verify if your machine model is compatible with this specific LCD screen. If you're uncertain, please reach out to us, and we'll promptly assist you.

Note:

Some of the screen backplates may not be entirely new, potentially showing signs of dirt or adhesive residue. Please take note of this!

BT156GW01 V.2 LCD Panel Shipping and Package :

BT156GW01 V.2 Shipping Information:

Please ensure that the model you've ordered matches exactly with the model you require. We will ship according to the model specified in your order.

Verify that the shipping address provided is accurate. Shipments will be sent to the address listed on the order. If you need delivery to a different address, please email us immediately after making the payment.

Shipments will be processed within 3 business days of receiving payment.

Each LCD panel undergoes rigorous testing before shipping, ensuring quality. Additionally, we take utmost care in packaging to ensure safe delivery.

LCD screens will be shipped using EMS/DHL/UPS based on location or customer preference.

Attention to Russian Customers:

For shipments to Russia, we can only use EMS. Please note that EMS delivery typically takes longer to arrive. We appreciate your patience during this time.

BT156GW01 V.2 About the Goods:

Upon receiving your item, please confirm receipt. In the event that the item is damaged, kindly contact us immediately. Send us a photo of the damage so we can assess the situation and offer you the best solution.

While we guarantee timely delivery, please note that we do not have control over the express delivery time. Our dedicated sales staff will dispatch the Air Waybill (AWB) for your delivered goods on the following business day. You can track the AWB on the designated website provided to you. Alternatively, you can inquire about the AWB by contacting your local branch of the courier company handling the shipment.

BT156GW01 V.2 LCD Panel FAQ :

Q: How long is the warranty of BT156GW01 V.2 ?

A: 90days warranty .

Q: Can you give me a discount if I need a large quantity of BT156GW01 V.2 ?

A: Of course!If you make a large order, we will give you a discount.

Q: How can I trace my order of BT156GW01 V.2 ?

A: we will give you tracking number then you can trace your order from website.

Q: Can I pay my goods BT156GW01 V.2 by credit card ?

A: Yes!you can use your credit card through your Paypal account.
