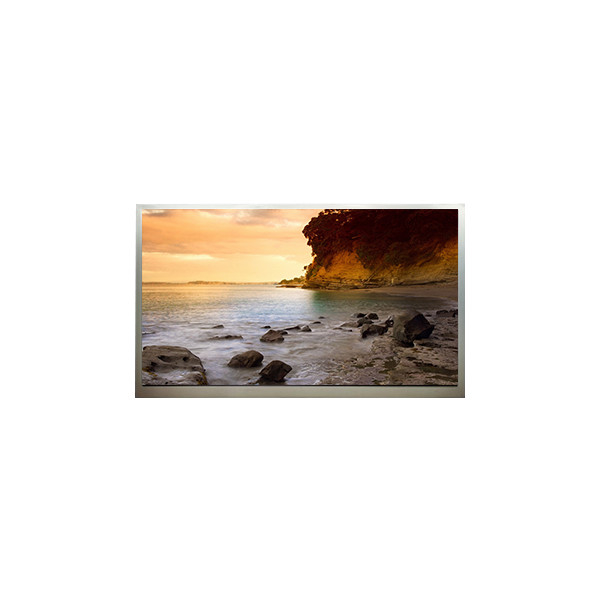

S201P1 20.1 inch 1400*1050 LCD Screen 60Hz LCD Display

Brand Name:	CMO
Model Number:	S201P1
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

S201P1

Diagonal Size:

20.1"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1400(RGB)×1050, SXGA+ 87PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

408.24(W)×306.18(H) Mm

Touch Screen:

Without

Application:

Desktop Monitor

Supply Ability:

100000 Unit/Units per Month

Product Description

S201P1 20.1 inch 1400*1050 LCD Screen 60Hz LCD Display

S201P1 LCD Panel Product details :

Brand	CMO
Model P/N	S201P1
Diagonal Size	20.1"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1400(RGB)×1050, SXGA+ 87PPI
Pixel Format	RGB Vertical Stripe
Active Area	408.24(W)×306.18(H) mm
Bezel Opening	413.0(W)×311.0(H) mm
Outline Dim.	432(H)×331.5(V)×17(D) mm
Treatment	Antiglare (Haze 25%), Hard coating (3H)
Luminance	300 cd/m² (Typ.)
Contrast Ratio	700:1 (Typ.) (TM)
View Direction	-
Response Time	2/6 (Typ.)(Tr/Td)
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	16.2M 68%NTSC
Light Source	CCFL [4 pcs], W/O Driver
Weight	2.90Kgs (Max.)
Designed For	Desktop Monitor
Frame Rate	60Hz
Touch Panel	Without
Interface Type	RSDS (2 Channel), 72 pinsConnector
Power Supply	3.3/5.0/12.0V (Typ.)(VDD/V5A/Vin)
Environment	Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

S201P1 Pre-Order Check:

Before proceeding with your order, kindly verify if your machine model is compatible with this specific LCD screen. If you're uncertain, please reach out to us, and we'll promptly assist you.

Note:

Some of the screen backplates may not be entirely new, potentially showing signs of dirt or adhesive residue. Please take note of this!

S201P1 LCD Panel Shipping and Package :

S201P1 Shipping Information:

Please ensure that the model you've ordered matches exactly with the model you require. We will ship according to the model specified in your order.

Verify that the shipping address provided is accurate. Shipments will be sent to the address listed on the order. If you need delivery to a different address, please email us immediately after making the payment.

Shipments will be processed within 3 business days of receiving payment.

Each LCD panel undergoes rigorous testing before shipping, ensuring quality. Additionally, we take utmost care in packaging to ensure safe delivery.

LCD screens will be shipped using EMS/DHL/UPS based on location or customer preference.

Attention to Russian Customers:

For shipments to Russia, we can only use EMS. Please note that EMS delivery typically takes longer to arrive. We appreciate your patience during this time.

S201P1 About the Goods:

Upon receiving your item, please confirm receipt. In the event that the item is damaged, kindly contact us immediately. Send us a photo of the damage so we can assess the situation and offer you the best solution.

While we guarantee timely delivery, please note that we do not have control over the express delivery time. Our dedicated sales staff will dispatch the Air Waybill (AWB) for your delivered goods on the following business day. You can track the AWB on the designated website provided to you. Alternatively, you can inquire about the AWB by contacting your local branch of the courier company handling the shipment.

S201P1 LCD Panel FAQ :

Q: How long is the warranty of S201P1 ?

A: 90days warranty .

Q: Can you give me a discount if I need a large quantity of S201P1 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Do you accept sample orders for S201P1 ?

A: Of course!sample order is welcome !

Q: How long will I receive my goods of S201P1 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
