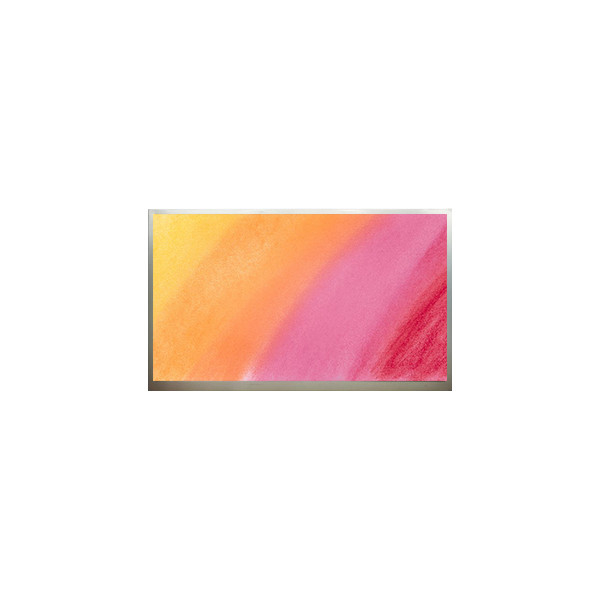

1366*768 11.6 inch N116B6-P02 Laptop LCD Screen Monitor
Product Details:
Place of Origin: | China |
Brand Name: | CMO |
Model Number: | N116B6-P02 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | N116B6-P02 | Diagonal Size: | 11.6" |
---|---|---|---|
Panel Type: | A-Si TFT-LCD, CELL, FOB | Resolution: | 1366(RGB)×768, WXGA 135PPI |
Pixel Format: | RGB Vertical Stripe | Active Area: | 256.125(W)×144(H) Mm |
Touch Screen: | Without | Application: | Laptop、Netbook PC |
Product Description
1366*768 11.6 inch N116B6-P02 Laptop LCD Screen Monitor
N116B6-P02 LCD Panel Product details :
Brand | CMO |
Model P/N | N116B6-P02 |
Diagonal Size | 11.6" |
Panel Type | a-Si TFT-LCD, CELL, FOB |
Resolution | 1366(RGB)×768, WXGA 135PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 256.125(W)×144(H) mm |
Bezel Opening | - |
Outline Dim. | 264.73(W)×153.9(H)×1.27(D) mm |
Treatment | Glare (Haze 0%), Hard coating (3H) |
Luminance | 0 cd/m² |
Contrast Ratio | 500:1 (Typ.) (TM) |
View Direction | 6 o'clock |
Response Time | 3/7 (Typ.)(Tr/Td) |
Viewing Angle | 45/45/20/45 (Typ.)(CR≥10) |
Operating Mode | TN, Normally White, Transmissive |
Plate Thickness | 0.50+0.50 mm |
Transmittance | - |
Support Color | 262K 43%NTSC |
Light Source | No B/L |
Form Style | - |
Designed For | Laptop,Netbook PC |
Frame Rate | 60Hz |
Touch Panel | Without |
D-IC Detail | COG Built-in 5 source + 1 gate chips |
Interface Type | LVDS (1 ch, 6-bit), 40 pinsConnector |
Power Supply | 3.3V (Typ.) |
Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
N116B6-P02 LCD Panel Shipping and Package :
Q: How to order N116B6-P02 ?
A: We accept T/T , PAYPAL , WESTERN UNION.
Q: When will ship my order of N116B6-P02 ?
A: The order are shipped within 1-2 working days after received the payment.
Q: Can you test lcd panel N116B6-P02 before shipping ?
A: Don't Worry , Our lcd N116B6-P02 was tested ok before shipping.
Q: Can you declared low value for my order lcd pane N116B6-P02 ?
A: Yes we can , but you need to leave message to us before shipping .
