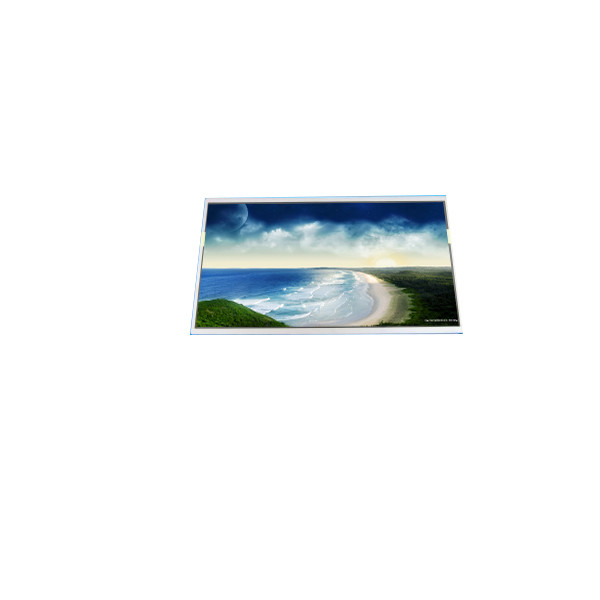

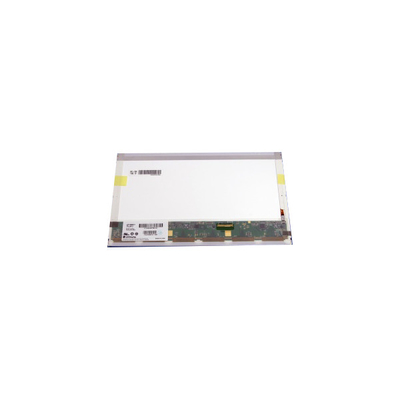

LP133WH1-TLA1 LCD Screen 13.3 inch Laptop LCD Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | LG |
| Model Number: | LP133WH1-TLA1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LP133WH1-TLA1 | Diagonal Size: | 13.3" |
|---|---|---|---|
| Resolution: | 1366(RGB)×768, WXGA 118PPI | Pixel Format: | RGB Vertical Stripe |
| Active Area: | 293.42(W)×164.97(H) Mm | Operating Mode: | TN, Normally White, Transmissive |
| Support Color: | 262K 45%NTSC | Light Source: | WLED, 12K Hours, With LED Driver |
| Designed For: | Laptop | Frequency: | 60Hz |
Product Description
LP133WH1-TLA1 LCD Screen 13.3 inch Laptop LCD Panel
LP133WH1-TLA1 LCD Panel Product details :
| Brand | LG Display |
| Model P/N | LP133WH1-TLA1 |
| Diagonal Size | 13.3" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1366(RGB)×768, WXGA 118PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 293.42(W)×164.97(H) mm |
| Bezel Opening | 299.5(W)×168.4(H) mm |
| Outline Size | 307.6(W)×183.1(H)×5.5(D) mm |
| Surface | Glare (Haze 0%), Hard coating (3H) |
| Brightness | 200 cd/m² (Typ.) |
| Contrast Ratio | 300:1 (Min.) (TM) |
| Viewing Angle | 40/40/10/30 (Min.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 16 (Typ.)(Tr+Td) |
| Display Colors | 262K 45%NTSC |
| Lamp Type | WLED, 12K hours, With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Shape Style | Wedge (PCBA Bent, T≥5.2mm) |
| Application | Laptop |
| Signal Interface | LVDS (1 ch, 6-bit), 40 pinsConnector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| LP133WH1-TLA1 LCD Screen 13.3 inch Laptop LCD Panel | |
LP133WH1-TLA1 LCD Panel Attention:
Before placing an order for purchase, the buyer must confirm the screen model needs.
If you are not sure about the model of the screen, please contact us at the first time.
We will distinguish and prevent you from buying the wrong screen.
If the buyer's mistake let screen make the screen unusable, all the freight incurred shall be borne by the buyer.
LP133WH1-TLA1 LCD Panel Shipping and Package :
LP133WH1-TLA1 LCD Panel Shipping Information :
Shipping Agency: We utilize a reputable and efficient shipping agency known for its reliability and professionalism. Our goal is to ensure fast and secure delivery of your order.
Delivery Time: Typically, our standard delivery time ranges from 3 to 7 business days for shipments worldwide. This timeframe is subject to regional variations and potential delays beyond our control.
Additional Charges: Please note that import duties, taxes, and other related charges are not included in the item price or shipping charges. These charges, if applicable, are the responsibility of the buyer and may be assessed upon delivery by customs authorities in the destination country.
LP133WH1-TLA1 LCD Panel Return Note :
Model Confirmation: When placing an order for our LCD screen, please ensure that the model number matches exactly with the one you intend to replace. This is crucial to avoid purchasing the wrong product that may not function properly in your device.
Installation Caution: Before confirming that the screen does not work properly, refrain from using adhesive to attach our screen to your equipment. If adhesive is applied and the screen is installed, we regret that we cannot accept returns or provide refunds. This precaution is essential to ensure that our products remain in their original condition for potential troubleshooting or returns.
LP133WH1-TLA1 LCD Panel FAQ :
Q: How long will I receive my goods LP133WH1-TLA1 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Can You declare my order of LP133WH1-TLA1 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long will I receive my goods LP133WH1-TLA1 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Want to Know more details about this product
