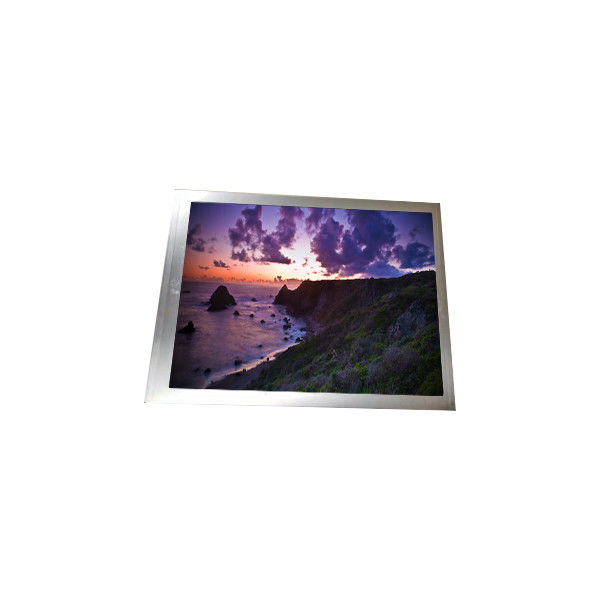

9.0 inch F090A01-601 800*480 LCD Screen for Automotive Display

Brand Name:	Innolux
Model Number:	F090A01-601
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

F090A01-601

Diagonal Size:

Panel Type:

A-Si TFT-LCD, CELL , Q-CUT (Full Cell)

Resolution:

800(RGB)×480, WVGA 104PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

198(W)×111.696(H) Mm

View Direction:

6 O'clock

Application:

Automotive Display

Support Color:

16.7M 48% NTSC

Operating Mode:

TN, Normally White, Transmissive

Supply Ability:

100000 Unit/Units per Month

Highlight:

F090A01-601 LCD Screen

9.0 inch LCD Screen

F090A01-601

Product Description

9.0 inch F090A01-601 800*480 LCD Screen for Automotive Display

F090A01-601 LCD Panel Product details :

Brand	Innolux
Model P/N	F090A01-601
Diagonal Size	9.0"
Panel Type	a-Si TFT-LCD, CELL , Q-CUT (Full Cell)
Resolution	800(RGB)×480, WVGA 104PPI
Pixel Format	RGB Vertical Stripe
Active Area	198(W)×111.696(H) mm
Bezel Opening	-
Outline Dim.	206.7(W)×122.93(H)×1(D) mm
Treatment	-
Luminance	0 cd/m²
Contrast Ratio	800:1 (Typ.) (TM)
View Direction	6 o'clock
Response Time	800:1 (Typ.) (TM)
Viewing Angle	80/80/70/80 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Plate Thickness	0.50+0.50 mm
Transmittance	6.79% (Typ.)
Support Color	16.7M 48% NTSC
Light Source	No B/L
Weight	-
Designed For	Automotive Display
Frame Rate	-
Touch Panel	Without
D-IC Detail	COG Suggest EK79713+EK73202, NT39419+NT52001, HX8264+HX8664, LI6137+ILI5960
Environment	Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 90 °C

F090A01-601 Pre-Order Check:

Before proceeding with your order, kindly verify if your machine model is compatible with this specific LCD screen. If you're uncertain, please reach out to us, and we'll promptly assist you.

Note:

Some of the screen backplates may not be entirely new, potentially showing signs of dirt or adhesive residue. Please take note of this!

F090A01-601 LCD Panel Shipping and Package :

F090A01-601 Shipping Information:

Please ensure that the model you've ordered matches exactly with the model you require. We will ship according to the model specified in your order.

Verify that the shipping address provided is accurate. Shipments will be sent to the address listed on the order. If you need delivery to a different address, please email us immediately after making the payment.

Shipments will be processed within 3 business days of receiving payment.

Each LCD panel undergoes rigorous testing before shipping, ensuring quality. Additionally, we take utmost care in packaging to ensure safe delivery.

LCD screens will be shipped using EMS/DHL/UPS based on location or customer preference.

Attention to Russian Customers:

For shipments to Russia, we can only use EMS. Please note that EMS delivery typically takes longer to arrive. We appreciate your patience during this time.

F090A01-601 About the Goods:

Upon receiving your item, please confirm receipt. In the event that the item is damaged, kindly contact us immediately. Send us a photo of the damage so we can assess the situation and offer you the best solution.

While we guarantee timely delivery, please note that we do not have control over the express delivery time. Our dedicated sales staff will dispatch the Air Waybill (AWB) for your delivered goods on the following business day. You can track the AWB on the designated website provided to you. Alternatively, you can inquire about the AWB by contacting your local branch of the courier company handling the shipment.

F090A01-601 LCD Panel FAQ :

Q: How long will I receive my goods F090A01-601 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: Can you give me a discount if I need a large quantity of F090A01-601 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Can You declare my order of F090A01-601 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: How long is the warranty ?

A: We offer 90days warranty .
